Programming Console Function Section 6-12
6-12-3 Method of Use
The Programming Console screen is displayed by operating the system menu
as described below.
*1
With the CS1G/CS1H, the Programming Console function cannot be used
simultaneously at both the built-in RS-232C port and peripheral port.
Reference: When an error screen is displayed, the system menu can be displayed by
pressing two of the four corners of the touch panel simultaneously. The Check
touch switch on the screen can also be used to display the system menu, but
it will not work unless the cause of the error has been removed. If the system
menu is not displayed when the Check touch switch is pressed, press two of
the four corners of the touch panel to return to the system menu.

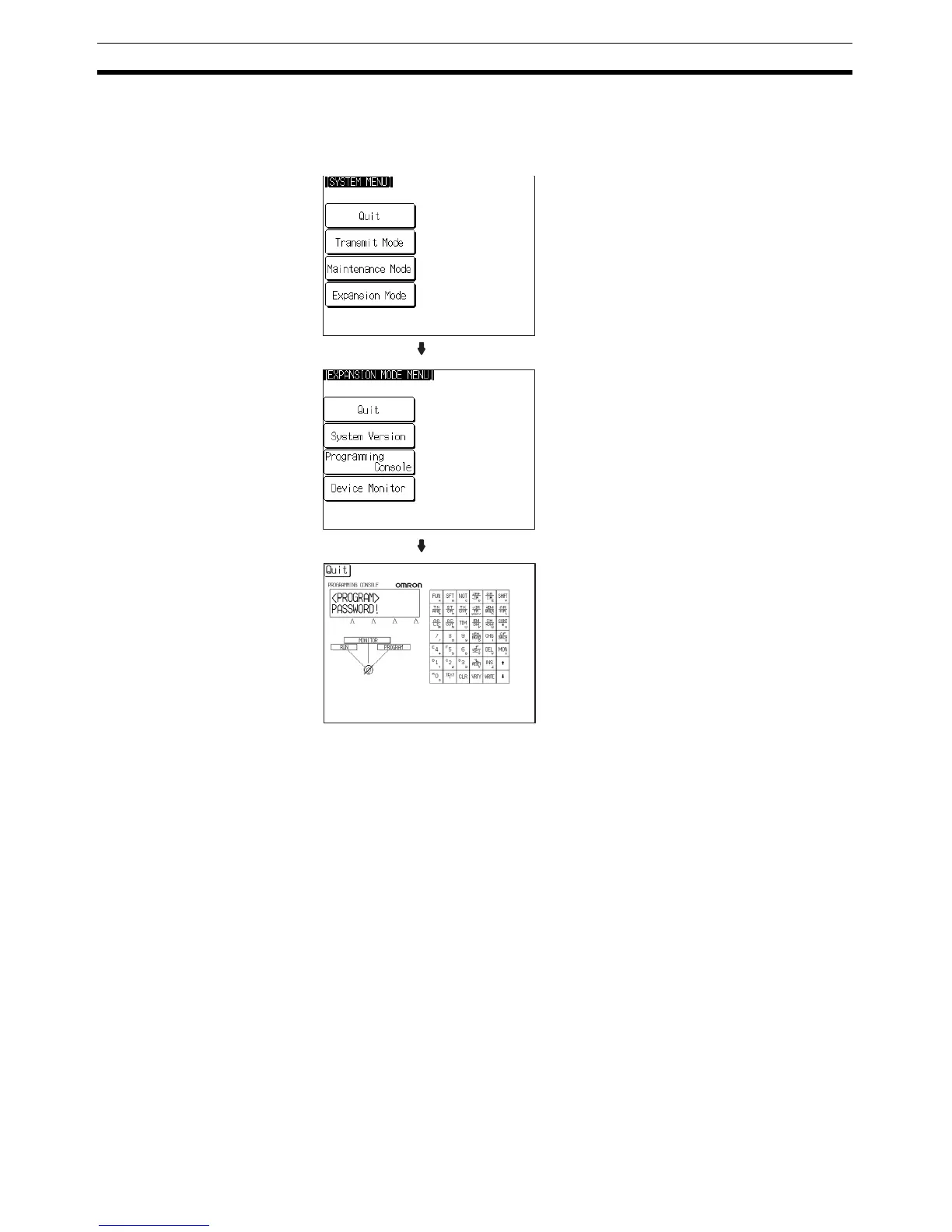

Select Expansion Mode.
Select Programming Console.
Ver 4.12
The Programming Console screen is
displayed.
Press the Programming Console sheet
keys (touch switches) for the operation.
Press the Quit touch switch to exit the
screen.
An error is displayed if a wrong
communications protocol is selected or a
Programming Console is connected to
the peripheral port.
(*1)
To Next Page
