33
Connecting to the Support Tool Section 3-2
3-2 Connecting to the Support Tool
In order to install the system program in the NT31/NT31C, or to transmit
screen data created with the Support Tool to the NT31/NT31C, the NT31/
NT31C must be connected to a personal computer with an RS-232C cable.

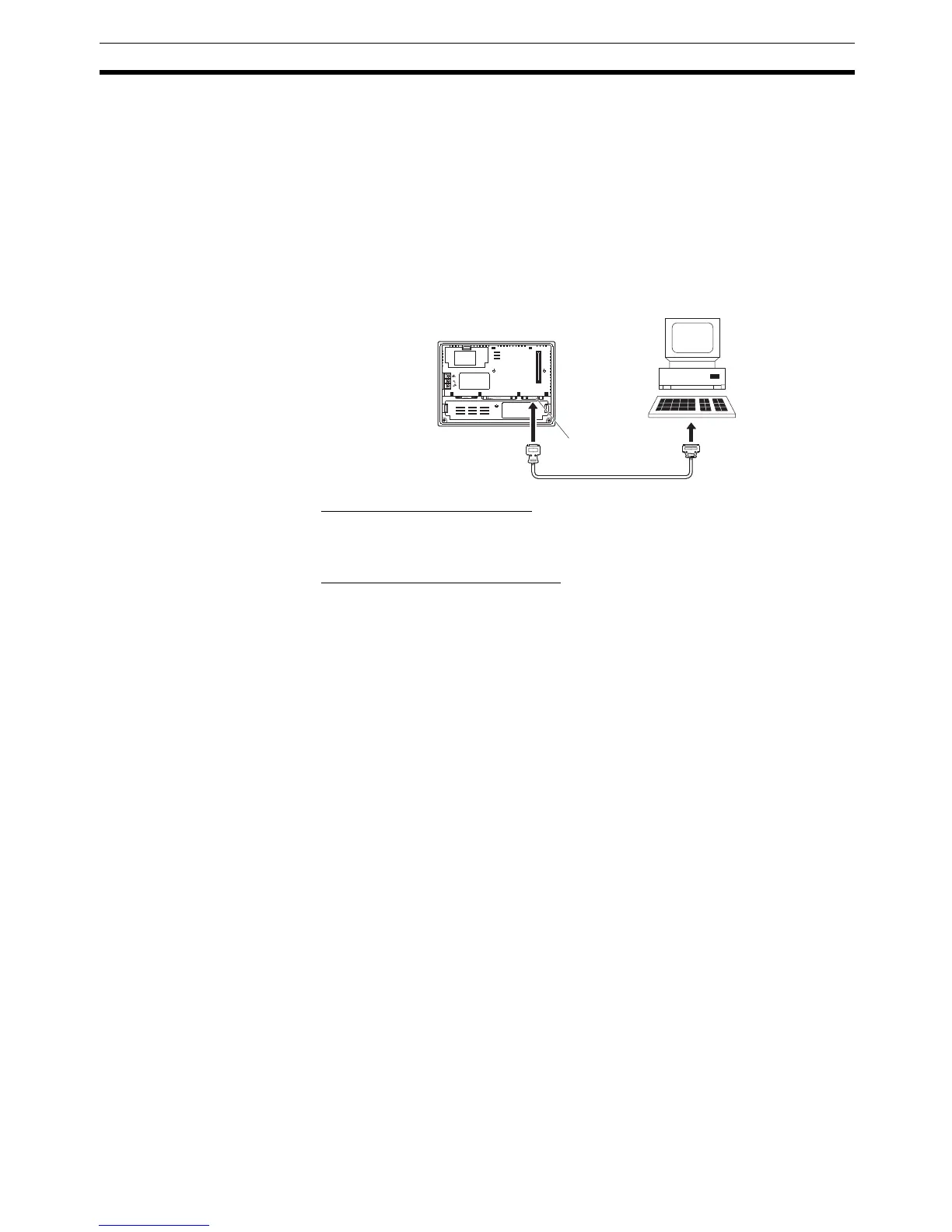

The NT31/NT31C connects the RS-232C cable from a personal computer at
serial port A. When the host is connected at serial port B, the connection with
the host can be maintained as it is while the NT31/NT31C is connected to the
RS-232C cable from a personal computer.
However, when a bar code reader is being used, it must be disconnected, so
that the RS-232C cable can be connected, since they both use serial port A.
Communications Conditions
The communications conditions are automatically set when the system
installer and Support Tool are started.
Recommended Connector Cable
Use the cable indicated below.
• CV500-CN228 (length: 2 m), made by OMRON
(D-SUB 9-pin, male
⇔ D-SUB 25-pin, male)
• XW2Z-S001 (conversion cable), made by OMRON
(D-SUB 25-pin, female
⇔ half pitch 14-pin, male)
• XW2Z-S002 (length: 2 m), made by OMRON
(D-SUB 9-pin, male
⇔ D-SUB 9-pin, female)
For details on making a connector cable, refer to Appendix F Making the
Cable for Connecting a PLC.
PRINTER PORT B PORT A
Serial port A
(RS-232C, 9-pin)
To Next Page
