228
Version Display Section 6-14
6-13-3 Method of Use
The Device Monitor screen is displayed by operating the system menu as
described below.
Reference: When an error screen is displayed, the system menu can be displayed by
pressing two of the four corners of the touch panel simultaneously. The Check
touch switch on the screen can also be used to display the system menu, but
it will not work unless the cause of the error has been removed. If the system
menu is not displayed when the Check touch switch is pressed, press two of
the four corners of the touch panel to return to the system menu.
For more details on operations of the Device Monitor function, refer to 2-16
Device Monitor Function in the Reference Manual.
6-14 Version Display
Use the Version Display function to check the version of the NT31/NT31C’s
system program. The Version Display screen shows the model, creation date,
and version of the system program installed in the NT31/31C.

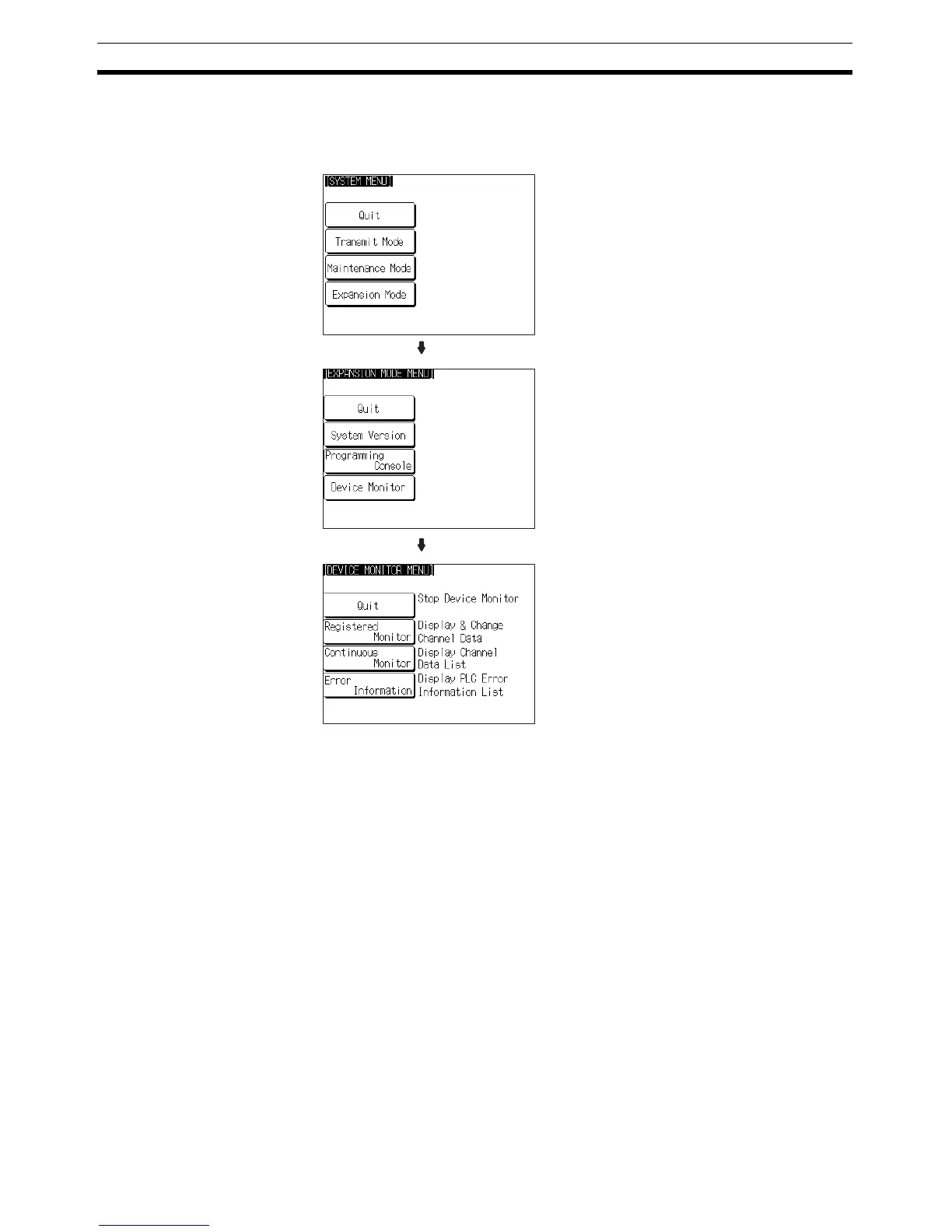

Select Expansion Mode.
Select Device Monitor.
The Device Monitor screen is displayed.
Ver 4.12
An error message will be displayed if
the wrong communications protocol is
selected.
To Next Page
