Omron R88D-1SN ECT Series User Manual

2 - 99
2 Models and External Dimensions
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
2-4 External and Mounting Dimensions
2
2-4-3 Cable Outlet Direction

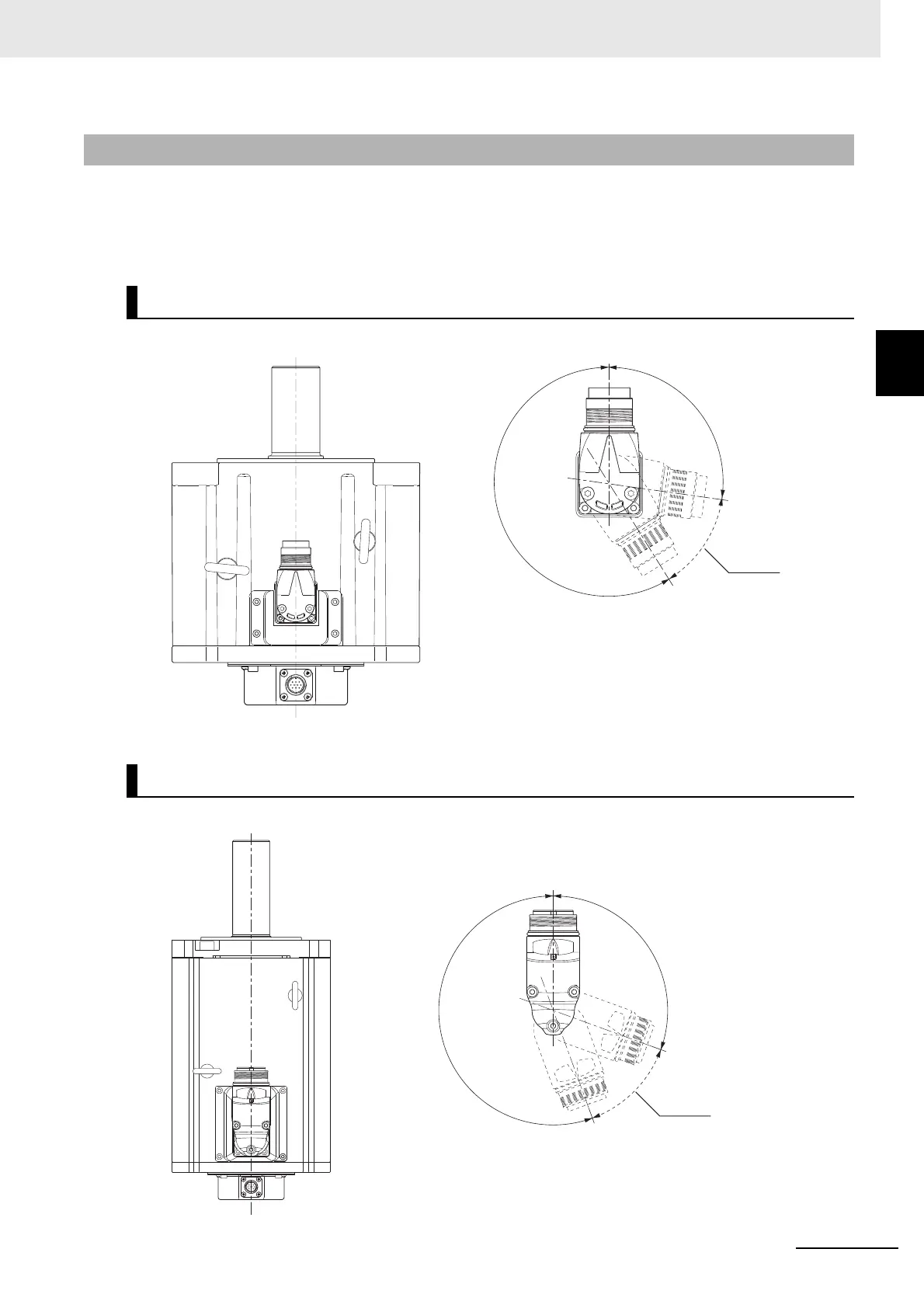

The cable outlet direction of the Servomotor for connector type M23 or M40 can be selected. The below
shows the selectable range. The change of the cable outlet direction shall be up to five times. For a pro-
cedure of the change of the cable outlet direction, refer to 4-2-4 Procedure for Change of Cable Outlet
Direction for Connector Type M23 or M40 on page 4-44.
2-4-3 Cable Outlet Direction
Cable Outlet Direction for Connector Type M23
Cable Outlet Direction for Connector Type M40
Base line
Base line
212°
Dead angle:
50° max.
98°
Servomotors direction
Movable range:
Movable range:
Base line
Base line
200°
Dead angle:
50° max.
110°
Servomotors direction
Movable range:
Movable range:
