1 Features and System Configuration
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
1-3 Names and Functions
1
1-3-3 Servomotor Part Names

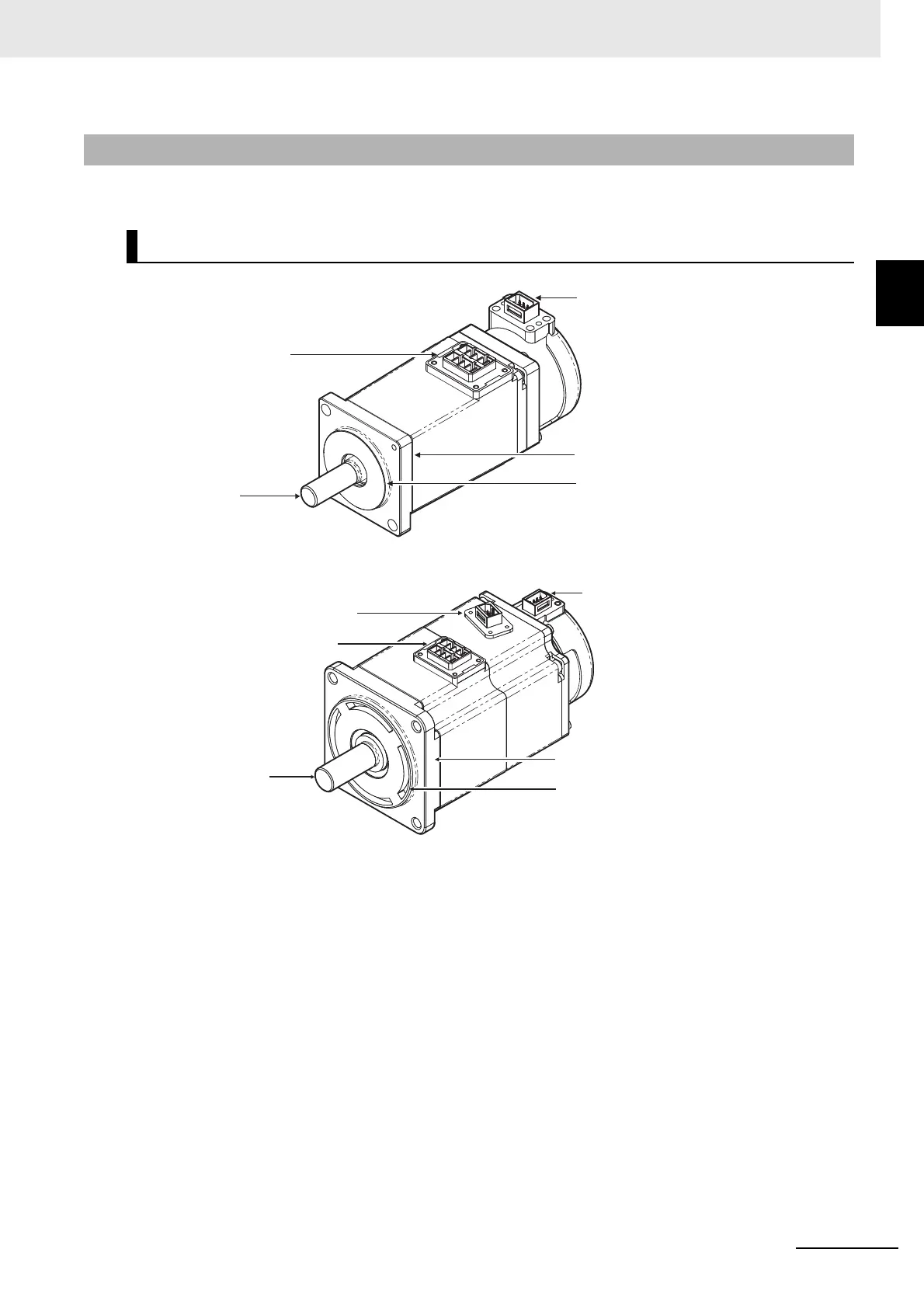

The Servomotor part names are given below.
1-3-3 Servomotor Part Names
Flange Size of 80 × 80 or less
Flange
Mating part
Encoder
Connector
Power
Connector
Shaft
100 VAC 100 W Servomotors (without Brake)
Brake connector
Power connector
Shaft
Encoder
connector
Flange
Mating part
200 VAC 200 W Servomotors (with Brake)
