AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
2-2 How to Read Model Numbers
2
2-2-4 Motor Power Cable without Brake Wire

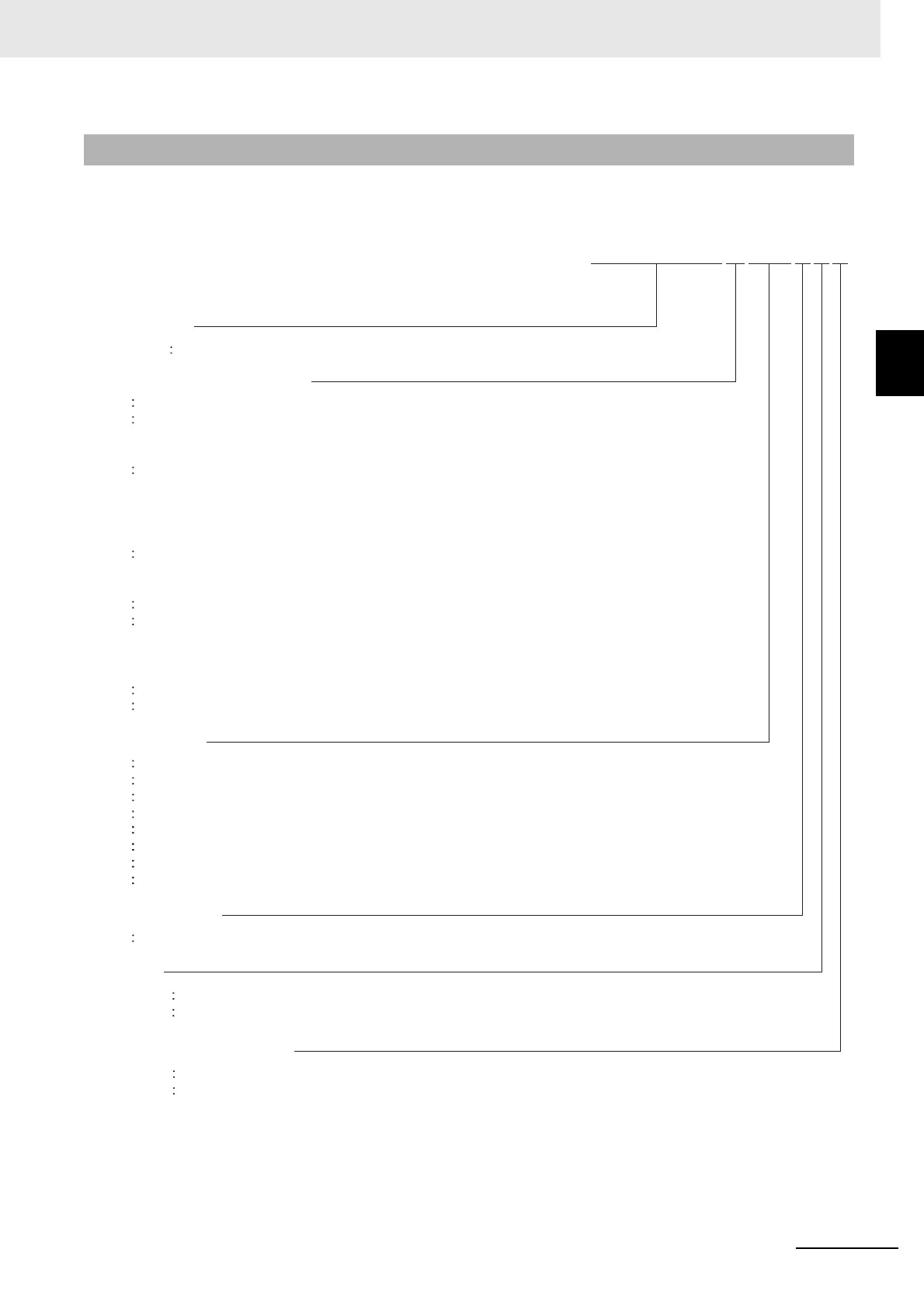

The cable model number tells the cable type, applicable Servomotor type, cable length, connector type,
etc.
*1. Only for Applicable Servomotor type A to F.
*2. Only for Applicable Servomotor type A.
2-2-4 Motor Power Cable without Brake Wire
A
B
C
E
F
H
J
K
003
005
010
015
020
030
040
050
S
R88A-CA1A003SFR
3 m
5 m
10 m
15 m
20 m
30 m
*1
40 m
*1
50 m
*1
R88A-CA1
Others
Connector type
Applicable Servomotor type
Cable length
Cable type
Blank
R
Load side cable
Non-load side cable
*2
Direction for handling cable
1S Series Motor Power cable
100 VAC, 200 VAC 3,000 r/min Servomotor 50 W, 100 W, 200 W, 400 W, 750 W
200 VAC 3,000 r/min Servomotor 1 kW
2,000 r/min Servomotor 1 kW
1,000 r/min Servomotor 900 W
200 VAC 3,000 r/min Servomotor 1.5 kW
2,000 r/min Servomotor 1.5 kW
400 VAC 3,000 r/min Servomotor 750 W to 2 kW
2,000 r/min Servomotor 400 W to 2 kW
1,000 r/min Servomotor 900 W
200 VAC, 400 VAC 3,000 r/min Servomotor 2 kW (200 VAC), 3 kW (200 VAC / 400 VAC)
2,000 r/min Servomotor 2 kW (200 VAC), 3 kW (200 VAC / 400 VAC)
1,000 r/min Servomotor 2 kW (200 VAC / 400 VAC), 3 kW (400 VAC)
200 VAC 1,000 r/min Servomotor 3 kW
200 VAC 3,000 r/min Servomotor 4 kW, 4.7 kW
1,500 r/min Servomotor 5 kW
400 VAC 3,000 r/min Servomotor 4 kW, 5 kW
1,500 r/min Servomotor 4 kW, 5.5 kW, 7.5 kW
400 VAC 1,500 r/min Servomotor 11 kW, 15 kW
200 VAC 1,500 r/min Servomotor 7.5 kW, 11 kW, 15 kW
without Brake Wire
Blank
F
Standard specifications
*1
Flexible cable
