Omron ZFX-C User Manual

Specifications and External Dimensions
ZFX-C User’s Manual
7
APPENDICES
197

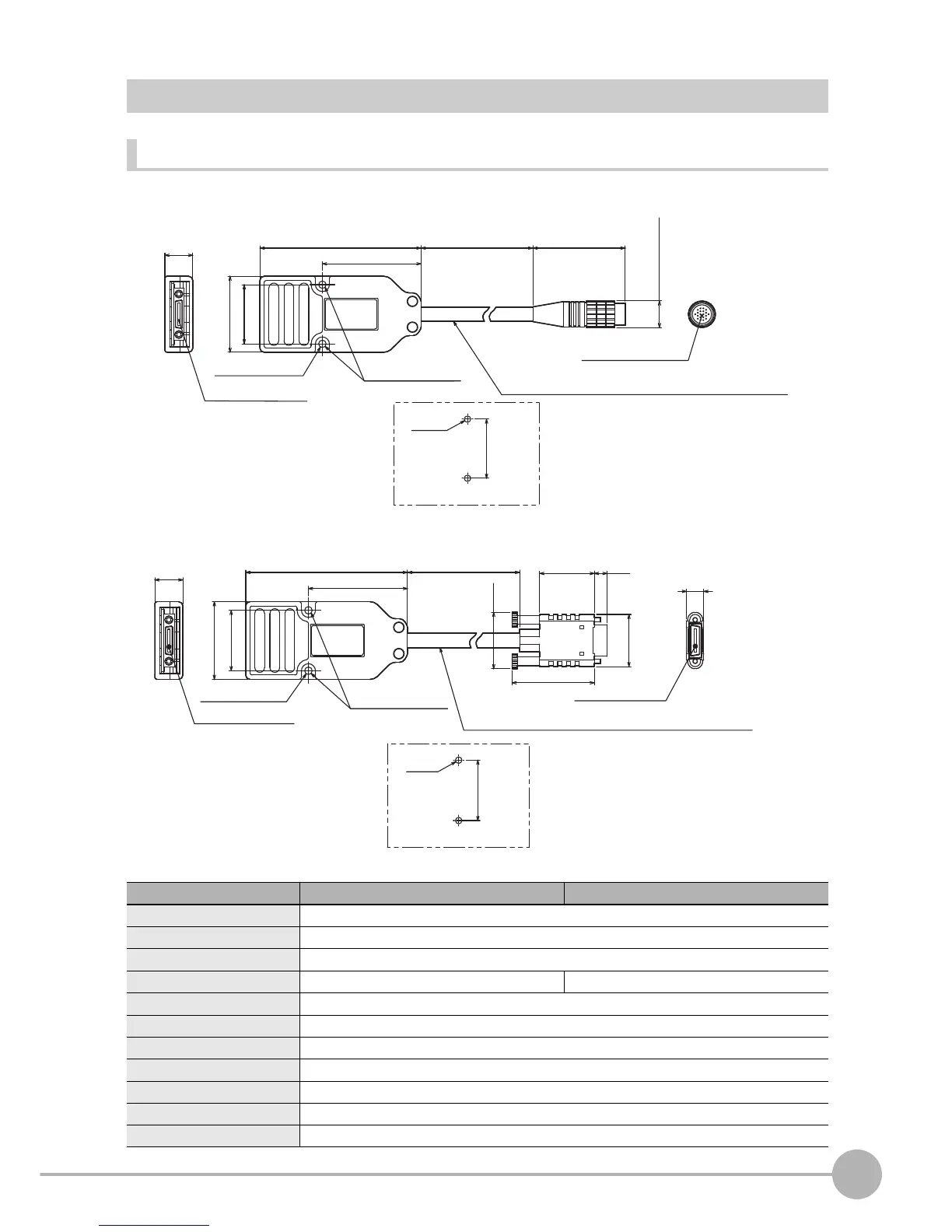

Camera Long-distance Extension Cable
Digital equalizer
ZFX-XEQ01 (camera side)
ZFX-XEQ02 (Controller side)
Item ZFX-XEQ01 ZFX-XEQ02
Applicable controller/camera ZFX series
Cable length 200 mm
Minimum bending radius 40 mm
Current consumption Approx. 30 mA Approx. 80 mA
Ambient temperature range Operating: 0 to + 50°C, Storage: -20 to +65°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Vibration resistance (durability) 10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s
2
3 times each in 6 directions (up/down, left/right, forward/backward)
Material Case: Polycarbonate (PC)
Degree of protection IP20 (IEC60529)
Weight Approx. 70 g
2-M3
28 ± 0.1
Mounting holes
36
75 200
+30
0
43
28
45.9
12.6 mm dia.
2-3.5 mm dia.
Mounting holes
Vinyl insulated round cable 6.1 mm dia. 15-core
13
26-pole (female)
20-pole (female)
(Unit: mm)
2-M3
28 ± 0.1
Mounting holes
36
75 200
+30
0
5.925.34
28
45.9
38.14
24.2
26.2
2-3.5 mm dia.
Mounting holes
Vinyl insulated round cable 6.1 mm dia. 15-core
13
26-pole (female)
8
26-pole (male)
(Unit: mm)
