Setting Measurement Items
92
ZFX-C User’s Manual
Inspection by Individual Application

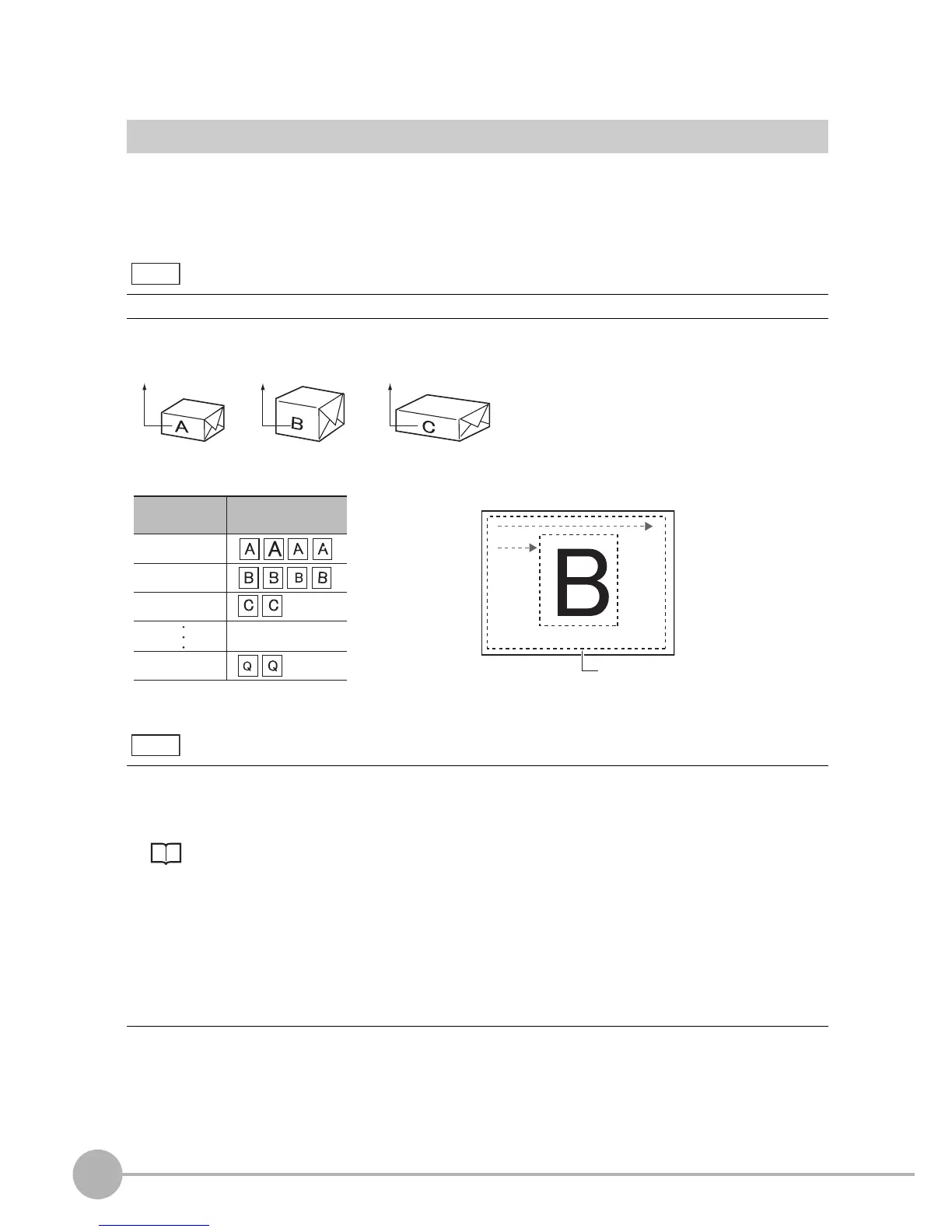

Grouping
Use this item to group products, for example, on lines where many types of products are conveyed. Register
the image pattern to be used as the reference for grouping products as a model beforehand. Up to 64 models
can be registered. The No. of the model that resembles the input image the most, the correlation indicating how
much parts resemble each other and the position of the measurement object can be output.
This item is not provided for the ZFX-C10/C15.
• With the grouping function, registration of models is not executed even if automatic setting is performed. When a
color camera is connected, only automatic setting of color filters is performed.
• Functions equivalent to grouping can also be achieved by the "IMAX" and "IMIN" functions in expressions.
Calculation p.115
Register to 0. Register to 1. Register to 2.
Setup
Search region
(region for searching model)
Measurement
The index No. of the most similar model is output.
Area 0 ... Calculate the area of the color red.
Area 1 ... Calculate the area of the color yellow.
Area 2 ... Calculate the area of the color blue.
Example
:
IMAX (area 0 area value, area 1 area value, area 2 area value)
Measure the area of desired colors.
Set the measurement results of the areas to the expression.
Index Nos. having the largest values can be obtained, enabling grouping by color.
