Setting Measurement Items
56
ZFX-C User’s Manual
Flexible Search
This item is used to treat slight differences as same types. Register up to 36 image patterns to be set as same
types beforehand as models. This reduces the misjudgment which judges good products as non-good
products.
The correlation indicating how much parts resemble each other and the position of the measurement object
can be output.
Region settings
This function sets the region to be registered as the model and the region to search for the model.
X MENU mode - [Setup] - [Item] - [Region]
This item is not provided for the ZFX-C10/C15.
Item Description
Register model This function registers the image pattern to find as the model.
Setting the Region p.213
Reference model The image that is registered as the model can be referenced.
Search region Set the region in which to search for the model.
With Frexible Search, multiple image patterns can be set as models. When the automatic setting is performed,
model registration process varies from other measurement items.
AUTO Setting p.178

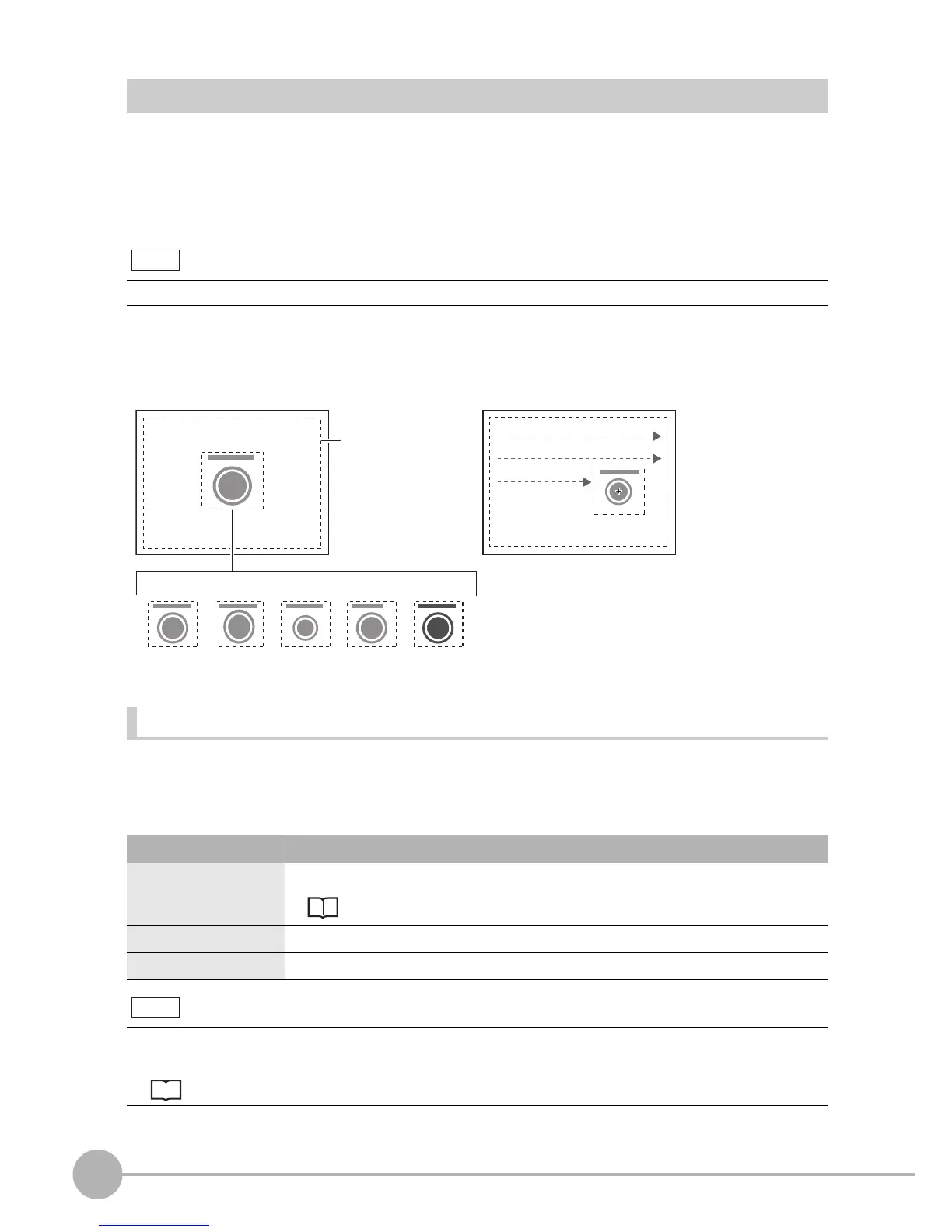

Setup Measurement
Parts resembling one or some of the multiple registered
models are searched for, and the results of the model hav-
ing the highest degree of match of all of the registered
models are acquired.
Model
(image pattern to find)
Passed product
Search region
(region for searching
model)
To Next Page
