Mounting and Connecting Devices
24
ZFX-C User’s Manual

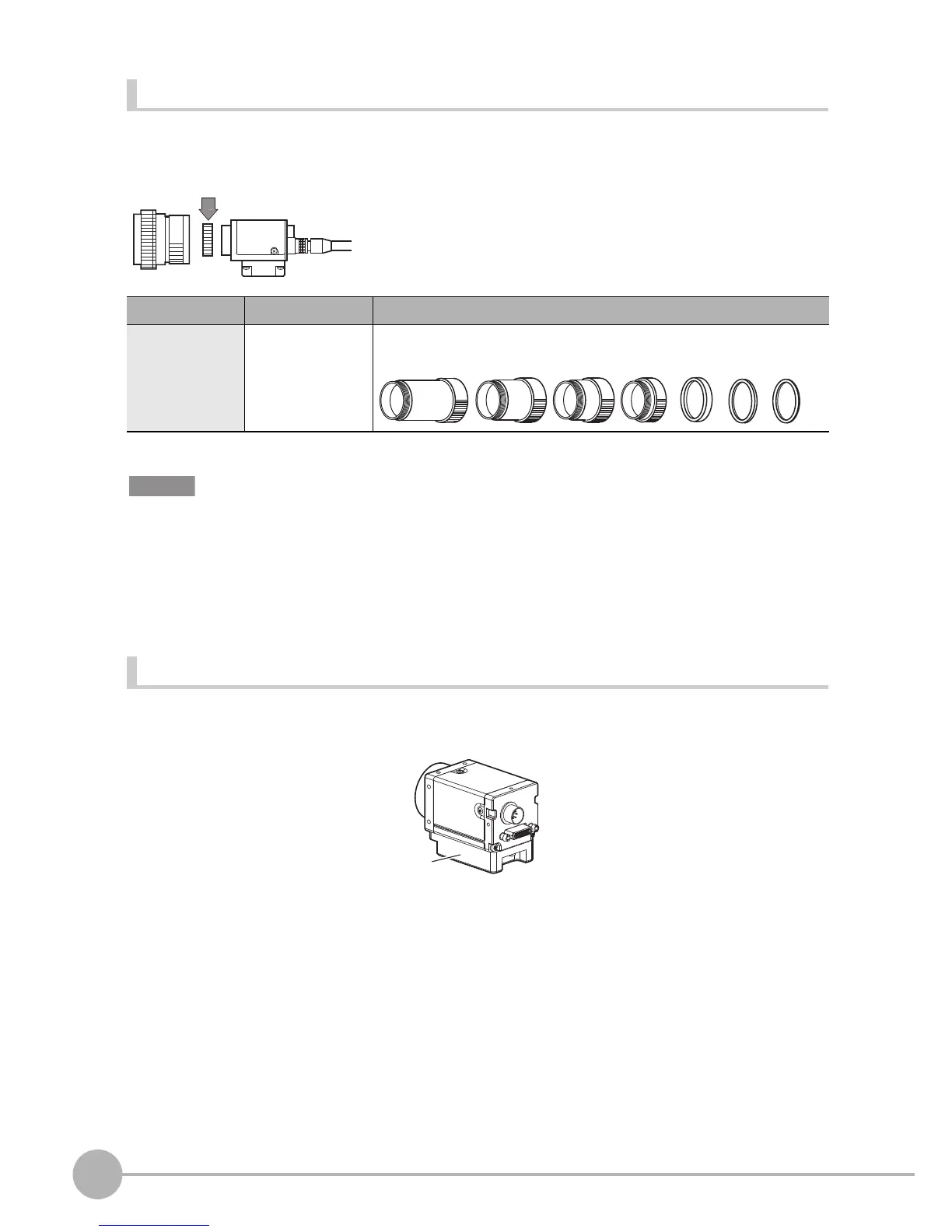

Extension Tubes
One or more Extension Tubes can be inserted between the lens and the Camera to focus the Camera image.
Use a combination of one or more of the seven tubes to achieve the required length.
• Do not use the 0.5-mm, 1.0-mm and 2.0-mm Extension Tubes attached to each other. Since these Extension Tubes
are placed over the threaded section of the Lens or other Extension Tube, the connection may loosen when more
than one 0.5-mm, 1.0-mm or 2.0-mm Extension Tube are used together.
• Reinforcement may be required for combinations of Extension Tubes exceeding 30 mm if the Camera is subject to
vibration.
Installing the Camera Mounting Base
The camera mounting base mounted on the bottom of the camera can be installed on all of the four mounting
surfaces. To change the mounting surface, remove the three mounting screws (M2 x 6) from the camera.
• Tightening torque when fastening the camera mounting base at the mounting location
M4: 1.2 N•m
1/4”-20 UNC: 2.6 N•m
Model
Maximum outer diameter
Length
3Z4S-LE ML-EXR 31 dia. Set of 7 tubes
