Setting Measurement Items
50
ZFX-C User’s Manual

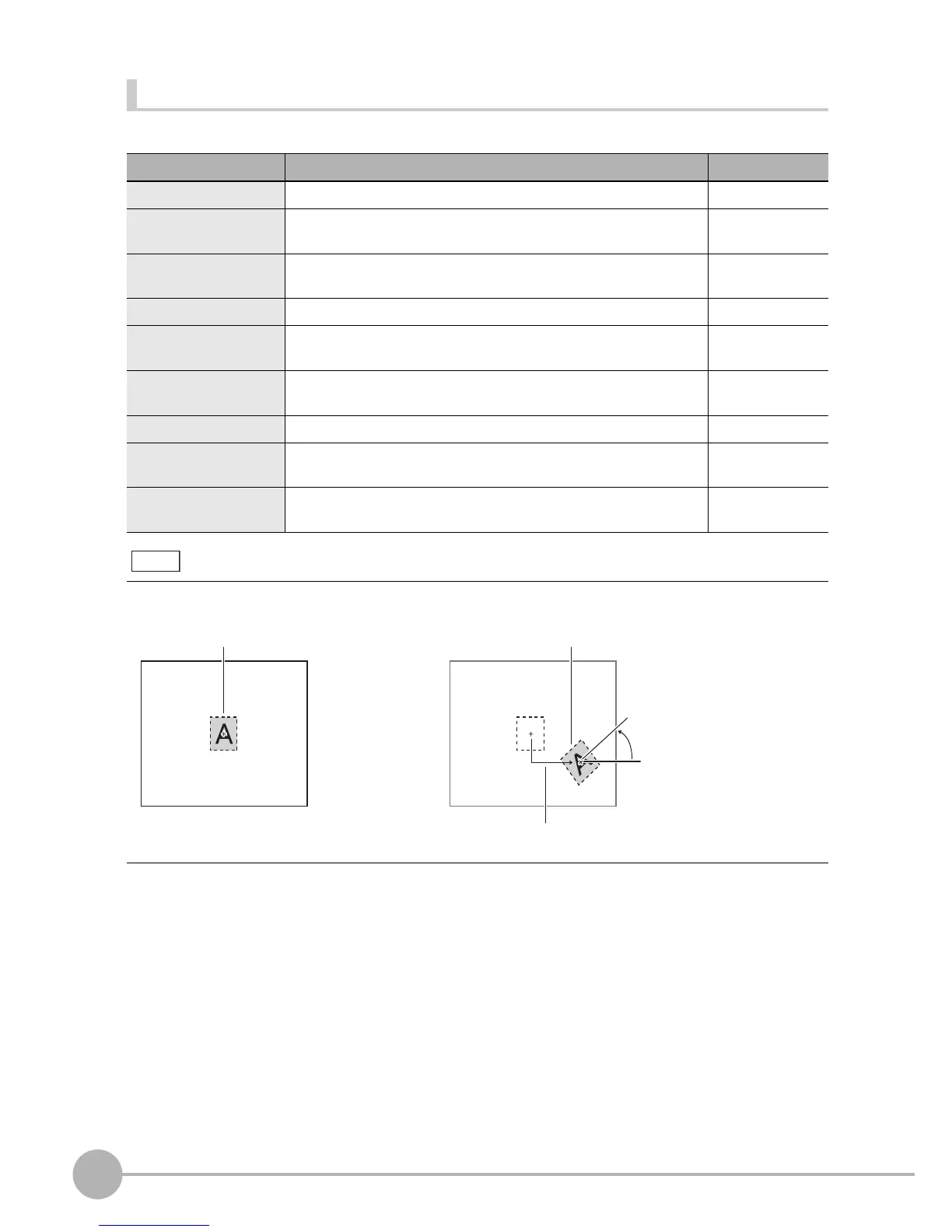

Possible output results
The following values can be output when expressions are set.
Reference position/angle, position difference/angle difference
Item Description Message
Judgment result The judgment result is output. (0:OK, -1:NG, -2: not measured) Judge (JG)
Correlation The degree of match between the measurement image and model
image are output as a correlation value. (0 to 100)
Correlation (CR)
Measurement position The X, Y coordinates of the position where the model was found are
output. (-9999.999 to 9999.999)
Position X, Y
(X, Y)
Measurement angle The rotation angle of the model that was found is output. (-180 to 180) Angle (TH)
Search number The number of searches that have a correlation value at the
correlation lower limit value or above is output. (0 to 99)
Search count (N)
Reference position
The X, Y coordinates when the model was registered are output.
(-9999.999 to 9999.999)
Reference X, Y
(SX, SY)
Reference angle The angle when the model was registered is output. (-180 to 180) Ref. angle (ST)
Position difference The position difference obtained by "measurement position -
reference position" is output. (-9999.999 to 9999.999)
Position dif. X, Y
(DX, DY)
Angle difference The angle difference obtained by "measurement position - reference
position" is output. (-180 to 180)
Angle dif. (DT)
Reference position = position of model when
model is registered
Reference angle = angle of model when model
is registered
Measurement position = position of model found by
measurement
Measurement angle = angle of model found by
measurement
Position difference
= measurement position - reference position
Angle difference
= measurement angle -
reference angle
