PCX SMS AND PCX 256 SYSTEM MANUAL
Page: 128 RINS871-3

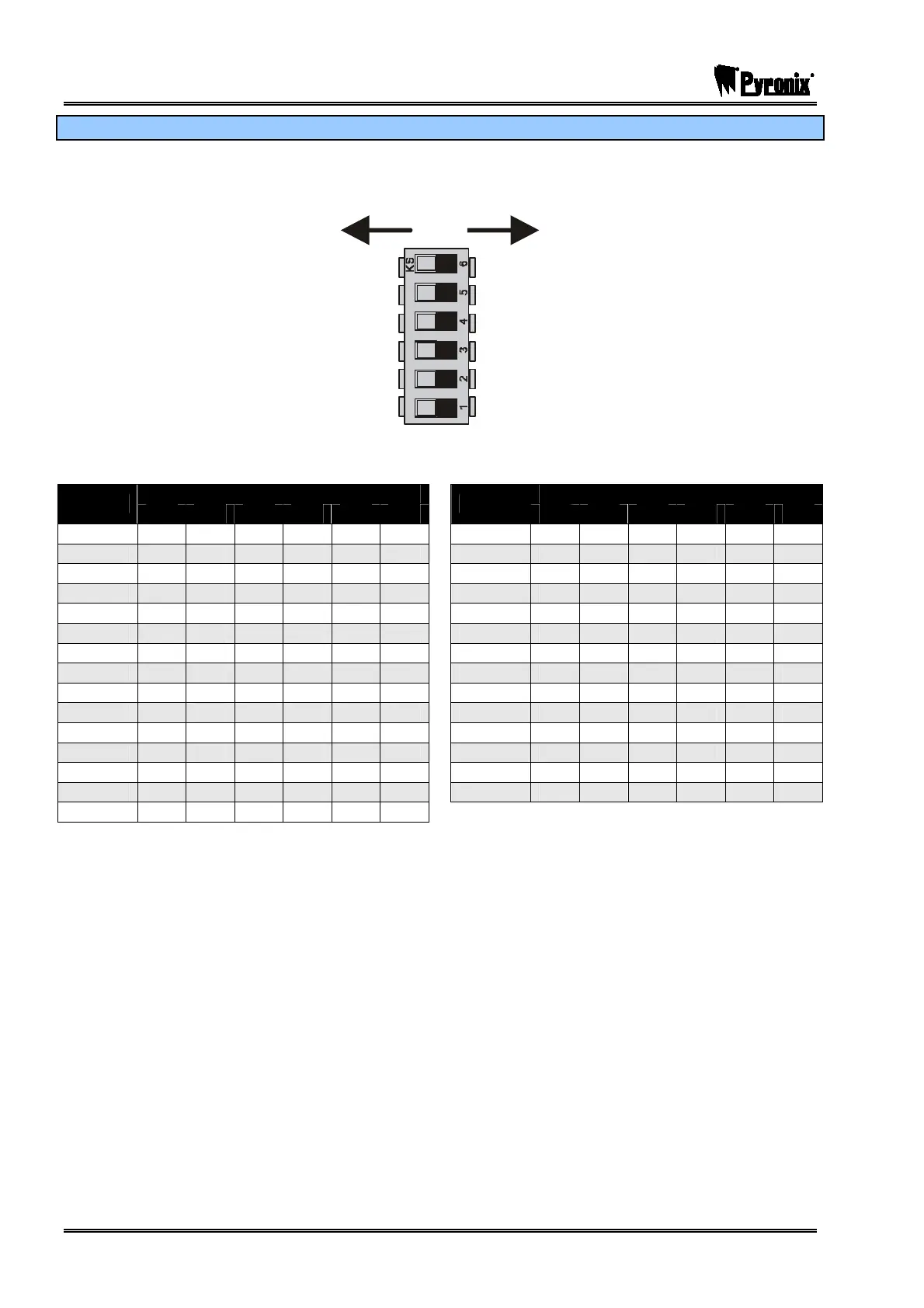

17.10.2 Addressing a PCX-RIX8+/PSU
RIXs are addressed using the DIP switches on the PCB. A maximum of 29 RIXs can be connected to a
PCX 256 system. The DIP switches operate as follows:
Switches should be On or Off as shown in the following table:
Switch Switch
Address
1 2 4 8 16 32
Address
1 2 4 8 16 32
00 OFF OFF OFF OFF OFF OFF 15 ON ON ON ON OFF OFF
01 ON OFF OFF OFF OFF OFF 16 OFF OFF OFF OFF ON OFF
02 OFF ON OFF OFF OFF OFF 17 ON OFF OFF OFF ON OFF
03 ON ON OFF OFF OFF OFF 18 OFF ON OFF OFF ON OFF
04 OFF OFF ON OFF OFF OFF 19 ON ON OFF OFF ON OFF
05 ON OFF ON OFF OFF OFF 20 OFF OFF ON OFF ON OFF
06 OFF ON ON OFF OFF OFF 21 ON OFF ON OFF ON OFF
07 ON ON ON OFF OFF OFF 22 OFF ON ON OFF ON OFF
08 OFF OFF OFF ON OFF OFF 23 ON ON ON OFF ON OFF
09 ON OFF OFF ON OFF OFF 24 OFF OFF OFF ON ON OFF
10 OFF ON OFF ON OFF OFF 25 ON OFF OFF ON ON OFF
11 ON ON OFF ON OFF OFF 26 OFF ON OFF ON ON OFF
12 OFF OFF ON ON OFF OFF 27 ON ON OFF ON ON OFF
13 ON OFF ON ON OFF OFF 28 OFF OFF ON ON ON OFF
14 OFF ON ON ON OFF OFF
32
16
8
4
2
1
OFF ON
