Displaying marine watchboxes
When the marine watchboxes feature is ON (default), any regions
for which a watchbox is valid are highlighted on the weather map as
a red polygon.
To show or hide watchboxes
1. Press the PRESENTATION softkey.
2. Toggle to the appropriate setting on the WATCHBOX softkey.
To display watchbox data
1. Highlight the watchbox.
2. Press OK to display the Object Info pop-up screen.
3. Press OK again to display the watchbox data.
7.5 Troubleshooting
7.6 Weather application setup
With a weather window active, the Weather Setup Menu is available
from the system Setup menu.
To open the Weather Setup Menu
1. With a weather window active, press and hold the PAGE/MENU
button.

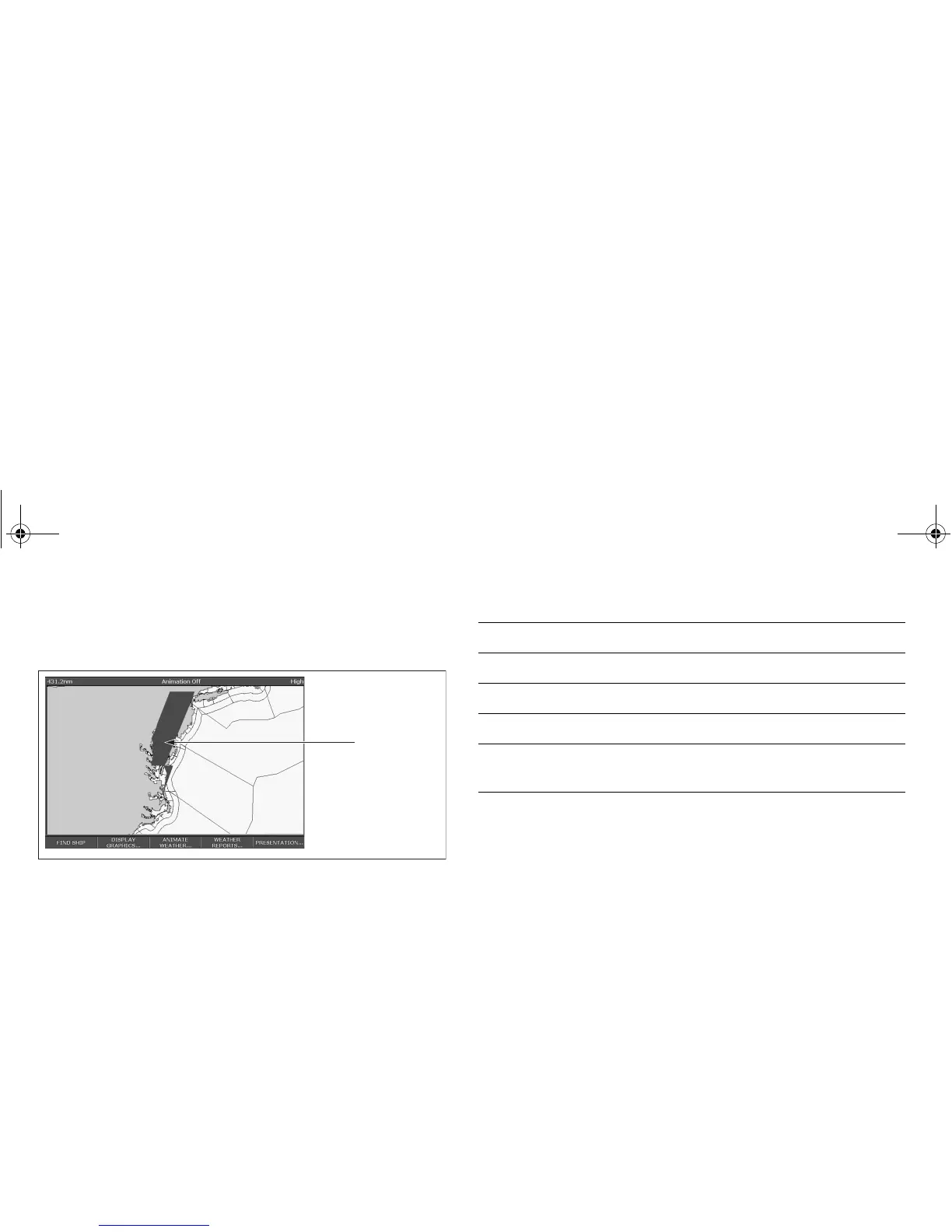

D8608_1
Watchbox alert
warning area
Problem Reason
Boat symbol not displayed No position fix
FIND SHIP softkey greyed-out No position fix
Boat symbol drawn as a solid circle No heading or COG available
‘No Connection’ message is displayed
in the status bar
No signal received from SR50; check
cabling and that SR50 is powered.
