PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 71 of 240
Jul 15, 2010
(4) [V
erify] command
The [V
erify] command transmits the memory contents (program files) in the FP5 valid programming area to
the target device, verifies the data written to the flash memory in the target device, and receives the result.
The target area can be set in the [Operation Mode] area on the [Standard] tab in the Device Setup dialog box.
The progress status of this command is displayed as a percentage in the action log window. When execution of
this command is completed, the programming GUI displays the result of command execution in the target device.
(5) [Read] command
The [R
ead] command loads data on the flash memory in the target device and saves it as a file. When the [View]
command is executed following this command, 4 KB read data is displayed in the log window each time the
ENTER key is pressed. When the [W
rite Intel HEX file] or [Write Motorola SREC file] command is executed
following this command, the read data can be saved in the Intel HEX format or Motorola HEX format. Use of the
saved file with other tool products is not supported.
Remark The folder in which program data was saved the last time is displayed in the program data save dialog
box.
Caution The [R
ead] command is available only when using a single-power-supply flash memory
microcontroller that supports the [R
ead] command.

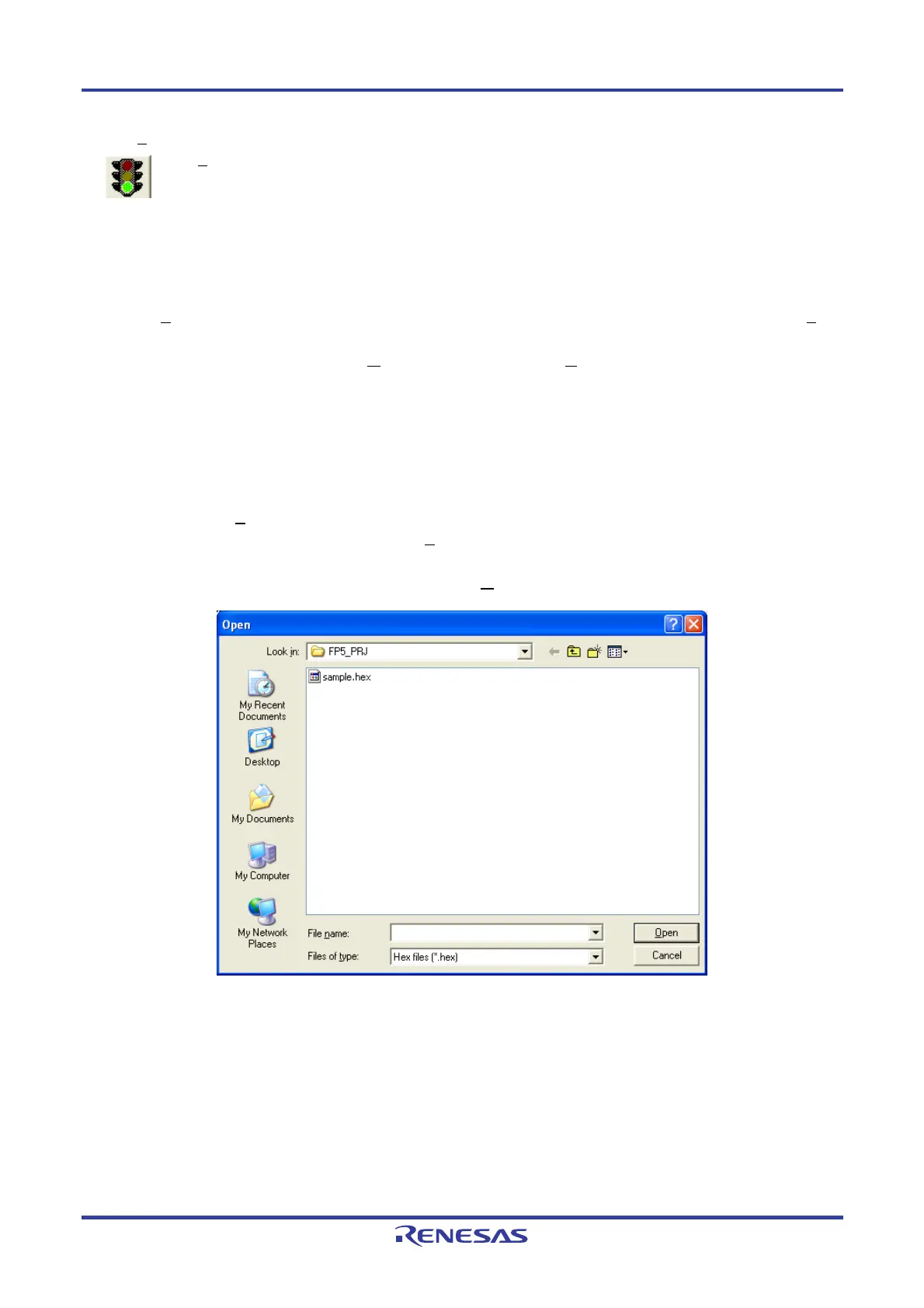

Figure 4-40. Program Data Saved Dialog <When W
rite Intel HEX file Command Is Executed>
