Setting Originals
44
3
Placing the Original on the Exposure Glass
Originals which do not fit into the
ADF, such as sheets with glued-on
parts, books, etc., can be placed di-
rectly on the exposure glass for scan-
ning.
Note
❒ For information about the origi-
nals which can be placed on the ex-
posure glass, see the Copy
Reference manual.
A
AA
A
Lift the exposure glass cover or
the ADF.
Note
❒ Raise the exposure glass cover
or ADF fully (more than 30 de-
grees). The opening/closing ac-
tion triggers the automatic
original size detection process.
B
BB
B

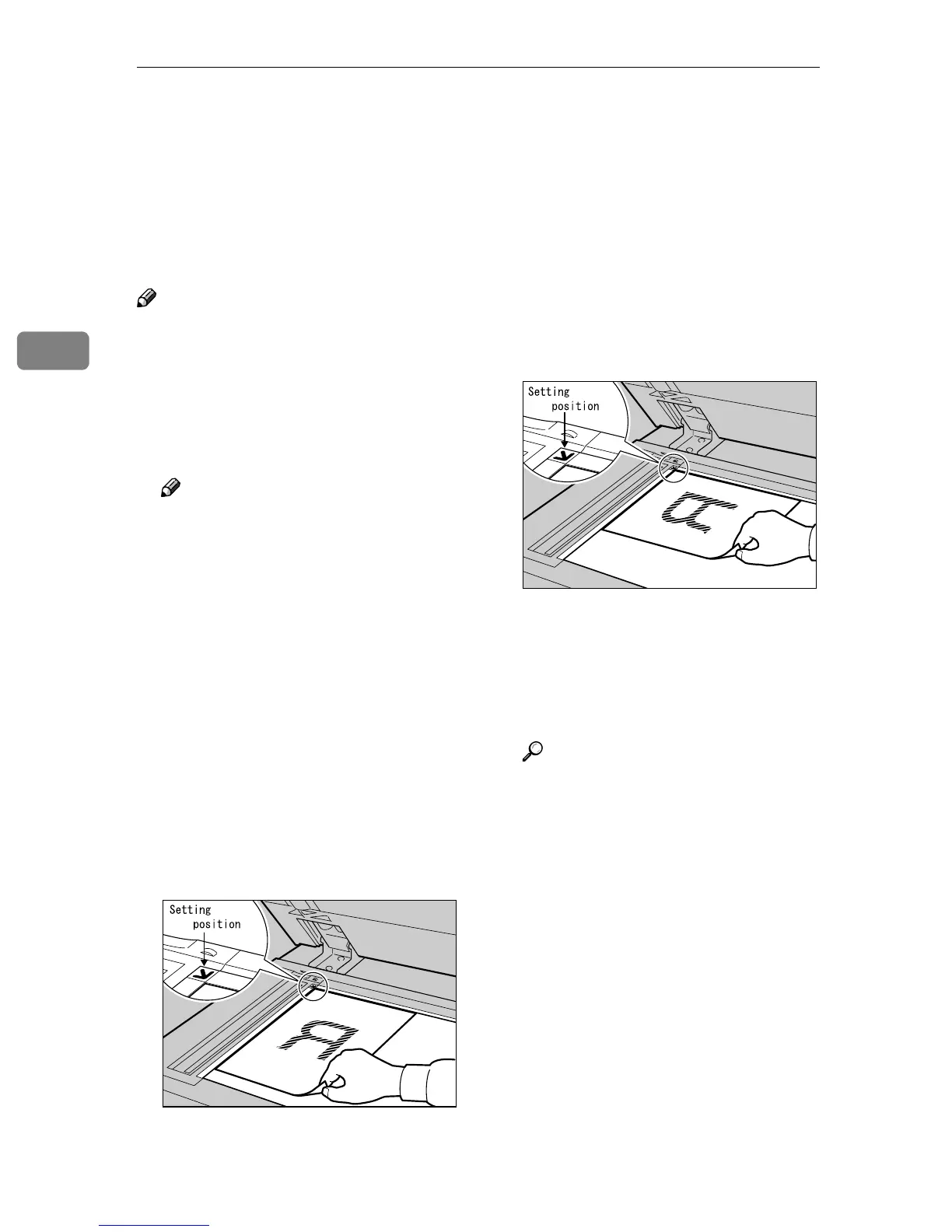

Place the original on the exposure
glass with the side to be scanned
facing down. Align the far left
edge of the original with the
mark.
There are two original orienta-
tions. Either orientation can be
used for placement.
A Place the original so that the
top edge touches the rear of the
exposure glass.
B Place the original so that the
top edge touches the top left of
the exposure glass.
When using the machine as a
network TWAIN scanner, this
orientation is standard setting
in the TWAIN driver. Normal-
ly, use this orientation for set-
ting.
C
CC
C
Close the exposure glass cover or
the ADF.
D
DD
D
Select the original orientation ac-
cording to the setting orientation.
Reference
⇒ p.47 “Original Orientation
and Scan Area Setting”
ZGZY040E
ZGZY030E
