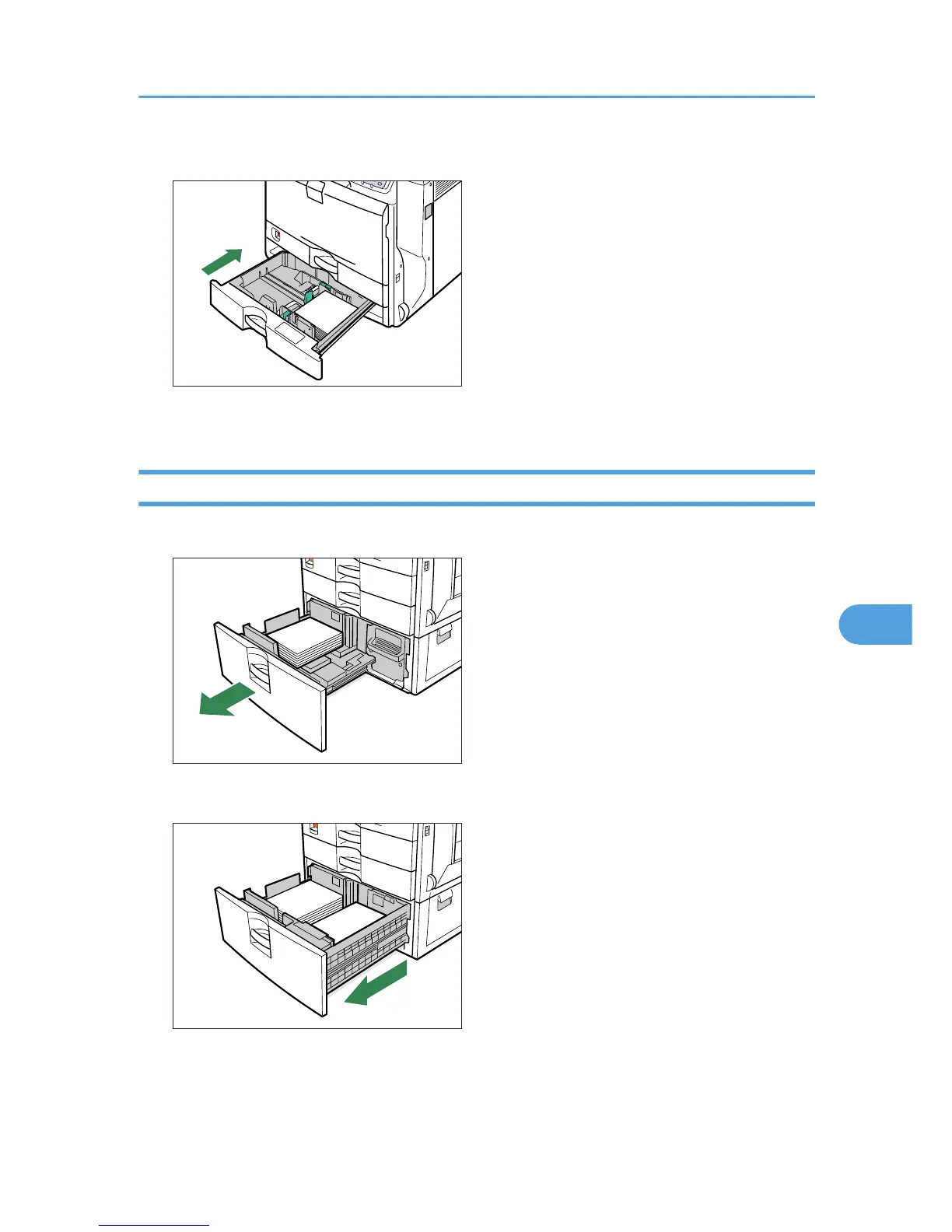

4. Reload the paper into the paper tray and push it gently into the printer until it stops.

BMV098S

Do not slide the paper tray in with force. If you do, the paper guides might move.

2000-sheet Paper Feed Unit

1. Carefully pull out the paper tray until it stops.

BMV099S

2. Holding the lever on the right side of the tray, pull the tray completely out.

BMV100S

3. Remove the loaded paper.

Cleaning the Friction Pads

179
