1. Guide to the Printer
This chapter explains the names and functions of the printer's components.

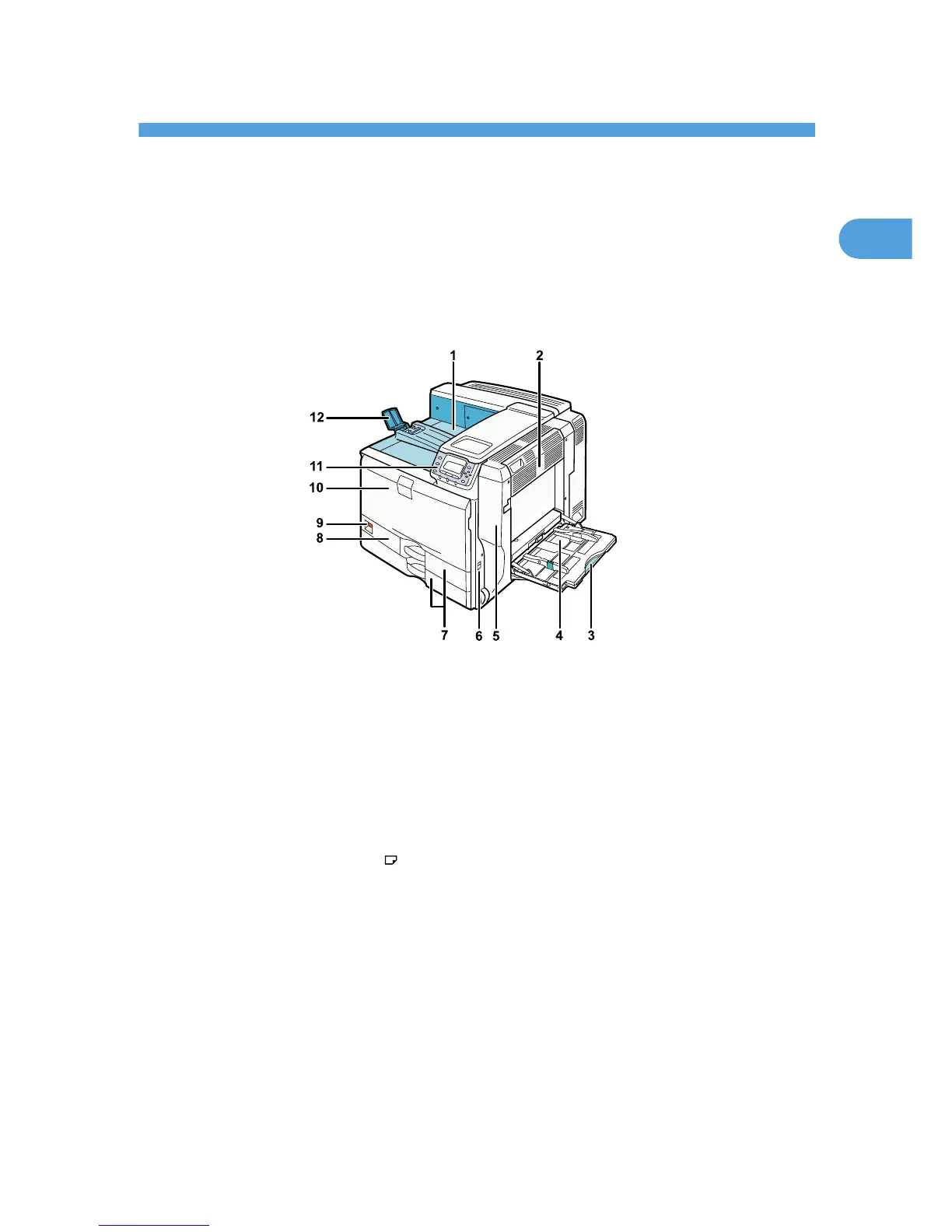

Exterior: Front View
This section explains names and functions of the parts on the front and right side of the printer.
1. Standard Output Tray
Printed pages are output here.
2. Upper Right Cover
Open this cover to remove jammed paper.
3. Bypass Tray
Up to 100 sheets of plain paper can be loaded.
4. Bypass Tray Extension
When loading paper larger than A4 , pull out the bypass tray extension. For details about the sizes and types
of paper that can be used, see "Supported Paper for Each Tray".
5. Right Cover
Open this cover to replace the fusing unit and transfer roller, or to remove jammed paper.
6. Handle
Pull out this handle when lifting the printer.
7. Tray 1, Tray 2
Up to 550 sheets of paper can be loaded in each tray, when using plain paper.
In this manual, tray 1, tray 2, the optional 500-sheet paper feed unit tray, and the 1000-sheet paper feed unit
trays (trays 3 to 5) are collectively referred to as 500-sheet trays.
17
