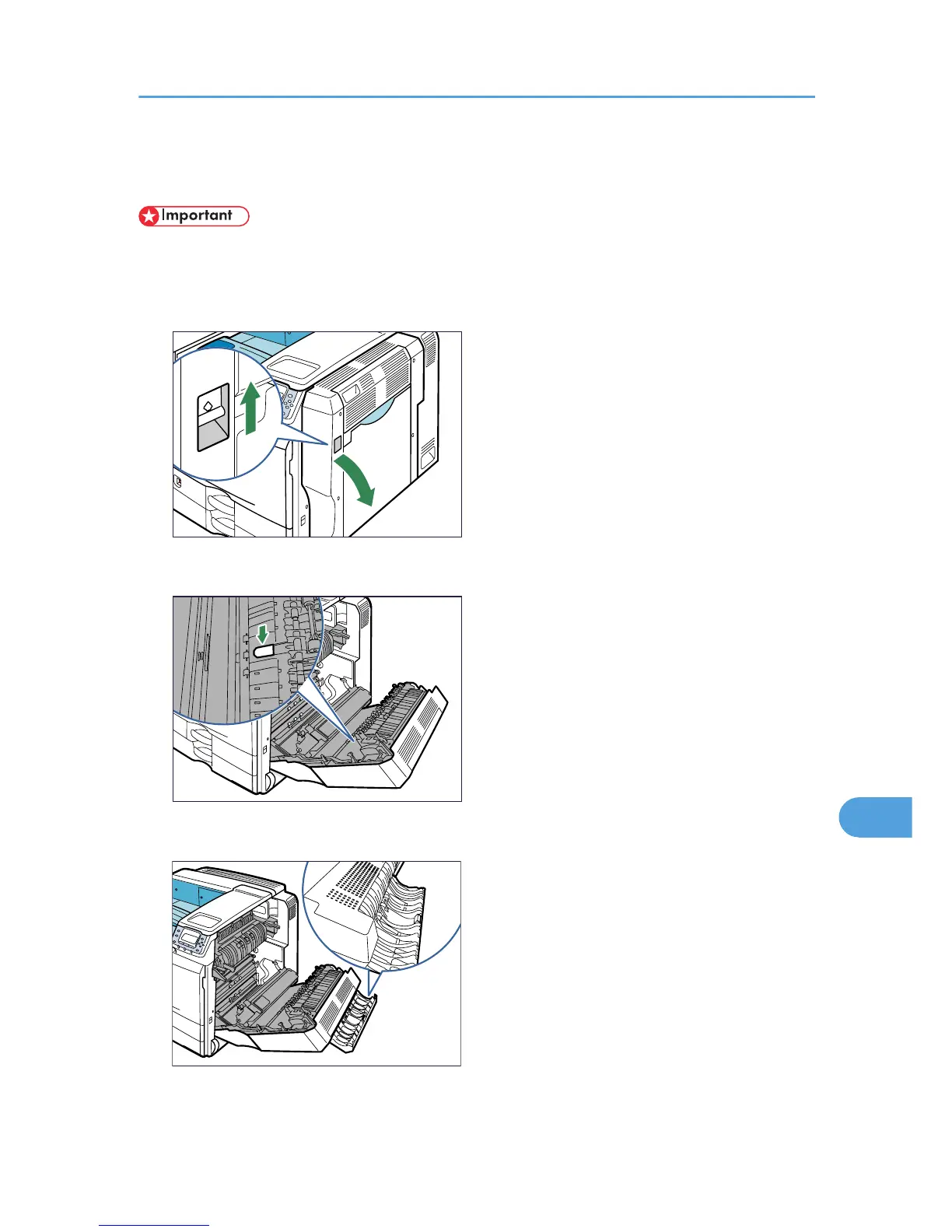

Duplex Print Always Misfeeds

• The inside of this printer becomes very hot. Before removing paper around the duplex units, wait until

the covers inside the fusing unit and duplex unit cool down.

1. Push up the lever on the right side, and open the printer's right cover carefully.

BMV103S

2. Check if there is paper in the location shown below.

BMV137S

3. If there is paper, open the upper right cover.

BMV138S

Duplex Print Always Misfeeds

257
