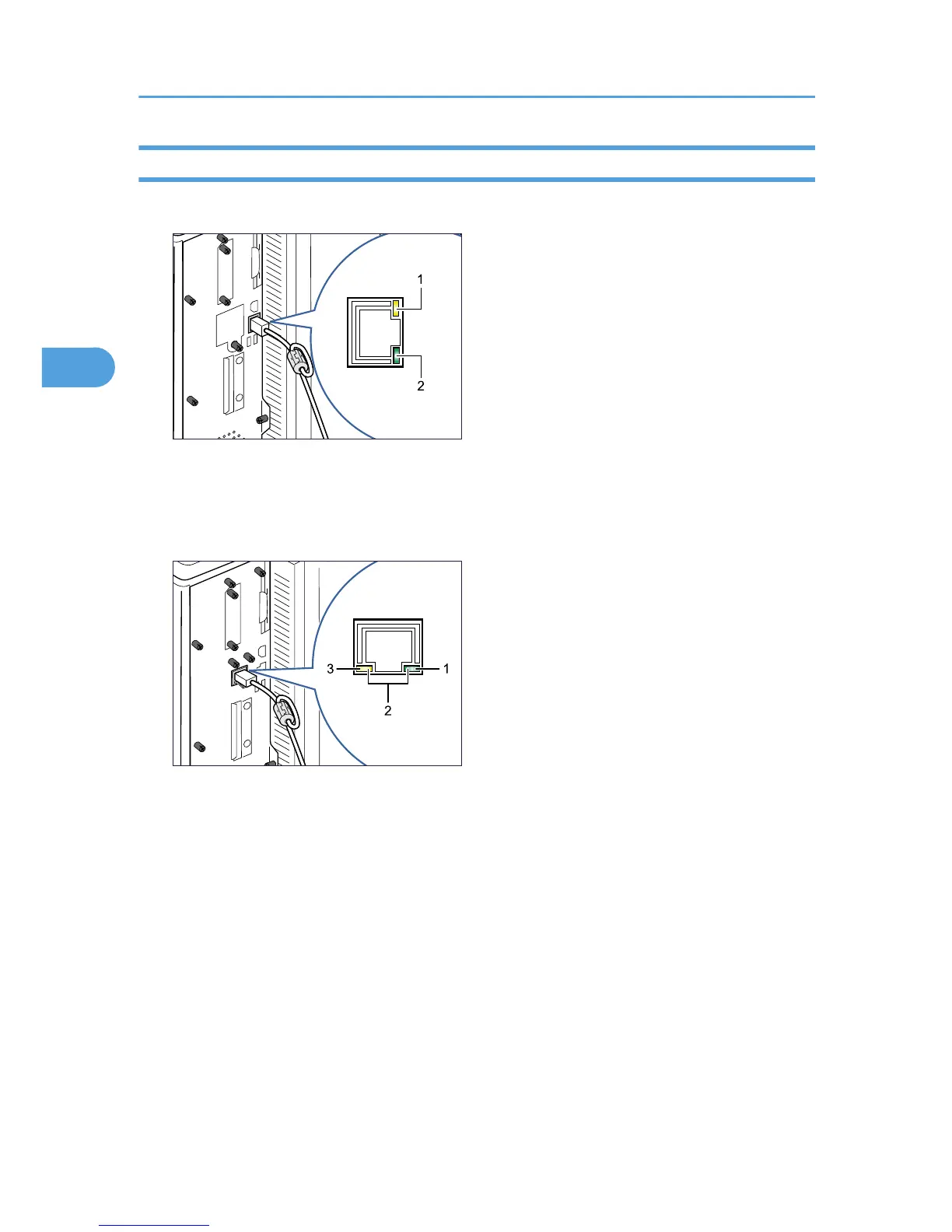

Reading the LED Lamps

Standard Ethernet port

BMV184S

1. Yellow: turns on when 100BASE-TX is in use. It turns off when 10BASE-T is in use.

2. Green: turns on when the printer is properly connected to the network.

Ethernet port of the Gigabit Ethernet board

BMV185S

1. Green: turns on when 10BASE-T is in use.

2. Both the green and yellow lamps are lit when 1000BASE-T is in use.

3. Yellow: turns on when 100BASE-TX is in use.

3. Connecting the Printer Cables
