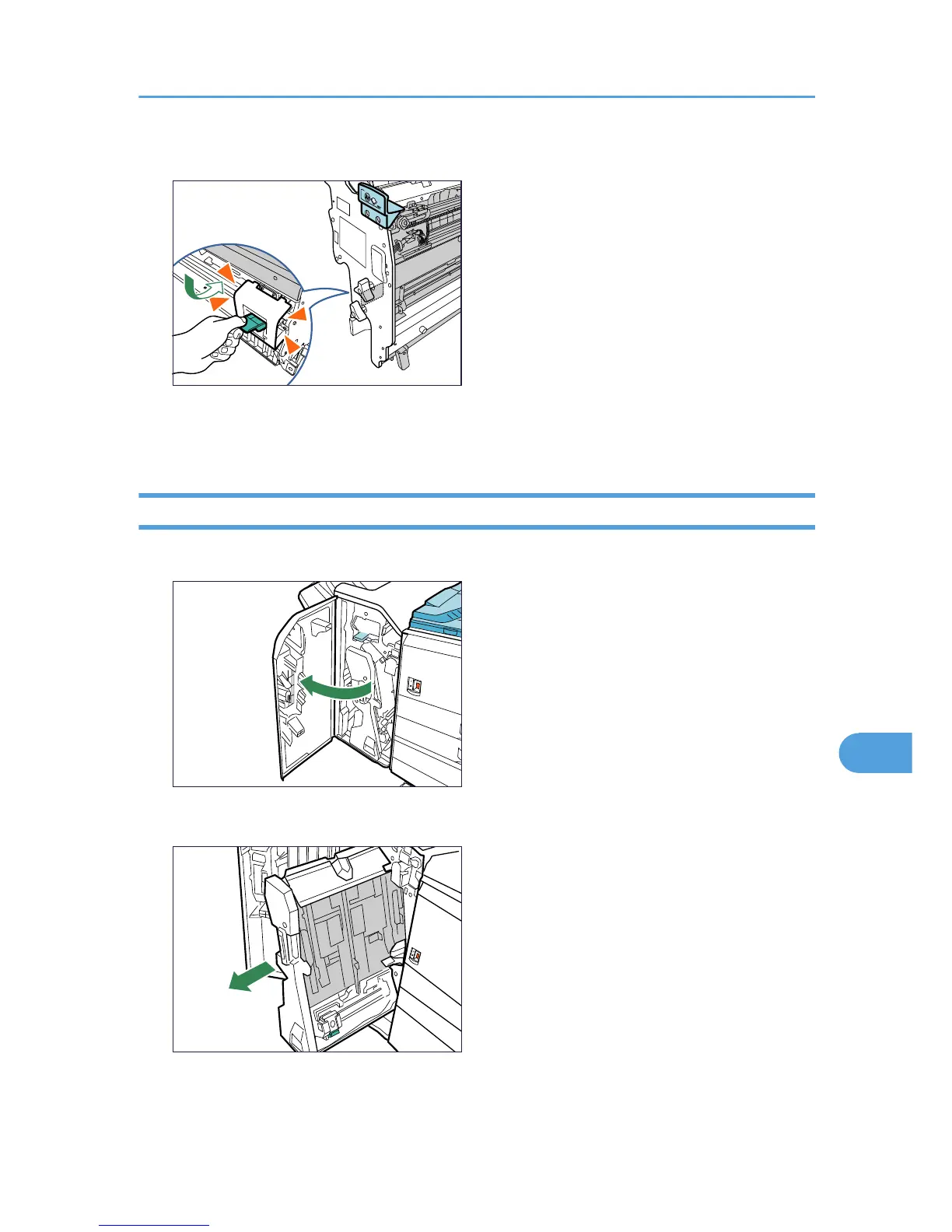

9. Push the lever down until it clicks.

BMV093S

10. Return the staple unit to its original position.

11. Close the front cover of the finisher.

When the 2 Tray Finisher is Installed

1. Open the front cover of the finisher.

BEK110S

2. Holding the lever, pull out the staple unit.

BEK084S

Removing Jammed Staples

225
