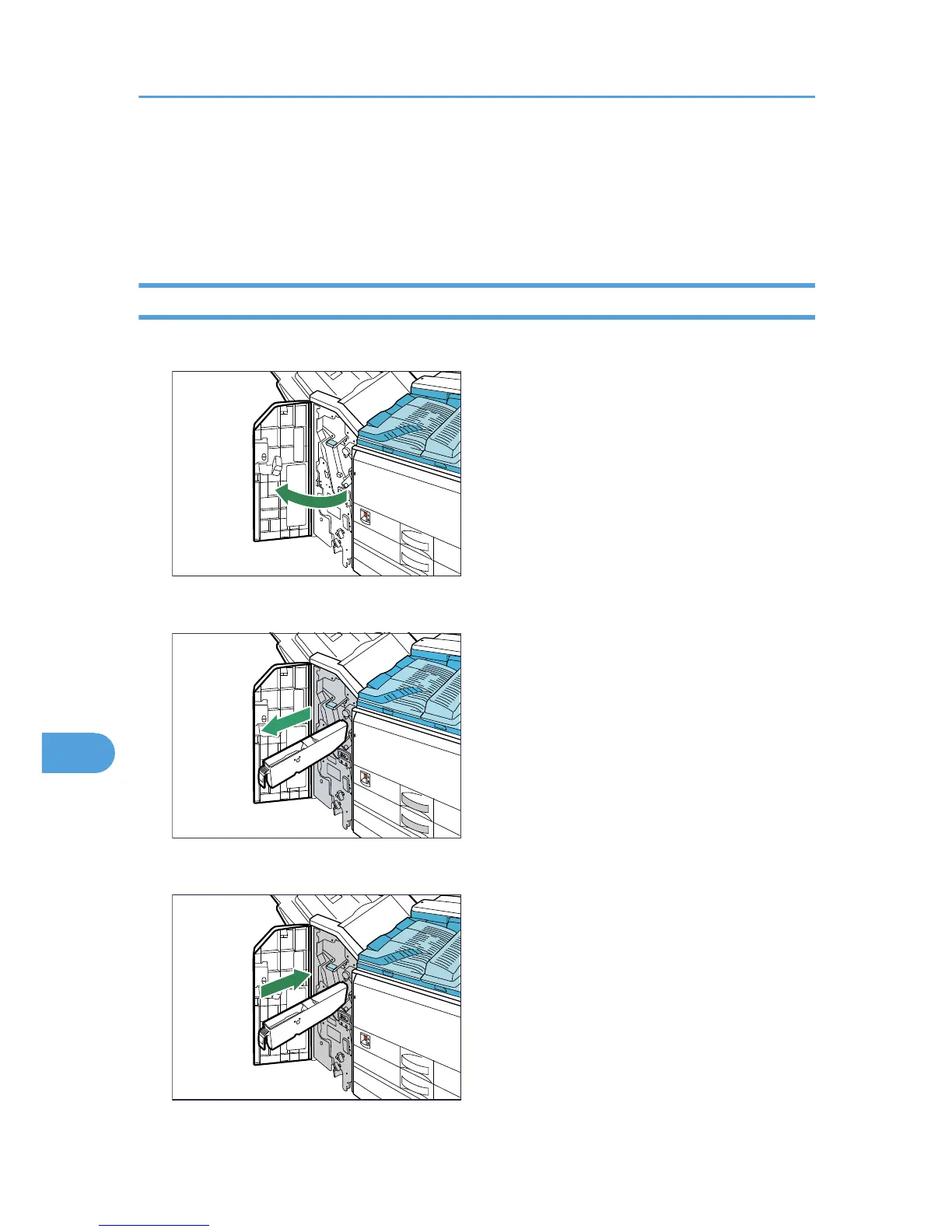

Removing Punch Waste

"Hole punch receptacle is full. Empty it." or "Empty the punch receptacle." message appears, remove punch

waste from the finisher. When these messages appear on the display, you cannot use the punch function.

When the Booklet Finisher is Installed

1. Open the front cover of the finisher.

BMV088S

2. Pull out the punch waste box carefully, and then remove punch waste.

BMV109s

3. Re-install the punch waste box.

BMV110S
