Ricoh Aficio SP C820DN User Manual

Adjusting Printing Position
You can adjust the printing position for the 500-sheet paper feed unit (tray 3) and the 1000-sheet paper
feed unit (tray 3 to tray 5). Only the horizontal printing position can be adjusted. "Horizontal" means
perpendicular to the feed direction. Normally you do not need to update the printing position. However,
updating is useful in some cases when the optional paper feed unit is installed.

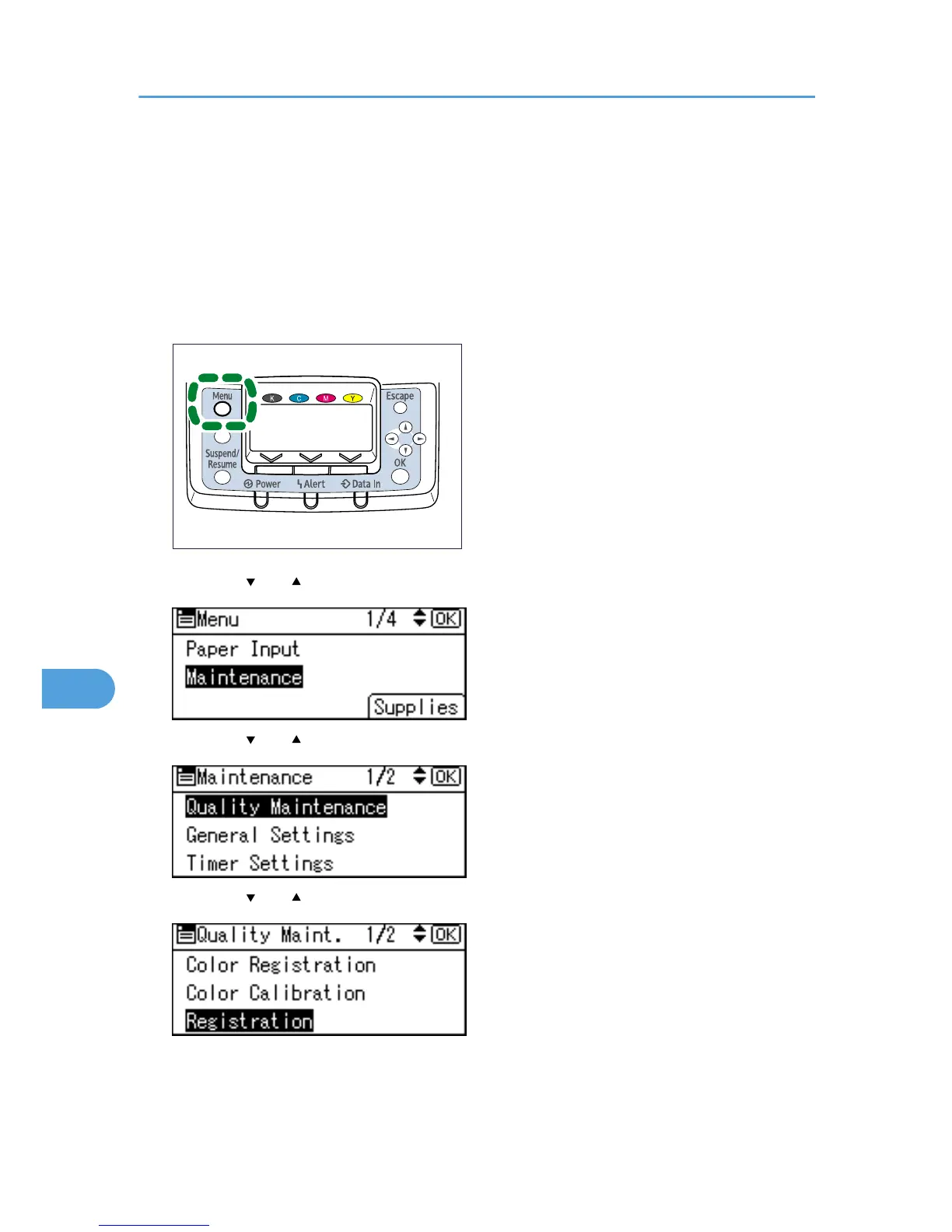

1. Press the [Menu] key.
BMW028S
2. Press the [ ] or [ ] key to select [Maintenance], and then press the [OK] key.
3. Press the [ ] or [ ] key, and then press the [OK] key to select [Quality Maintenance].
4. Press the [ ] or [ ] key to select [Registration], and then press the [OK] key.
8. Adjusting the Printer
194
8
