Ricoh Aficio SP C820DN User Manual

Exterior: Side View
This section explains names and functions of the parts on the rear side of the printer.

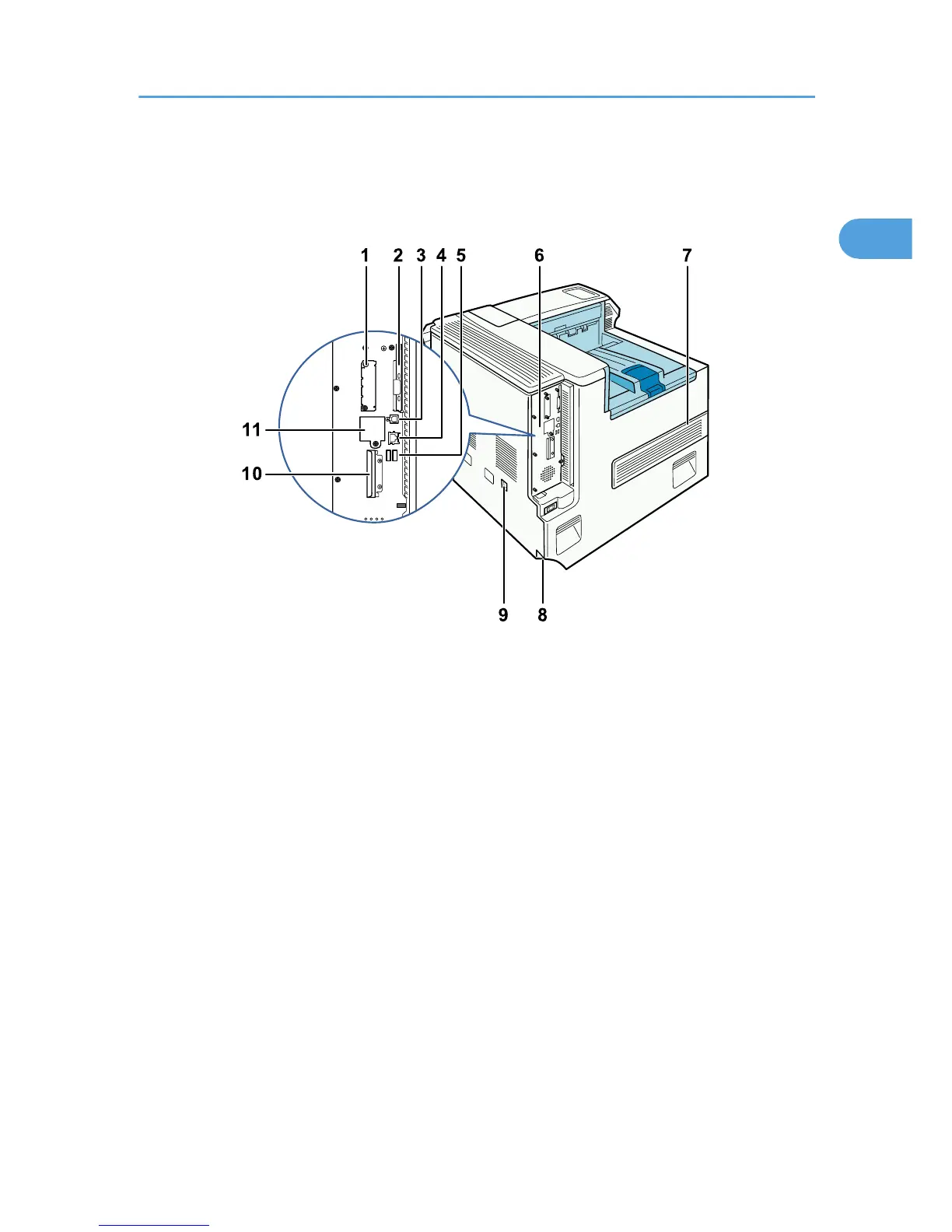

BMV004S
1. Optional Interface Board Slot
Optional interface boards can be inserted.
Insert an optional IEEE 802.11 wireless interface unit, Bluetooth interface unit or IEEE 1284 interface board.
2. Expansion Card Slots
Remove the cover to install SD cards.
Upper slot: Data overwrite security unit, camera direct print card, NetWare card
Lower slot: HDD encryption unit, VM card
3. USB Port B
Use a USB cable to connect the printer to a host computer.
4. Ethernet Port
Use a network interface cable to connect the printer to the network.
5. USB Port A
Connect external devices to the printer, such as a digital camera.
6. Controller Board
Slide this out to install options such as the SDRAM module, hard disk, or Gigabit Ethernet board.
7. Ventilator
Releases heat from internal components to prevent overheating. Do not place objects against or near these holes.
Doing so results in printer malfunction.
