Installing the Interface Units
Installing the Gigabit Ethernet Board
• Before beginning work, ground yourself by touching something metal to discharge any static
electricity. Static electricity can damage the board.
• Do not subject the board to physical shocks.
• The printer's Ethernet port is not available when the Gigabit Ethernet board is attached to the printer.
Use the Ethernet port on the Gigabit Ethernet board.
• When installing the Gigabit Ethernet board and wireless LAN interface board together, install the
Gigabit Ethernet board first, and then install the wireless LAN interface board. If the wireless LAN
interface board is already installed, remove it before installing the Gigabit Ethernet board.

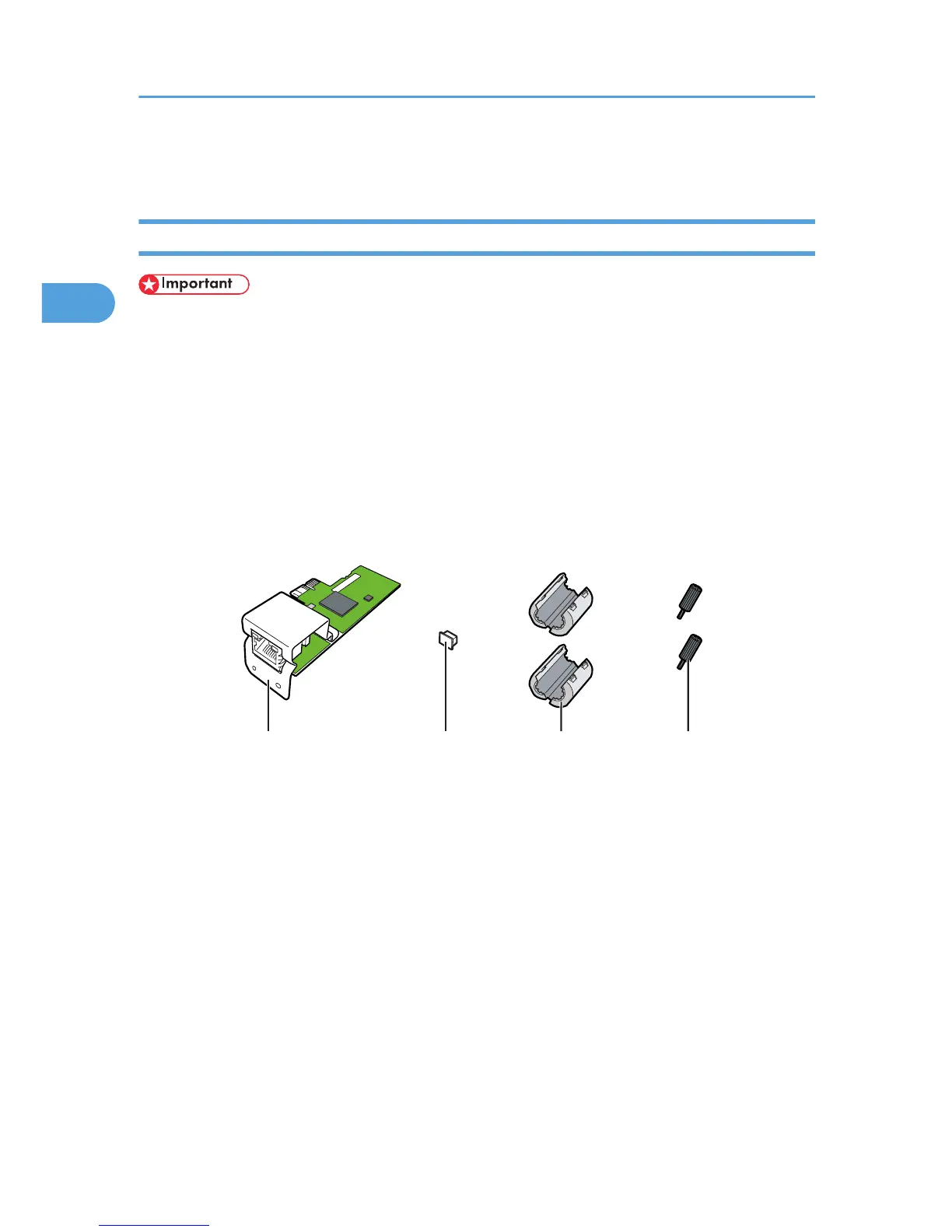

1. Check the contents of the package.
1. Gigabit Ethernet Board
2. One Protective Cap
3. Two Ferrite Cores
Use the included ferrite cores when connecting an Ethernet cable to the board.
4. Two coin screws
2. Turn the printer off and unplug the power cord.
2. Installing Options
