IMAGE TRANSFER
G104 6-52 SM
6.7.2 TRANSFER BELT DRIVE AND TRANSFER BELT ROLLER
VOLTAGE

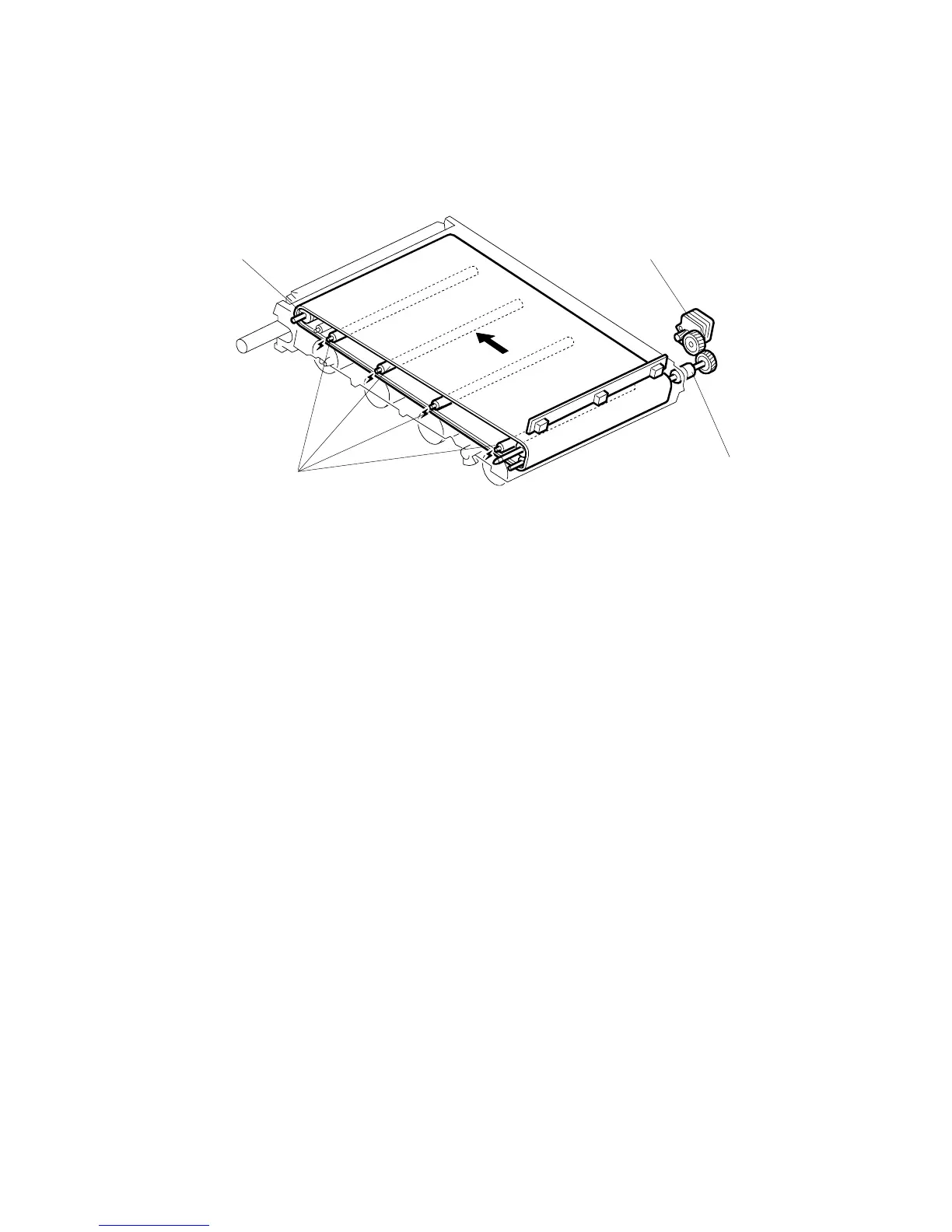

The transfer belt motor [A] drives the transfer belt drive roller [B]. The belt tension
roller [C] adds tension to the transfer belt to help turn the belt. The speed of the
transfer belt drive is set by the process line speed.
The belt transfer rollers [D] are charged from the terminal plates to transfer the
toner from the PCUs to the transfer belt.
G105D112.WMF
[A]
[B]
[C]
[D]
