DRIVE
SM 3-23 G104
Replacement
Adjustment
3.5.6 ID SENSORS

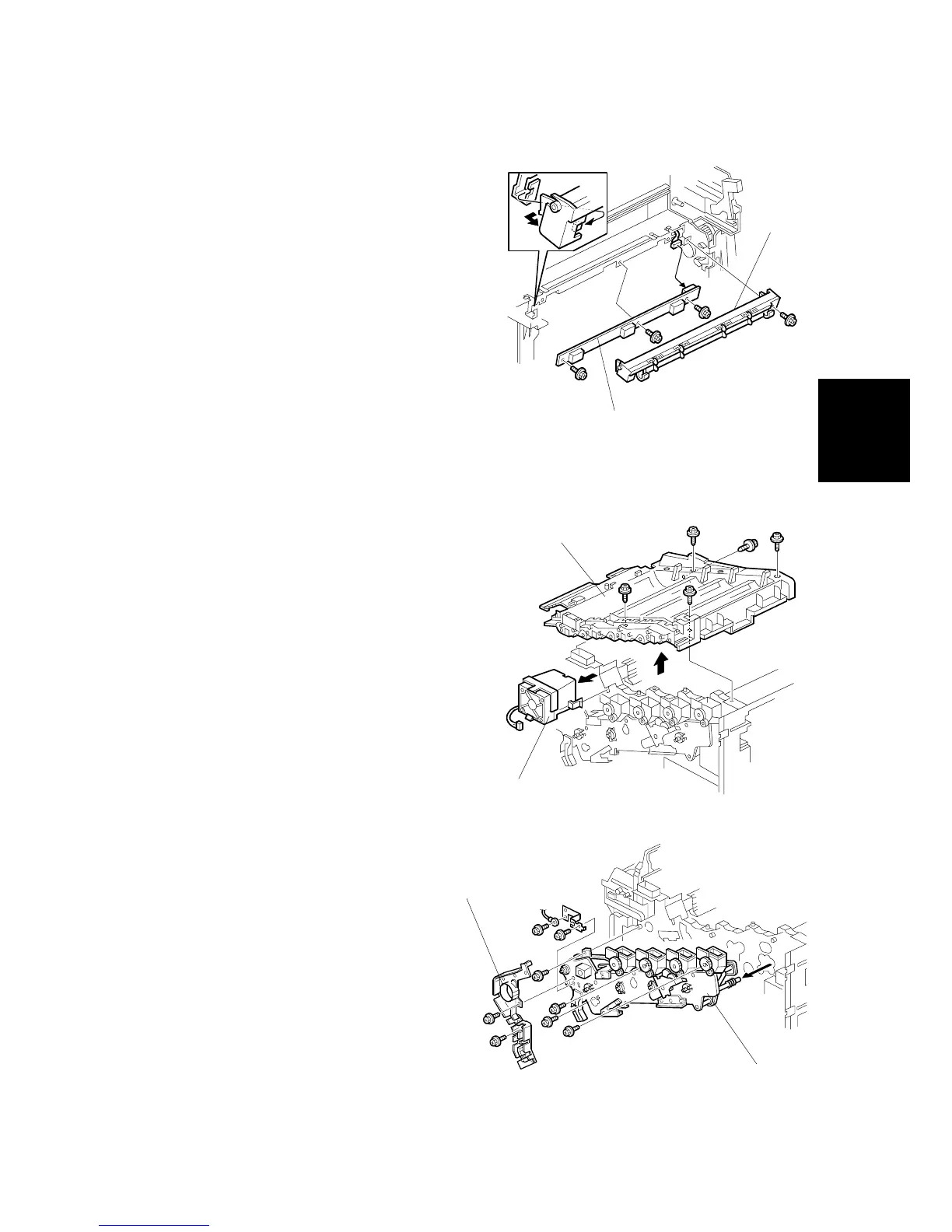

1. Front door
2. Fusing unit ( 3.8.1)
3. ID sensor cover [A] ( x 1)
4. ID sensor bracket [B] ( x 3, x 1)
NOTE: Do SP 2111 4 to adjust the ID
sensors after you replace the
ID sensor.
3.6 DRIVE
3.6.1 DRIVE UNIT
1. Top cover
2. Front door
3. Left cover
4. Transfer belt unit
5. PCU x 4
6. Toner bottle x 4
7. Toner supply motor unit x 4 (3.5.4)
NOTE: Clean the toner hopper and
toner transport path before
you remove the toner supply
motor unit. If not, toner
scattering can occur.
8. Right cover ( 3.2.1)
9. Top frame [A] ( x 5)
10. Fusing unit fan [B] ( x 1)
11. Harness guide [C] ( x 2)
12. Drive unit [D] ( x 6, x 16)
G105R146.WMF
G105R151.WMFF
G105R152.WMF
[A]
[B]
[A]
[B]
[C]
[D]
To Next Page
