PAPER FEED CLUTCH
SM 3
G392
Paper Feed
Unit Type
4000
1.3 PAPER
FEED
CLUTCH
•

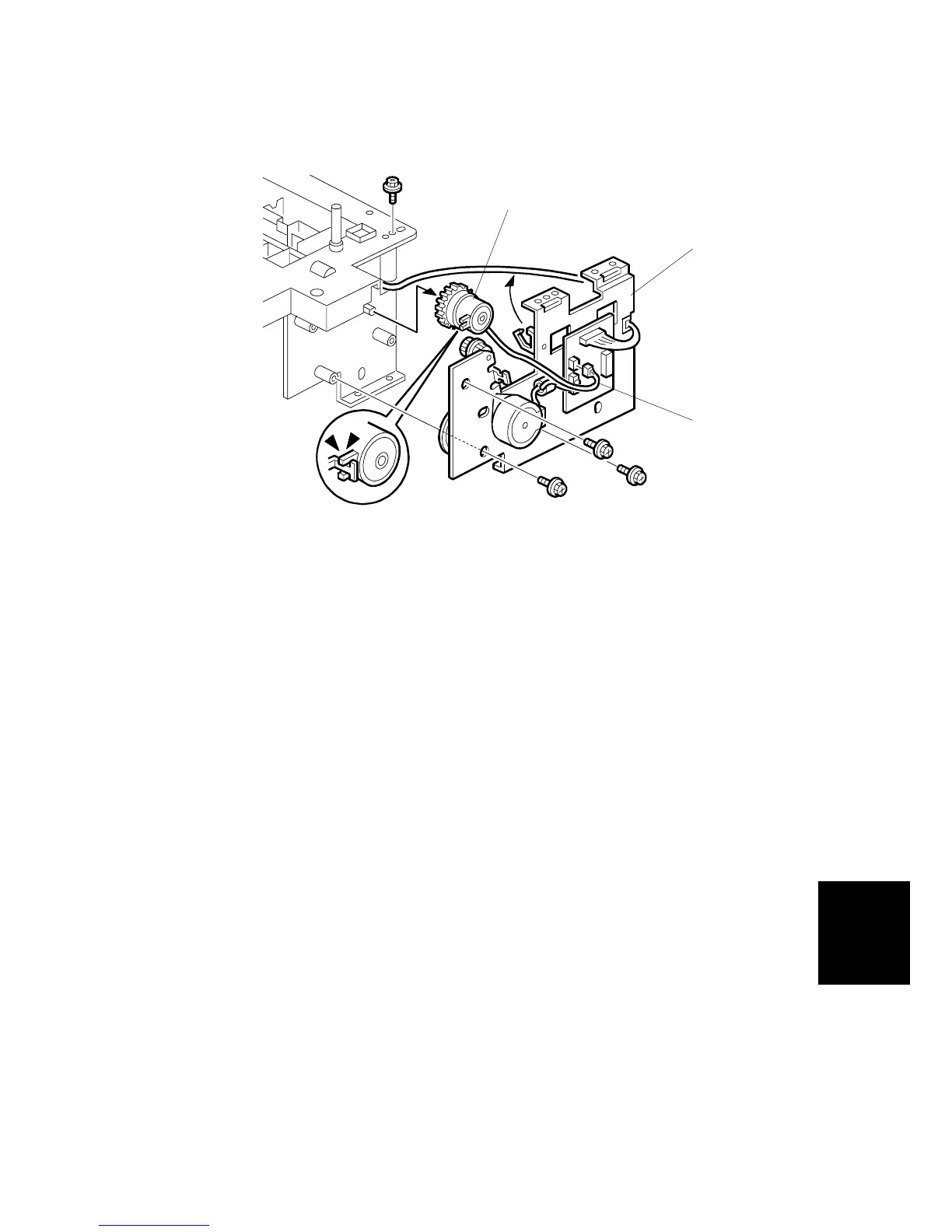

Remove the paper feed unit.
[A]:
Disconnect the clutch harness.
[B]:
Side plate (
x 4)
[C]:
Paper feed clutch
NOTE:
Make sure to properly secure the cl
utch before completing installation.
G392R105.
W
MF
[A]
[B]
[C]
