MACHINE INSTALLATION
G104 1-6 SM

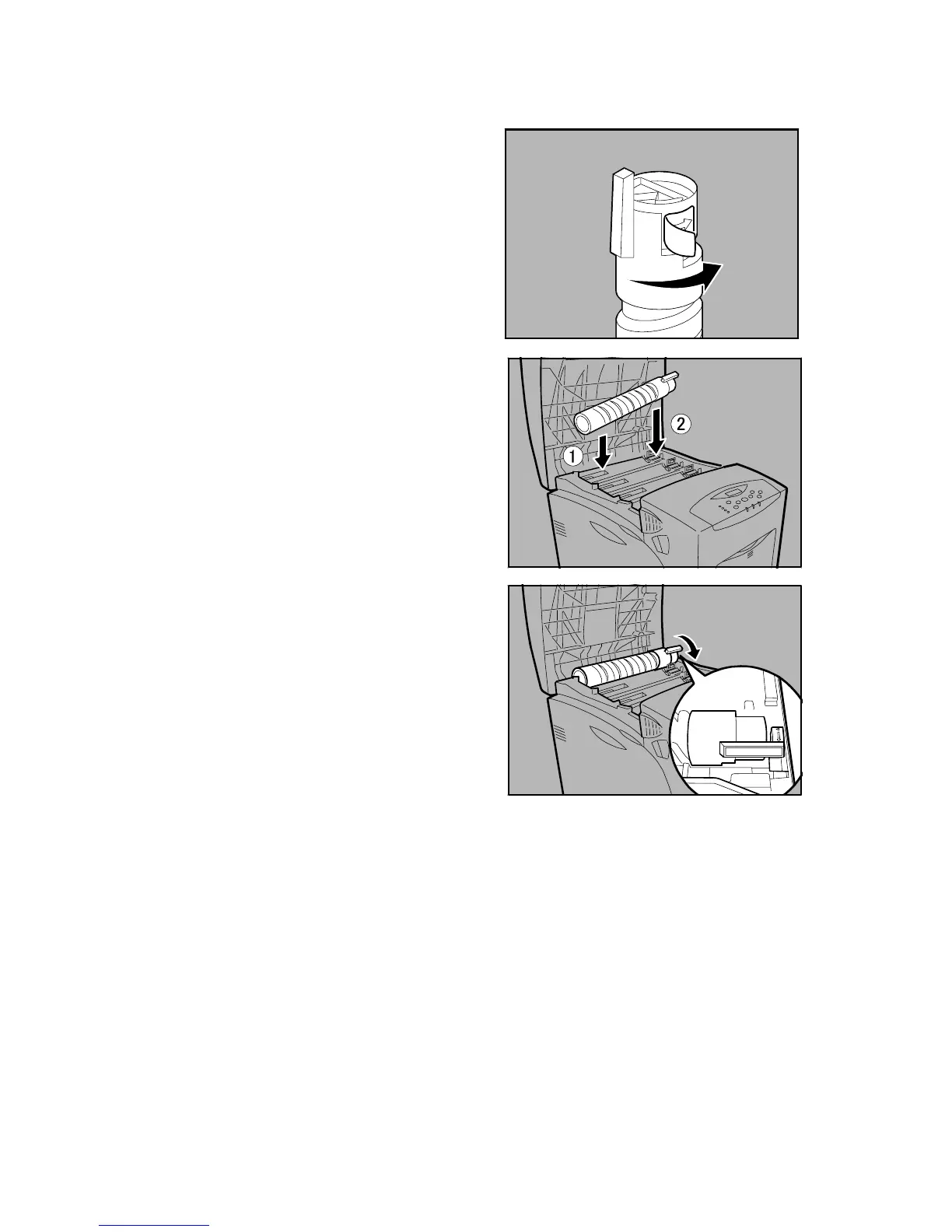

4. Remove the tape from the toner bottle.
5. Install the yellow toner bottle first. Hold
the toner bottle in the horizontal
position with the locking lever on the
top side. Install the toner bottle bottom
first. Then move the locking lever to
the triangular mark position .
6. Turn the fixing lever to adjust it to the
position of the circular mark. Continue
to press the fixing lever toward the
printer until it rotates smoothly into its
position.
NOTE: Do not insert and remove toner
bottles again and again. This
causes toner leakage.
7. Do the same procedures again to
insert the other three bottles: cyan (C),
magenta (M), and black (K).
8. Close the top cover.
NOTE: Do not turn off the power
switch at the time “Loading
Toner…” shows on the display.
This prevents malfunction.
G105I916.WMF
G105I917.WMF
G105I918.WMF
