Design Guidelines
Transport System Design
QuickStick HT User Manual 115
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
• When attaching mounting brackets to the motors and securing the brackets to the track
as shown in Figure 3-39, make sure that the brackets are located to allow access to all
motor connections. This mounting method provides easy adjustment of the motor
position once the motor is installed.

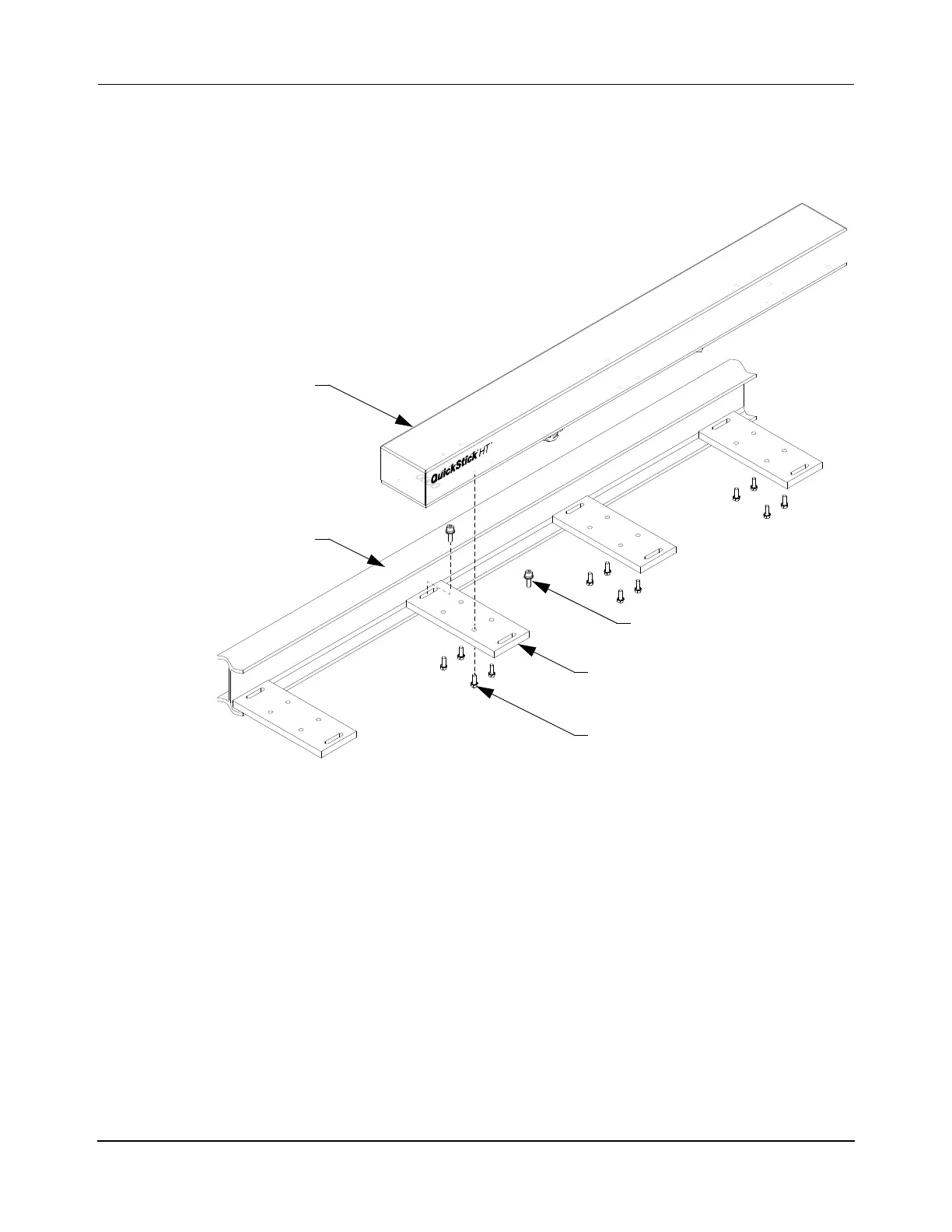

Figure 3-39: Motor Mounting Using Brackets
When using either of the mounting methods shown.
1. Loosely mount the motors to the motor mounting surface. The motor mounts should
allow the motors a small amount of movement relative to each other.
NOTE: The upstream end of the motor has a hole for alignment with a locating pin
and the downstream end of the motor has a slot for alignment with a second
locating pin (see Figure 4-1 on page 124 through Figure 4-3 on page 126).
2. Make sure that there is consistent spacing between the motors.
3. Make sure that the top surfaces of all motors are coplanar to each other.
4. Treating each motor to motor interface as a separate operation, tighten the motor
mounts. See Mounting the Motors on page 181 for details of the mounting procedure.
M6 Motor Mounting Hardware
QSHT Motor
Motor Mounting Bracket
Track
Mounting Bracket Hardware
