Rockwell Automation MagneMotion QuickStick HT User Manual

Installation
Transport System Installation
QuickStick HT User Manual 187
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

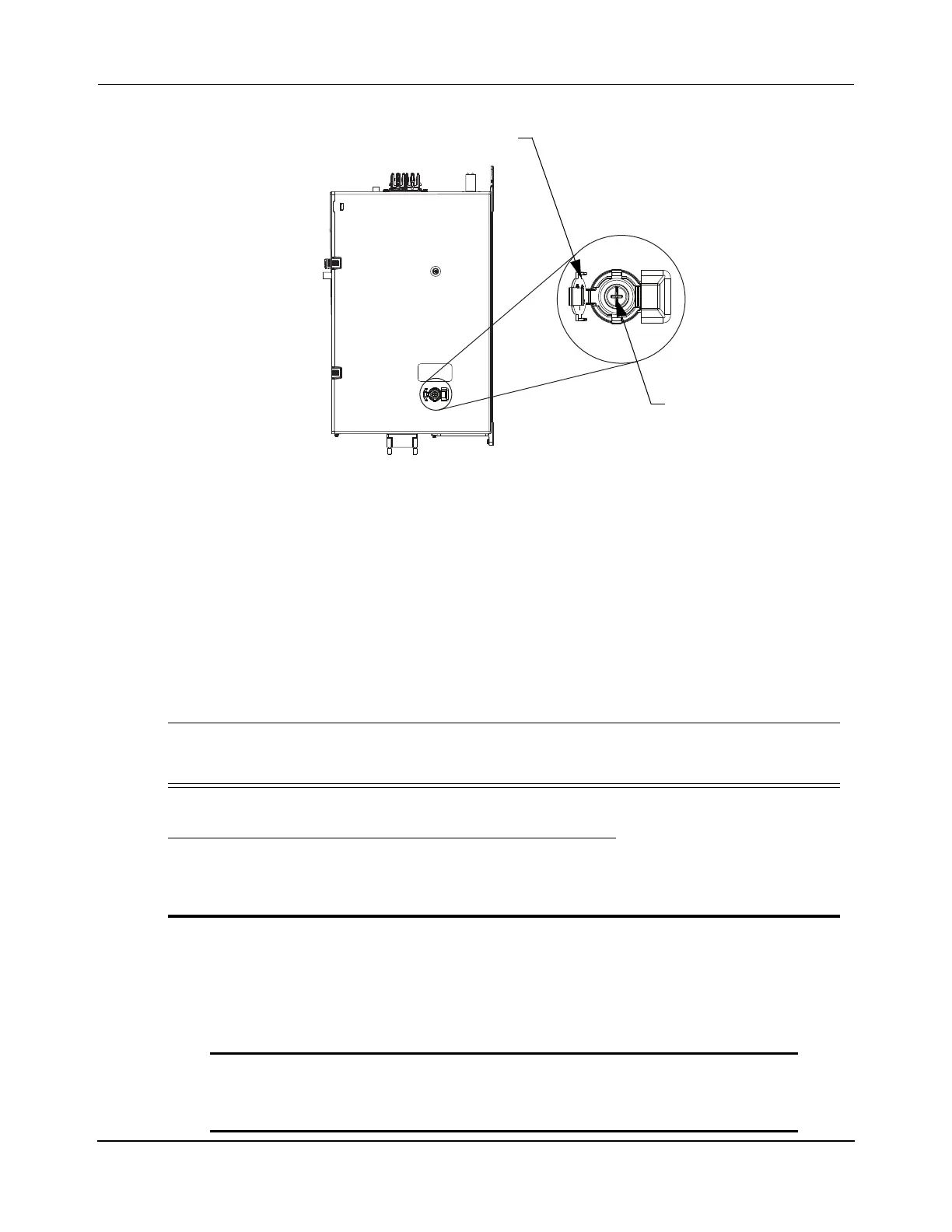

Figure 5-3: 2198-Pxxx DC-bus Power Supply Ground Screw
QSHT 5700 Inverter Ground Screw Installation
Included with the inverter module connector set (2198-KITCON-D032-L) is a ground screw.
Install the ground screw to make an internal ground connection for grounded power configu-
rations. Do not install the ground screw for ungrounded, corner-grounded, and imped-
ance-grounded power or grounded systems with active power supplies (screw not installed is
the default setting).Table 5-3 details the ground screw/jumper settings for the QSHT 5700
inverter.
Table 5-3: Ground Screw/Jumper Setting for the QSHT 5700 Inverter
AC Power Source Type
2198-Pxxx
*
DC-bus Power Supply
* 2198-Pxxx DC-bus power supply when 2198-DB20-F, 2198-DB42-F, 2198-DB80-F, or 2198-DB290-F
AC line filter is used.
2198-Pxxx
†
DC-bus Power Supply
† 2198-Pxxx DC-bus power supply when 2198-DBR20-F, 2198-DBR40-F, 2198-DBR90-F, or
2198-DBR200-F AC line filter is used.
Grounded (wye)
Inverter ground screw/jumper
installed.
Inverter ground screw/jumper
not installed.
• Impedance grounded
• Corner grounded
• AC-fed ungrounded
Inverter ground screw/jumper
not installed.
IMPORTANT When the ground screw is not installed, the risk of equipment
damage exists because the unit no longer maintains
line-to-neutral voltage protection.
2198-Pxxx DC-bus
Power Supply
(side view)
Grounding Screw
Grounding Screw
Access Door
Back
