7-16 COOLING AND LUBRICATION SYSTEM

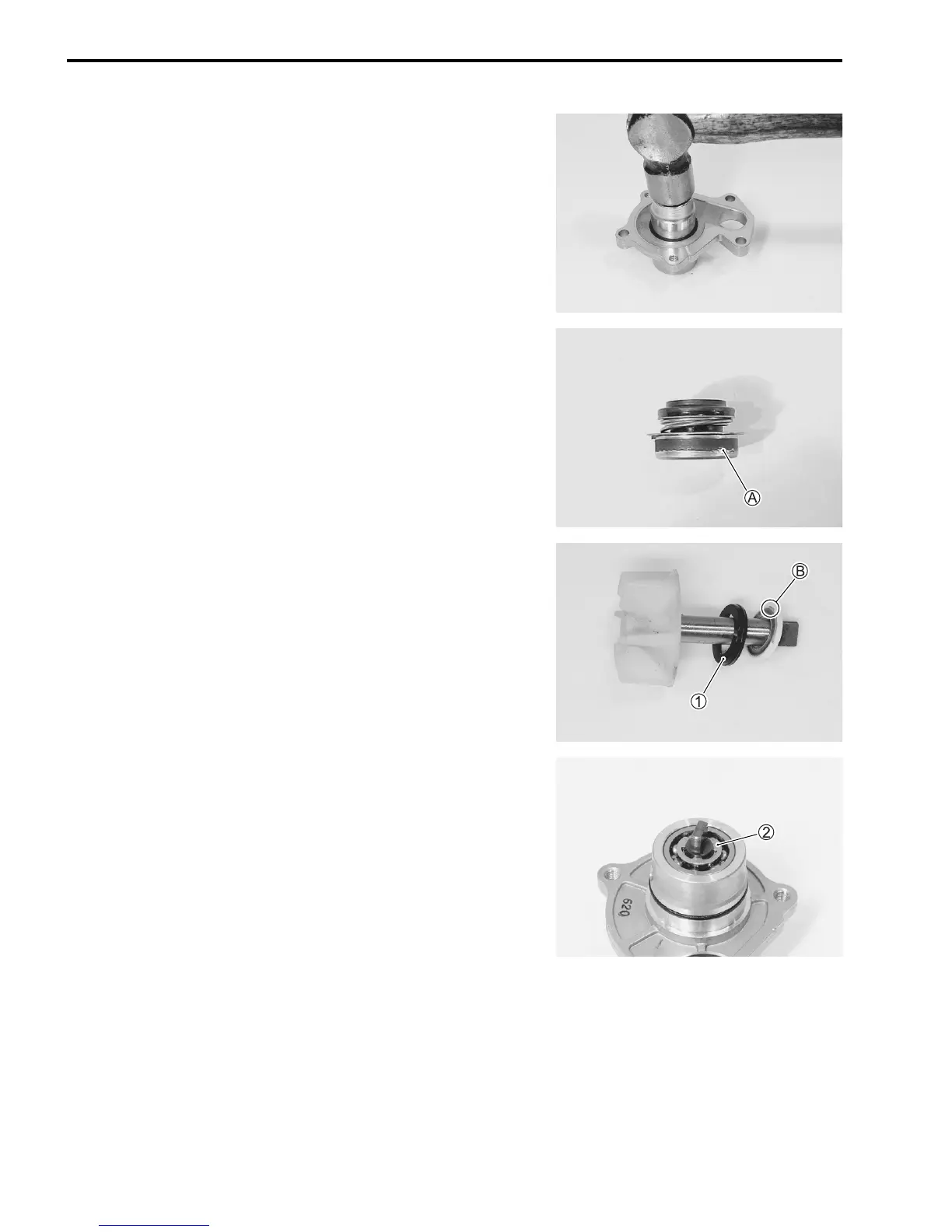

• Install the new mechanical seal using a suitable size socket
wrench.
NOTE:
On the new mechanical seal, the sealer

A has been applied.
• Install the rubber seal

1 into the impeller.
• After wiping off the oily or greasy matter from the mechanical
seal ring, install it into the impeller.
NOTE:
The paint marked side

B of mechanical seal ring faces the rub-
ber seal.
• Install the water pump shaft and the E-ring

2.
