COOLING AND LUBRICATION SYSTEM 7-17

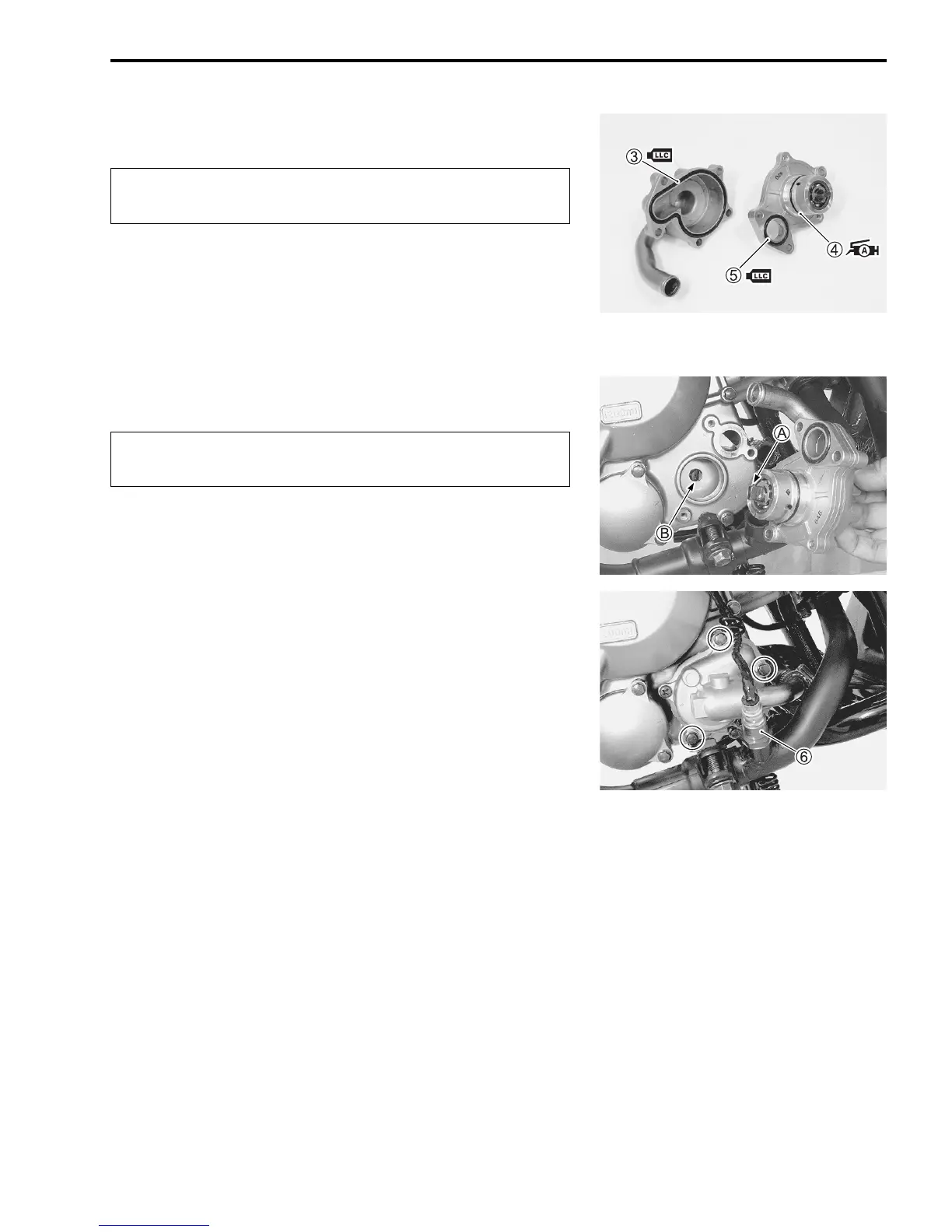

• Install the new O-rings
3,
4 and
5.
!
NOTE:
* Apply engine coolant to the O-ring
3,
5.
* Apply grease to the O-ring
4.
( 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
• Install the water pump assembly.
!
• Tighten the water pump mounting bolts securely.
• Install the HO2 sensor
6.
% HO2 sensor: 48 N·m (4.8 kgf-m)
• Pour engine coolant. ($2-12)
• Pour engine oil. ($2-9)
Use the new O-rings to prevent engine coolant leak-
age.
Align the boss
A of the water pump shaft end with the
slot
B of the oil pump shaft.
To Next Page
