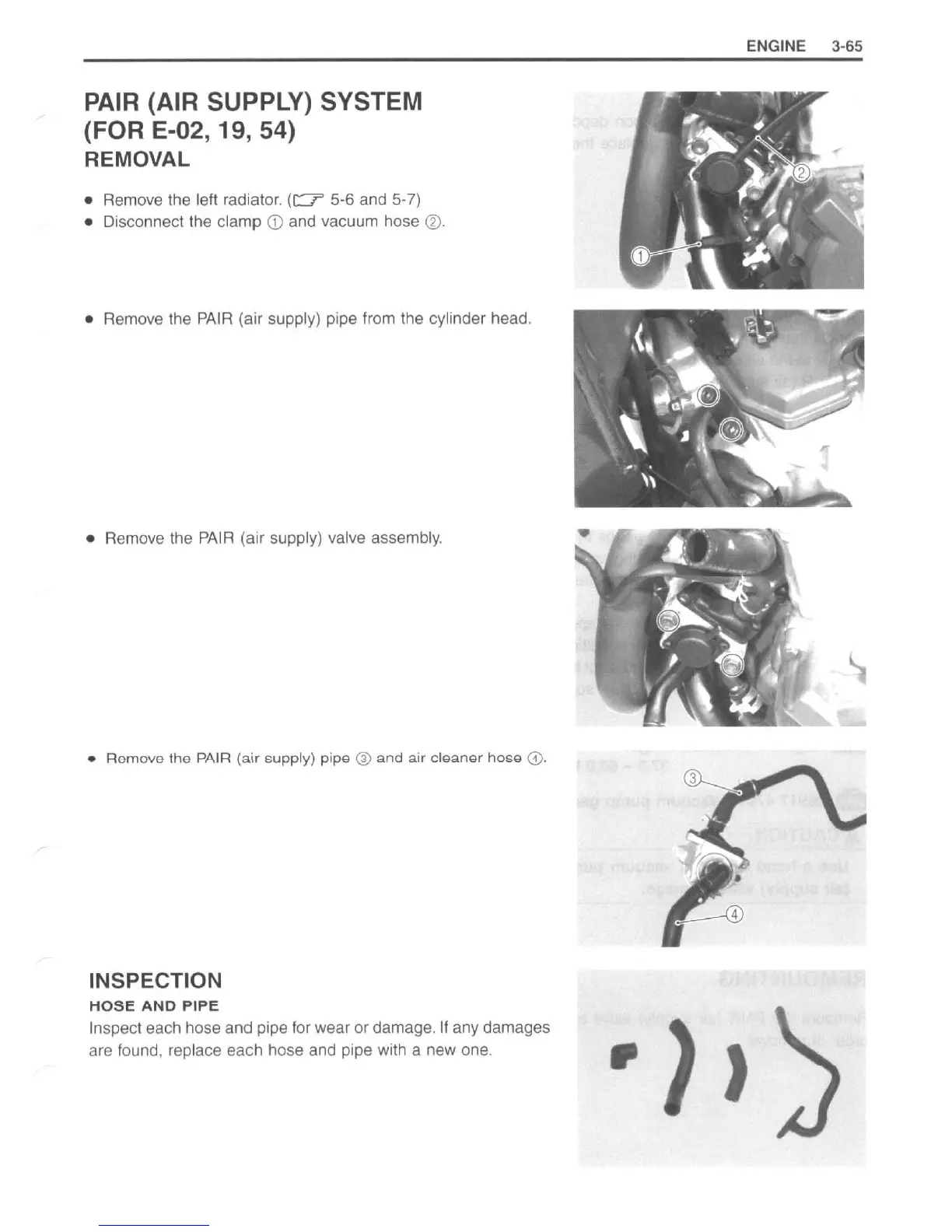

PAIR (AIR SUPPLY) SYSTEM
(FOR E-02, 19, 54)
REMOVAL
• Remove the left radiator. (c::::T' 5·6 and 5·7)
•
Disconnect the clamp CD and vacuum hose ill·
• Remove the PAIR (air supply) pipe from the cylinder head.
• Remove the PAIR (air supply) valve assembly.
• Remove the PAIR (air supply) pip" @ and air cl"an"r hos" CD .
INSPECTION
HOS E AND PIPE
Inspect each hose and pipe for wear or damage. If any damages
are found,
replace each hose and pipe with a new one.
ENGINE 3·65
•
)
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
