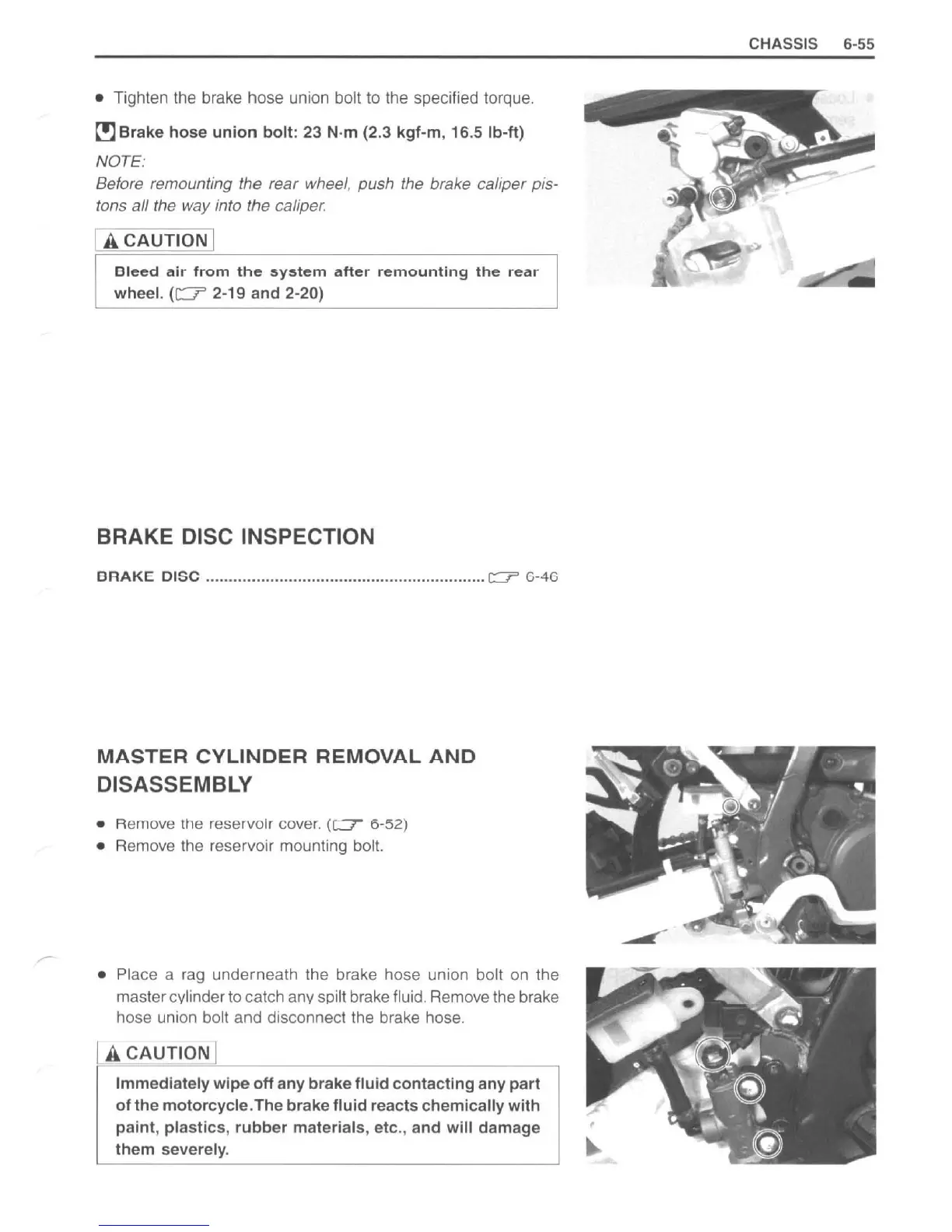

• Tighl en Ihe brake hose union boll to the specified lorque.
(!) Brake hose union bolt : 23 N·m (2.3 kgf-m, 16.5 Ib-ft)
NOTE:
Before remounting the rear wheel, push the brake caliper pis-
tons all th e way into the caliper.
I A CAUTION I
Bleed air from the system lIIfter remounting the fellir
wheel. (c:::T 2-19 and 2-20)
BRAKE DISC INSPECTION
BRAKE DISC .. ....... .............................. ...................... c::::r 6-46
MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Remove the reservoir cover. (eJ" 6-52)
• Remove the reservoir mounting bolt.
• Place
a rag underneath the brake hose union boll on the
master
cylinder 10 catch any spilt brake fluid. Remove the brake
hose union
bolt and disconnect the brake hose.
[ A CAUTIO!'£]
Immediately wipe off any brake fluid contacting any part
of the motorcycle.The brake fluid reacts chemically with
paint , plastics , rubber materials, etc ., and will damage
them severely.
CHASSIS 6-55
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
