5-
10

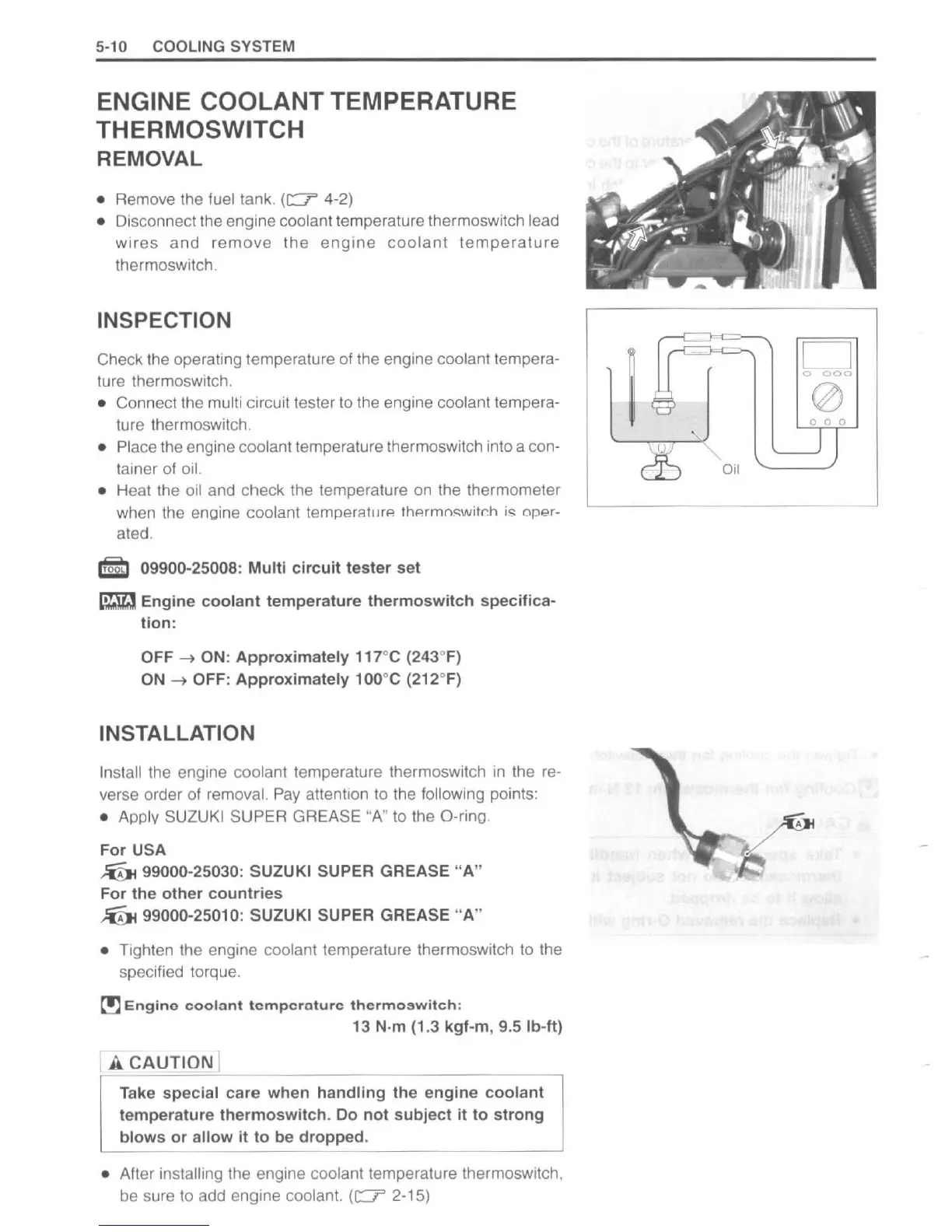

COOLING SYSTEM
ENGINE COOLANT TEMPERATURE
THERMOSWITCH
REMOVAL
• Remove the fuel tank.
(c::?
4-2)
• Disconnect the engine coolant temperature thermoswitch lead
wires
and
remove
the
engine
coolant
temperature
thermoswitch.
INSPECTION
Check the operating temperature
of
the engine coolant tempera-
ture thermoswitch.
• Connect the
mu
l
ti
circuit tester
to
the engine coolant tempera-
ture thermoswitch.
• Place the engine coolant temperature thermoswitch into a con-
tainer
of
oil.
•
Heat the
oil
and check the temperature
on
the thermometer
when the enoine coolant
temper8tllrp.
thp.rm()~wit"h
is
oper-
ated.
IS
09900-25008:
Multi
circuit
tester
set
_ Engine
coolant
temperature
thermoswitch
specifica-
tion:
OFF -+
ON
:
Approximately
117°C (243°
F)
ON
-+ OFF:
Approximately
100°C (212°F)
INSTALLATION
Install the engine coolant temperature thermoswitch
in
the
re-
verse order of removal.
Pay
attention to the
fo
llowing points:
• Apply SUZUKI SUPER GREASE "A" to the O-ring.
For USA
.0
99000-25030: SUZUKI SUPER GREASE "Au
For
the
other
countries
.0
99000-25010: SUZUKI SUPER GREASE "Au
•
Tighten the engine coolant temperature thermoswitch to the
specified torque.
~
Engine
coolant
temperature
thermosw
i
tch
:
13 N·m (1.3
kgf
-m, 9.5 Ib-ft)
ACAUTION
]
Take
spec
ial care
when
handling
the
engine
coolant
temperature
thermosw
i
tch
. Do
not
subject
it
to
strong
blows
or
allow
it to be
dropped
.
• After installing the engine coolant temperature thermoswitch,
be sure
to
add engine coolant.
(c::?
2-15)
D
o
000
(£)
i
Oil
