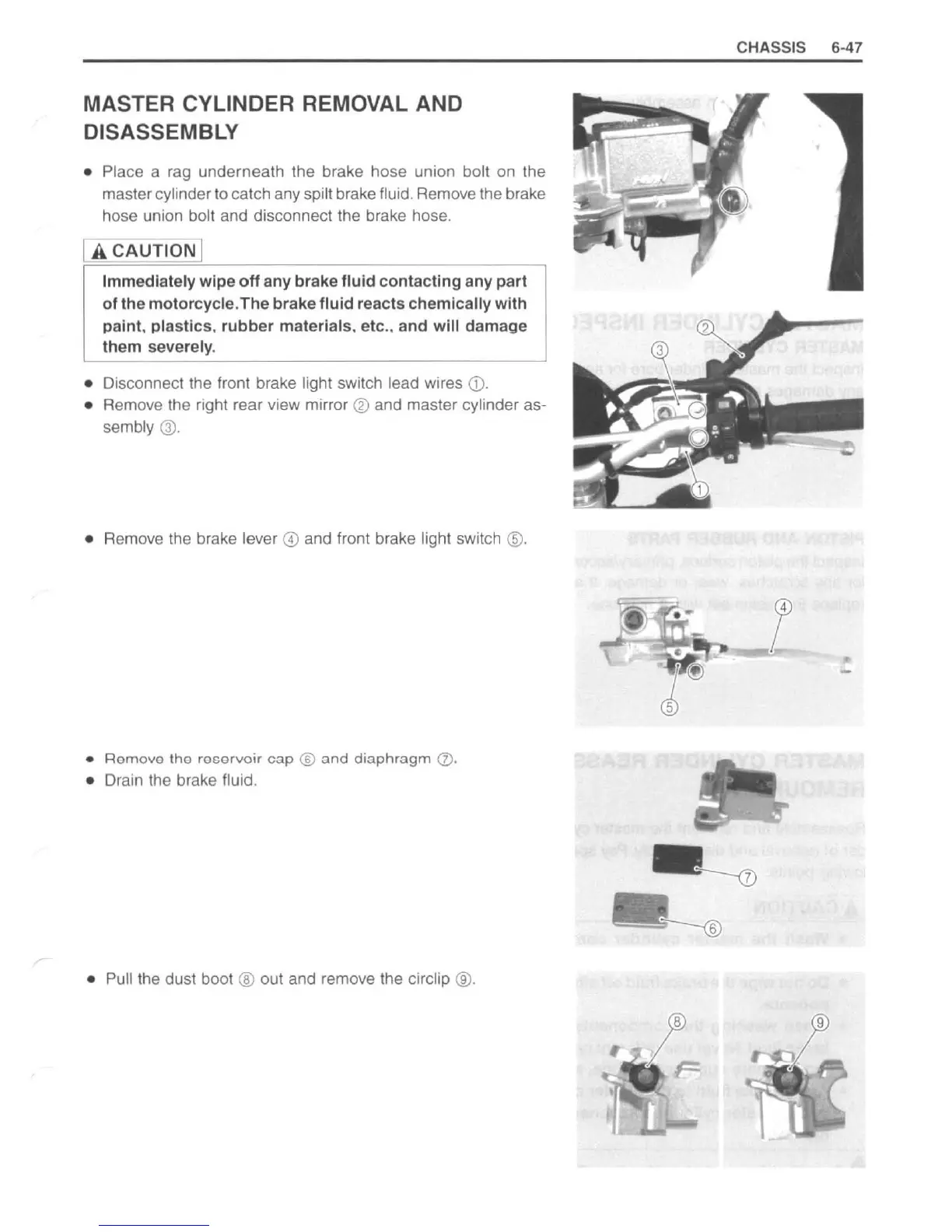

MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Place a rag underneath the brake hose union bolt on the
master cylinder
to catch any spilt brake fluid. Remove the brake
hose union
bolt and disconnect the brake hose.
[]t. CAUTiON]
Immediately wipe off any brake fluid contacting any part
of the motorcycle. The brake fluid reacts chemically with
paint. plastics. rubber materials. etc
.. and will damage
them severely.
• Disconnect the front brake light switch lead wires CD.
• Remove the right rear view mirror ® and master cylinder as-
sembly Q).
• Remove the brake lever 0 and front brake light switch @.
• Romov e the reservoir cap ® and diaphragm 0.
• Drain the brake fluid.
• Pull the dust boot ® out and remove the circlip @.
CHASSIS 6-47
