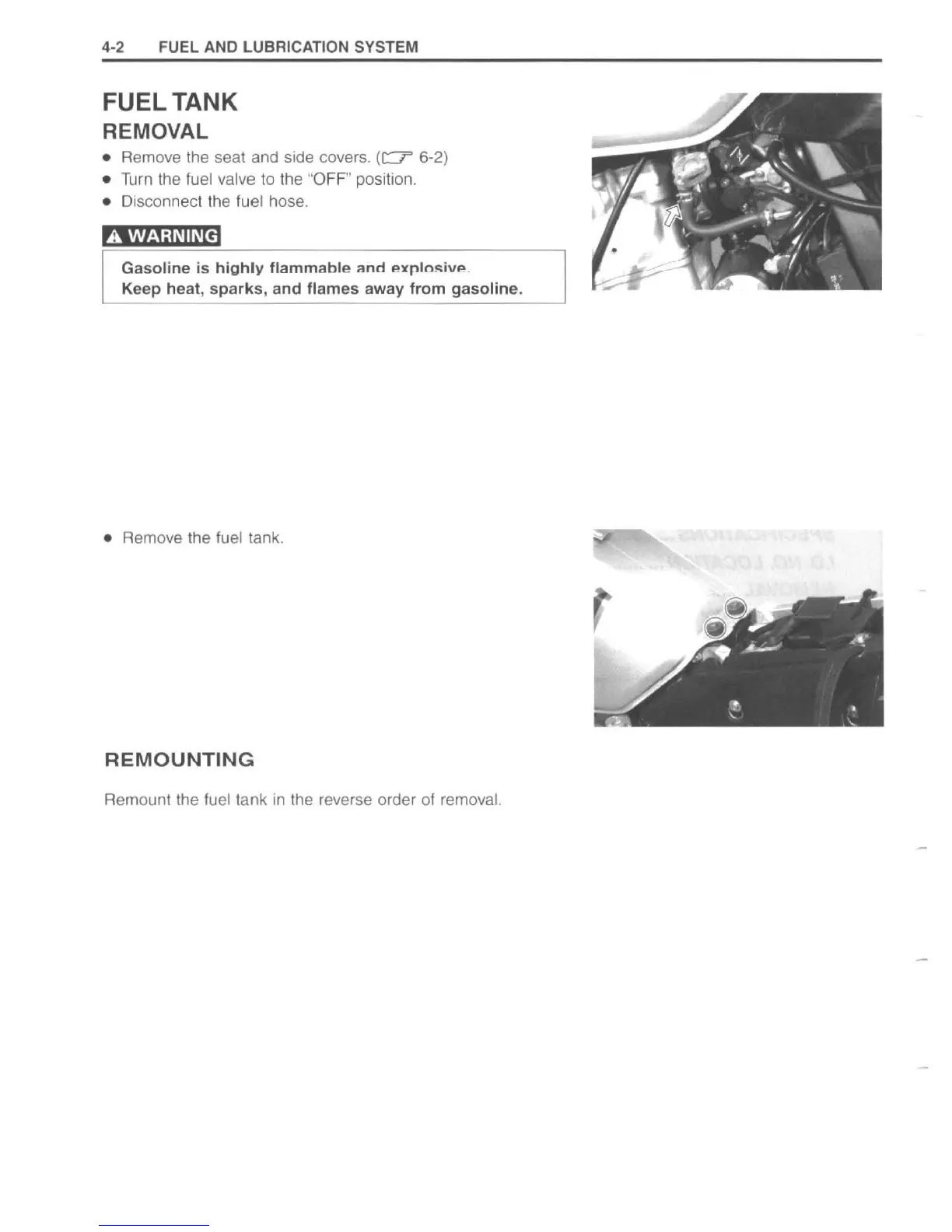

4-2 FUEL AND LUBRICATION SYSTEM
FUEL TANK
REMOVAL
• Remove the seat and side covers.
(c:::r
6-2)
•
Turn
the fuel
va
l
ve
to
the "OFF" position.
• Disconnect the fuel hose.
A WARNING
Gasoline
is
highly
flammable
and
eYl'lo"ive
.
Keep heat,
sparks
,
and
flames
away
from
gasoline.
• Remove the fuel tank.
REMOUNTING
Remount the fuel tank
in
the reverse order
of
removal.
http://www.motorcycle.in.th

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki drz 400 2007 and is the answer not in the manual?

Suzuki drz 400 2007 Specifications

General IconGeneral
Year2007
ManufacturerSuzuki
ModelDR-Z400
CategoryDual-sport
Displacement398 cc
Bore x Stroke90.0 mm x 62.6 mm
Compression Ratio11.3:1
Transmission5-speed
Final DriveChain
Front SuspensionTelescopic, coil spring, oil damped
Front BrakesSingle disc
Rear BrakesSingle disc
Front Tire80/100-21
Rear Tire120/90-18
Seat Height935 mm (36.8 in)
Fuel SystemMikuni BSR36 carburetor
IgnitionCDI
Rear SuspensionLink type, coil spring, oil damped
Ground Clearance300 mm
Wheelbase1, 485 mm
Fuel Capacity10.0 L (2.6 US gal)
Engine TypeSingle-cylinder, four-stroke
