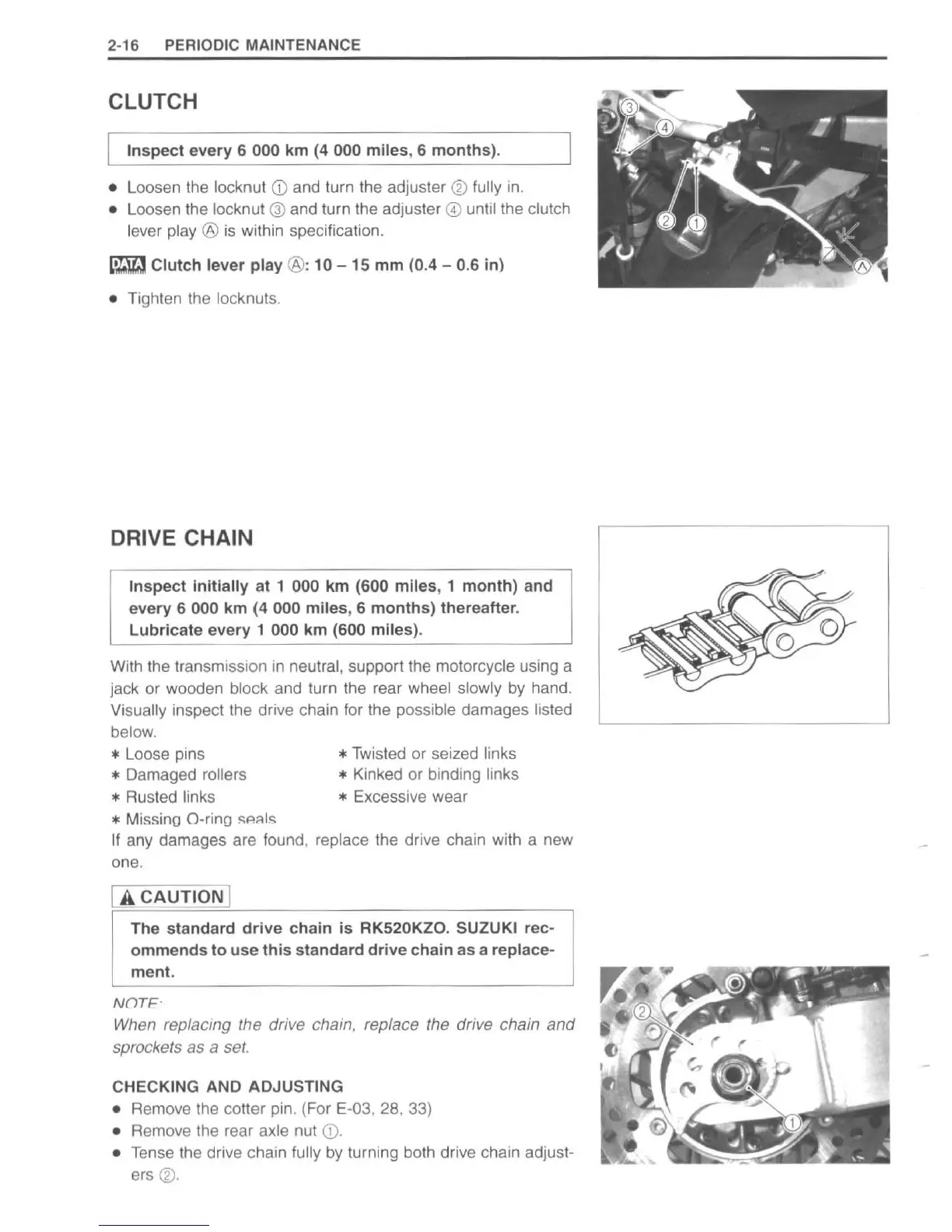

2-16 PERIODIC MAINTENANCE
CLUTCH
Inspect every 6 000 km (4 000 miles , 6 months) .
• Loosen the locknut 0 and turn the adjuster @ fully in.
• Loosen the locknul @ and turn the adjuster @ until the clutch
lever play @ is within specification.
_ Clutch lever play @: 10 -15 mm (0.4 - 0.6 in)
• Tighten the locknuts.
DRIVE CHAIN
Inspect initially at 1 000 km (600 miles , 1 month) and
every 6 000 km (4 000 miles , 6 months) thereafter .
Lubricate every 1 000 km (600 miles) .
With the transmission in neutral, support the motorcycle using a
jack or wooden block and turn the rear wheel slowly by hand.
Visually inspect the drive chain for the possible damages listed
below.
* Loose pins
* Damaged ro llers
* Rusted links
* Missino O-rino ~p'"I~
* Twisted or seized links
* Kinked or binding links
* Excessive wear
If any damages are found, replace the drive chain with a new
one.
U\. CAUTION I
The standard drive chain is RK520KZO. SUZUKI r ec-
ommends to use this standard drive chain as a replace-
ment.
NnTF '
When replacing the drive chain, replace the drive chain and
sprockets
as a set.
CHECKING AND ADJUSTING
• Remove the cotter pin. (For E-03, 28, 33)
• Remove the rear axle nut 0.
• Tense the drive chain fully by turning both drive chain adjust-
ers @.
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
