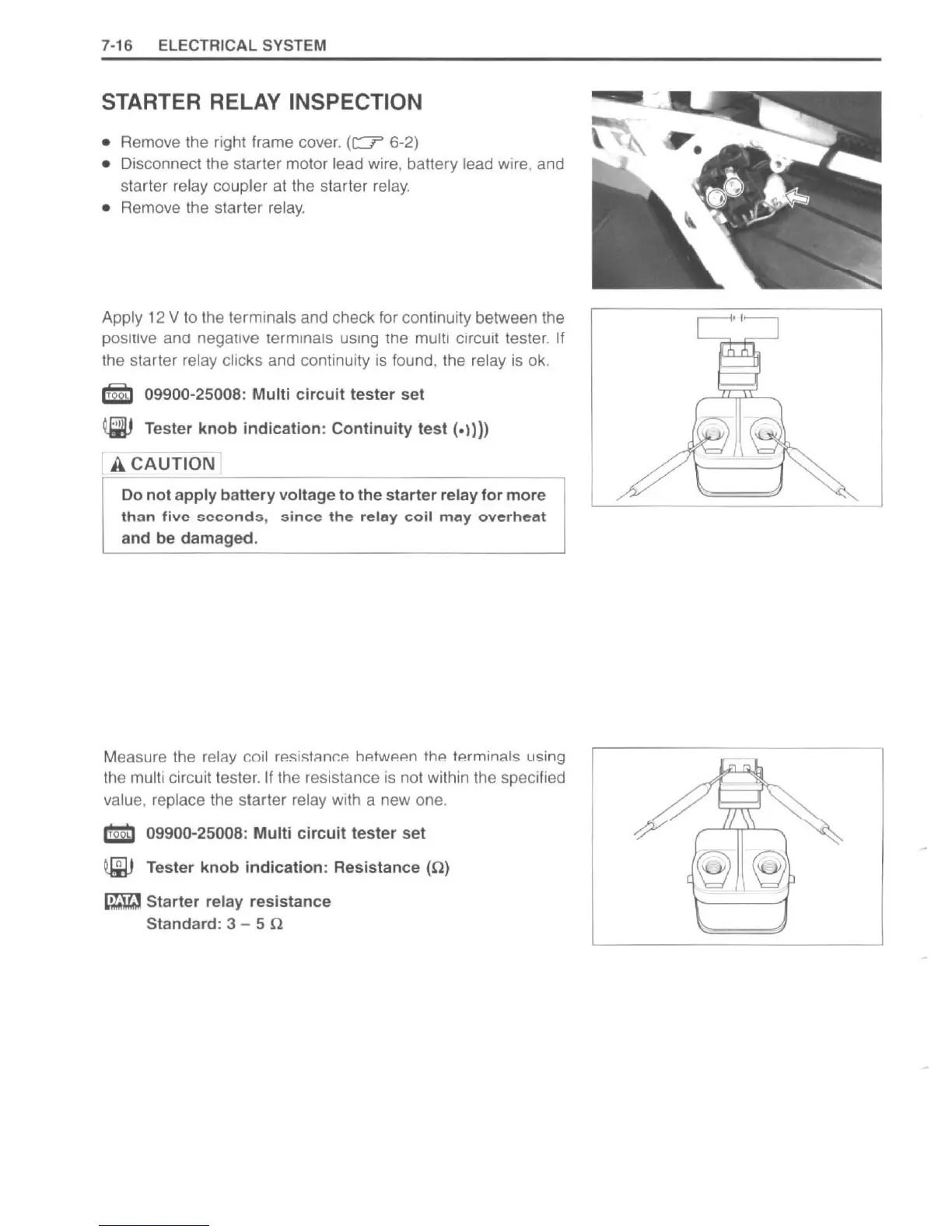

7-16 ELECTRICAL SYSTEM
STARTER RELAY INSPECTION
• Remove the righl frame cover. (c::? 6-2)
• Disconnect the starter motor lead wire, battery lead wire, and
starter
re lay coupler at the slarter relay.
• Remove the starter relay.
Apply 12 V to the terminals and check for continuity between the
positive and negative
terminals uSing the multi circuit tester. II
the starter relay clicks and continuity is found, the relay is ok.
S 09900-25008: Multi circuit tester set
~ Tester knob indication : Continuity test (oIl))
[ ACAUTION J
Do not apply battery voltage to the starter relay for more
than five seconds , since the r elay coil may overhel!lt
and be damaged.
Measure the relay coil resist FIn"F! hF!twF!F!n thA t "rm inals using
the
multi circuit tester. If the resistance is not within the specified
value, replace the starter
relay with a new one.
S 09900-25008: Multi circuit tester set
IW Tester knob indication : Resistance (Q)
~ Starter relay resistance
Standard : 3 - 5 Q
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
