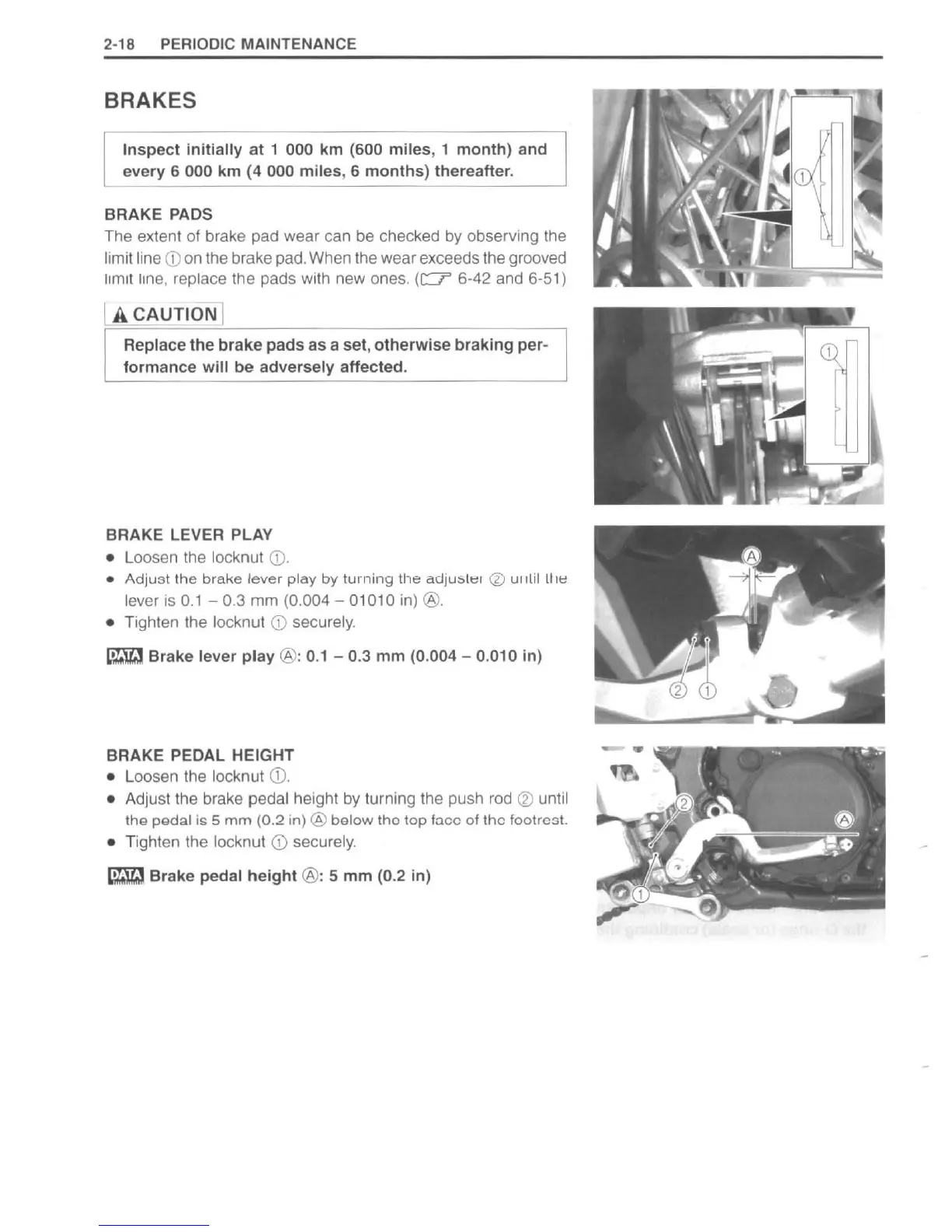

2-18 PERIODIC MAINTENANCE
BRAKES
Inspect initially at 1 000 km (600 miles , 1 month) and
every 6
000 km (4 000 miles , 6 months) thereafter.
BRAKE
PADS
The extent of brake pad wear can be checked by observing the
limit line
CD on the brake pad. When the wear exceeds the grooved
limit line, replace the pads with new ones.
(c:::7' 6-42 and 6·51)
U\ CAUTIO N]
Replace the brake pads as a set , otherwise braking per-
formance will be adversely affected.
BRAKE LEVER
PLAY
•
Loosen the locknut CD .
• Adjust the brake lever play by turning tile adju51'" ® uilUI II",
lever is 0.1 - 0.3 mm (0.004 - 01010 in) ®.
• Tighten the locknut CD securely.
~ Brake lever play ®: 0.1 - 0 .3 mm (0.004 - 0.010 in)
BRAKE PEDAL HEIGHT
• Loosen the locknut CD .
• Adjust the brake pedal height by turning the push rod ® until
the pedal is 5 mm (0.2 in) @ below tho top faco of the fo o tr est.
• Tighten the locknut CD securely.
~ Brake pedal height ®: 5 mm (0.2 in)
