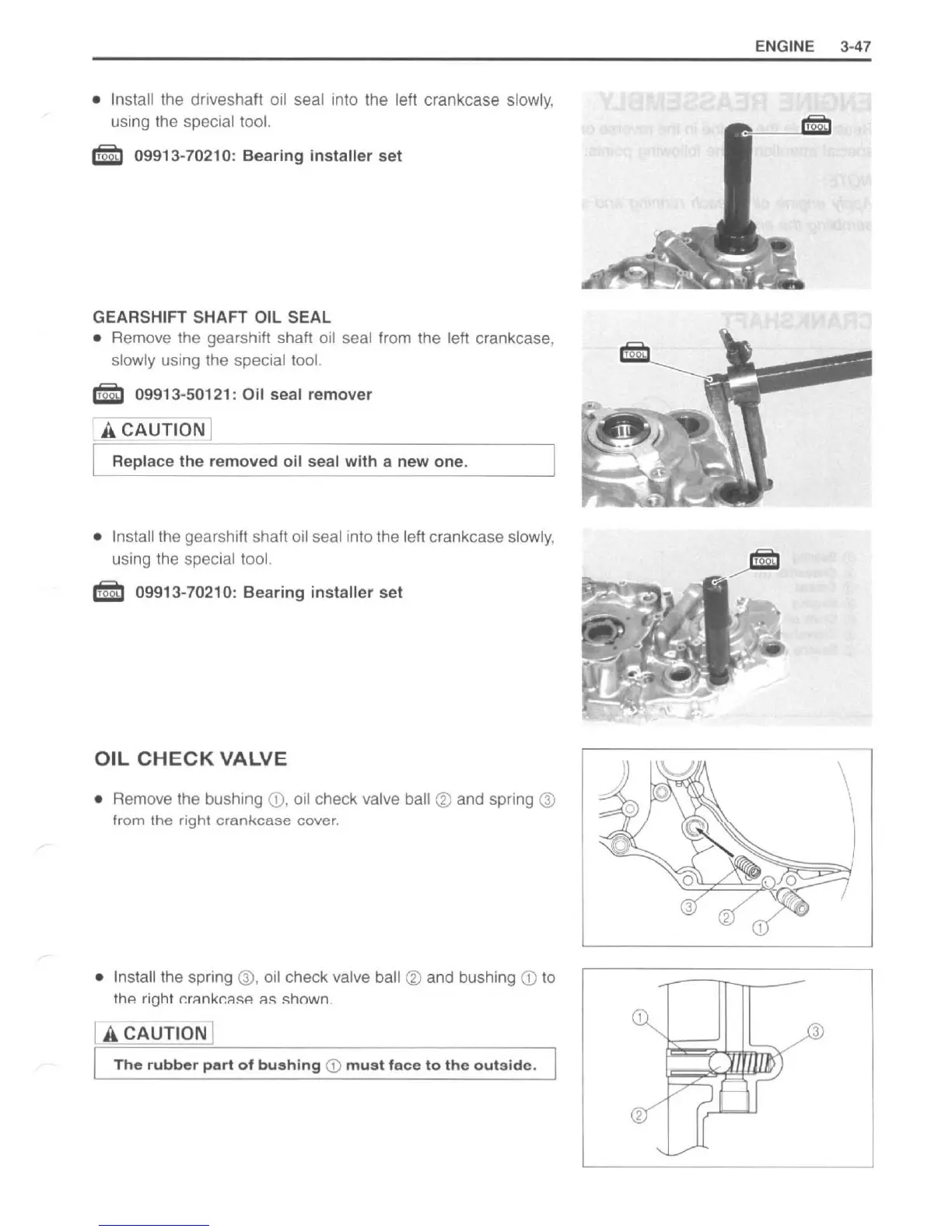

• Install the driveshaft oil seal into the left crankcase slowly,
using the special
tool.
S 09913-70210: Bearing installer set
GEARSHIFT SHAFT OIL SEAL
•
Remove the gearshift shaft oil seal from the left crankcase,
slowly using the special
tool.
S 09913-50121: Oil seal remover
A CAUTION ]
Replace the removed oil seal with a new one .
• Install the gearshift shaft oil seal into the left crankcase slowly,
using the special tool.
S 09913-70210: Bearing installer set
OIL CHECK VALVE
• Remove the bushing <D, oil check valve ball @ and spring @
from the right cra.nkcase cover .
• Install the spring @, oil check valve ball CV and bushing <D to
thp. riaht r.r;:tnkr.rI~p. ;t!=; ~h()wn .
] A CAUTION]
The rubber part of bushing <D must face to the outside .
ENGINE 3-47
