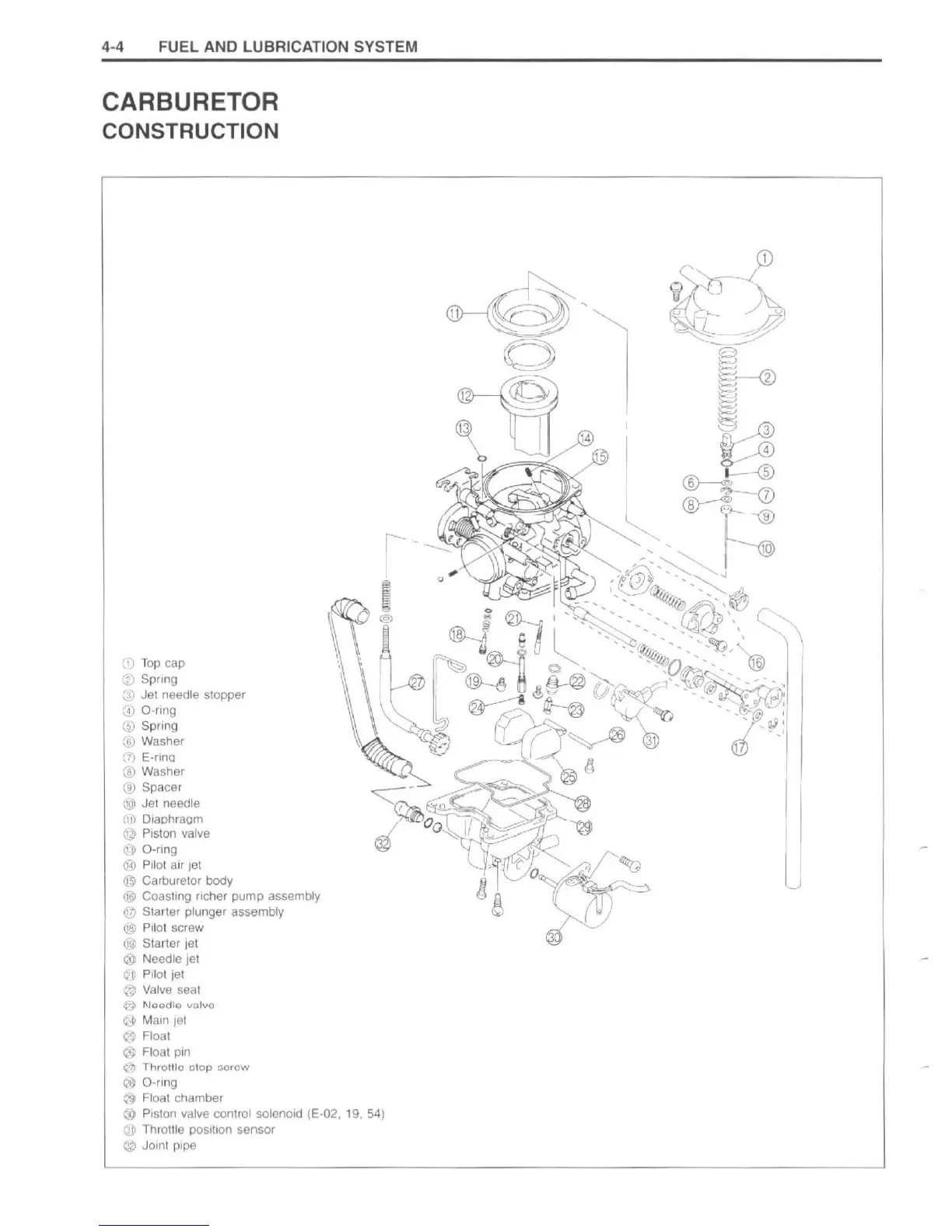

4-4 FUEL AND LUBRICATION SYSTEM
CARBURETOR
CONSTRUCTION
ill Top cap
® Spreng
J) Jet needle stopper
® D-nng
® Spring
® Washer
(7) E-rina
® Washer
® Spacer
<@ Jet needle
(ti) Dlaohraom
@ Piston valve
@ O-ring
@ Pilot air Jel
@ Carburetor body
@ Coasting richer pump assembly
@ Starter plunger assembly
Q§) Pilot screw
@ Starter jet
Q) Needle Jel
Qfl Piiol Jet
~ Valve seal
@ "'loodlo VQllvo
~ Main Jel
($ Floa.
~ Float pIn
~~ Throttlo otop 3crcw
~ O·"ng
® Float chamber
(9 Piston valve control solenoid ( E-02. 19, 54)
'>J.P Throllle position sensor
@ Jomt pipe
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
