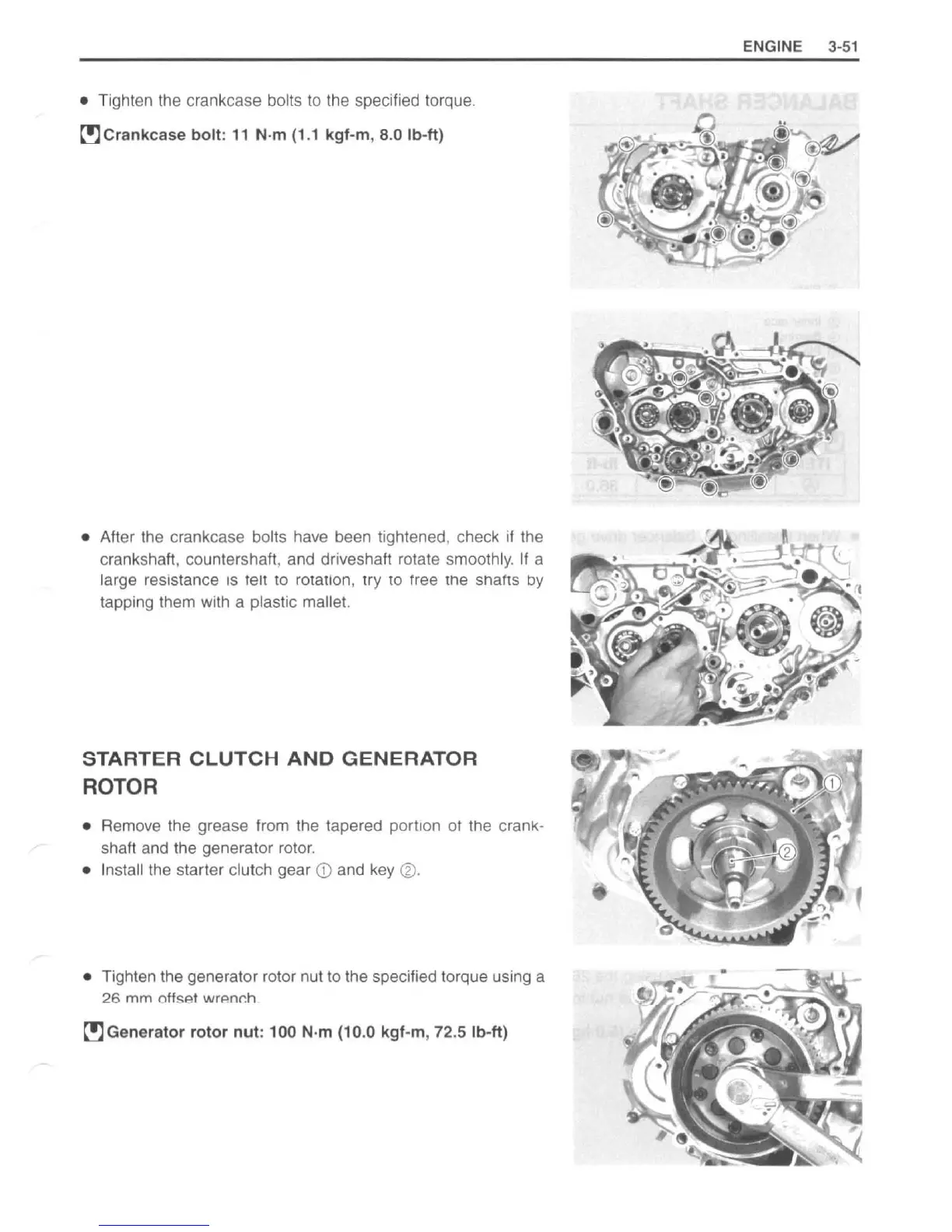

• T ig ht en the crankcase bolts to the specified torque.
~ Crankcase bolt : 11 N·m (1 .1 kgf-m, B.O Ib- It )
• After the crankcase boits have been tightened, check if the
crankshaft, counters haft, and driveshaft rotate
smoothly. If a
large resistance IS leI! to rotation , try to free me snafts by
tapping them with a plastic mallet.
STARTER CLUTCH AND GENERATOR
ROTOR
• Remove the grease from the tapered portion 01 tne c ranK-
shaft and the generator rotor.
• Install the starter clutch gear Q) and key (1) .
• Tighten the generator rotor nut to the specifi ed torque using a
26 mm offset wrAnr.h
~Generator rotor nut: 100 N·m (10.0 kgf -m, 72.5 Ib- It)
ENGINE 3- 51
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
