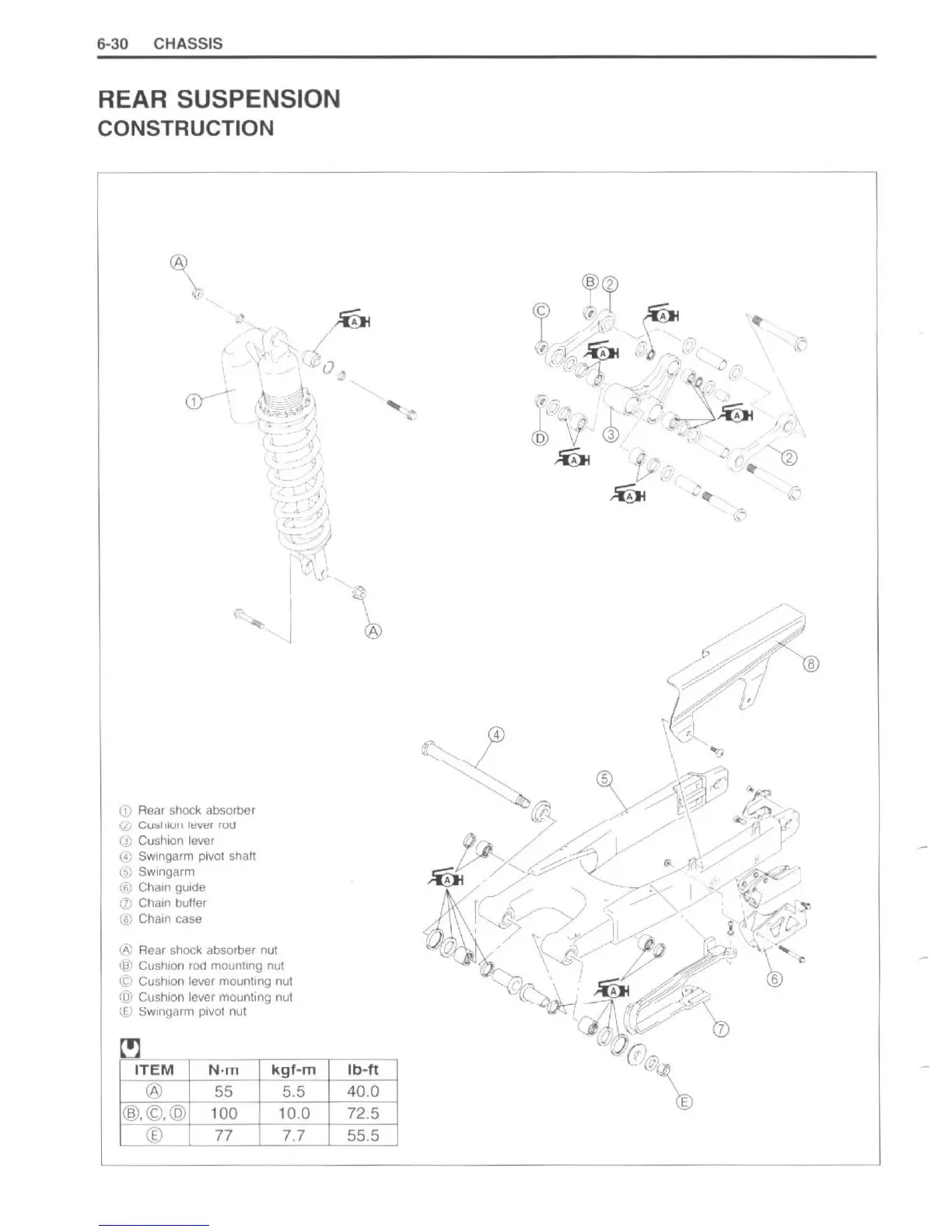

6-30 CHASSIS
REAR SUSPENSION
CONSTRUCTION
CD Rear shock absorber
(j) Cu::.lliull level ruO
(i) Cushion lever
(~ Swmgarm pivot shaft
® SWlngarm
® Chain gUide
CD Chain buffer
@ Chain case
J
@ Rear shock absorber nul
® Cushion rod mounting nut
© Cushion lever mounllng nut
(Q) Cushion lever mounting nut
l;J SWlngarm pivot nut
ITEM N·m
kgf-m
®
55
5.5
@, ©,@ 1 00 10.0
®
77 7.7
\
Ib-t!
40.0
72 .5
55.5
