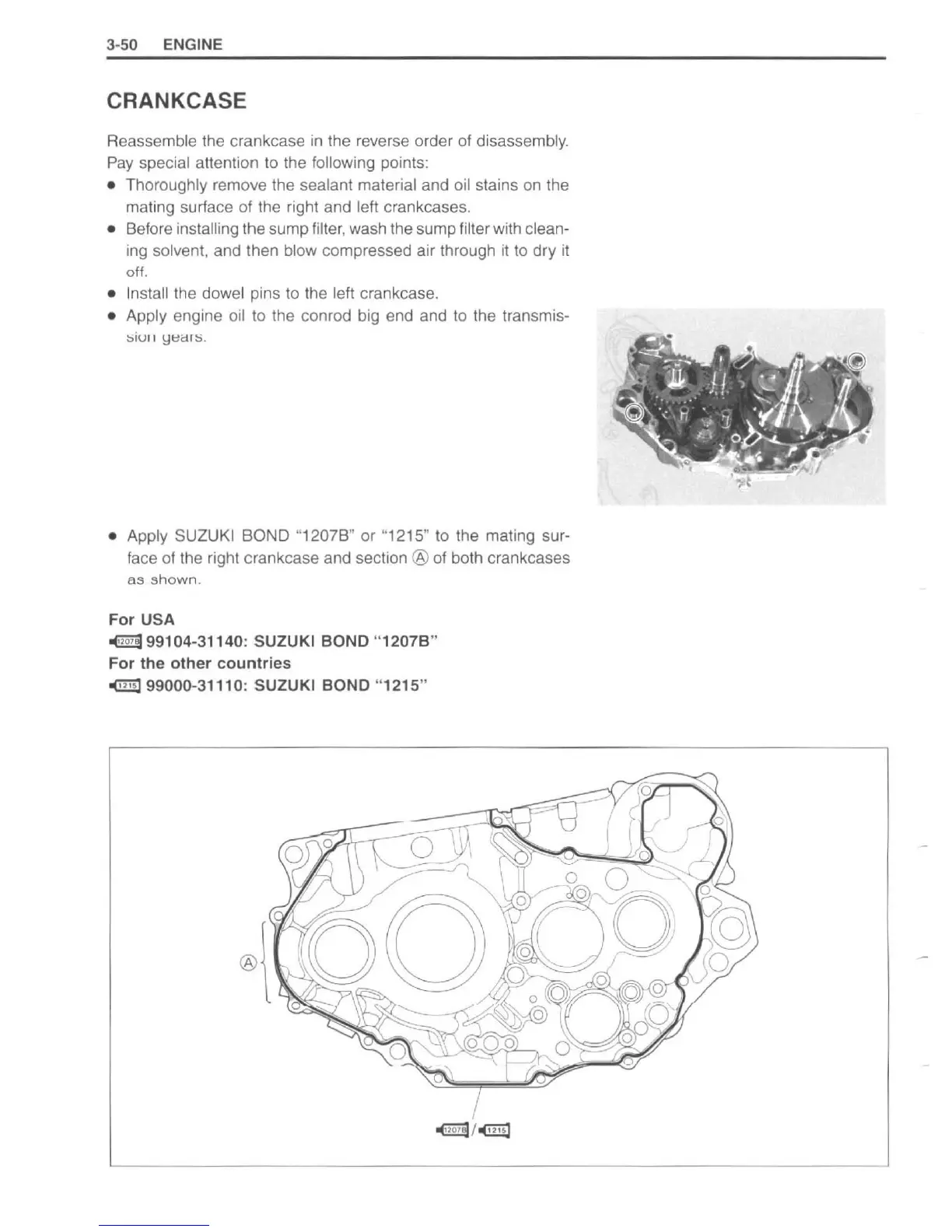

3- 50 ENGINE
CRANKCASE
Reassemble the crankcase in the reverse order of disassembly.
Pay special attention to the following points:
• Thoroughly remove the sealant material and oil stains on the
mating surface of the right and
left crankcases.
• Before installing the sump filter, wash the sump filter with clean-
ing solvent, and then blow compressed air through it to dry it
off.
• In stall the dowel pins to the left crankcase.
• Apply engine oil to the conrod big end and to the transmis-
:siull yei:tr~.
• Apply SUZUKI BOND "1207B" or "12 15 " to t he mating sur-
face of the right crankcase and section ® of both crankcases
8S shown.
For USA
e 99104-31140: SUZUKI BOND "1207B"
For the other countries
€lil99000-31110 : SUZUKI BOND "1215"
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
