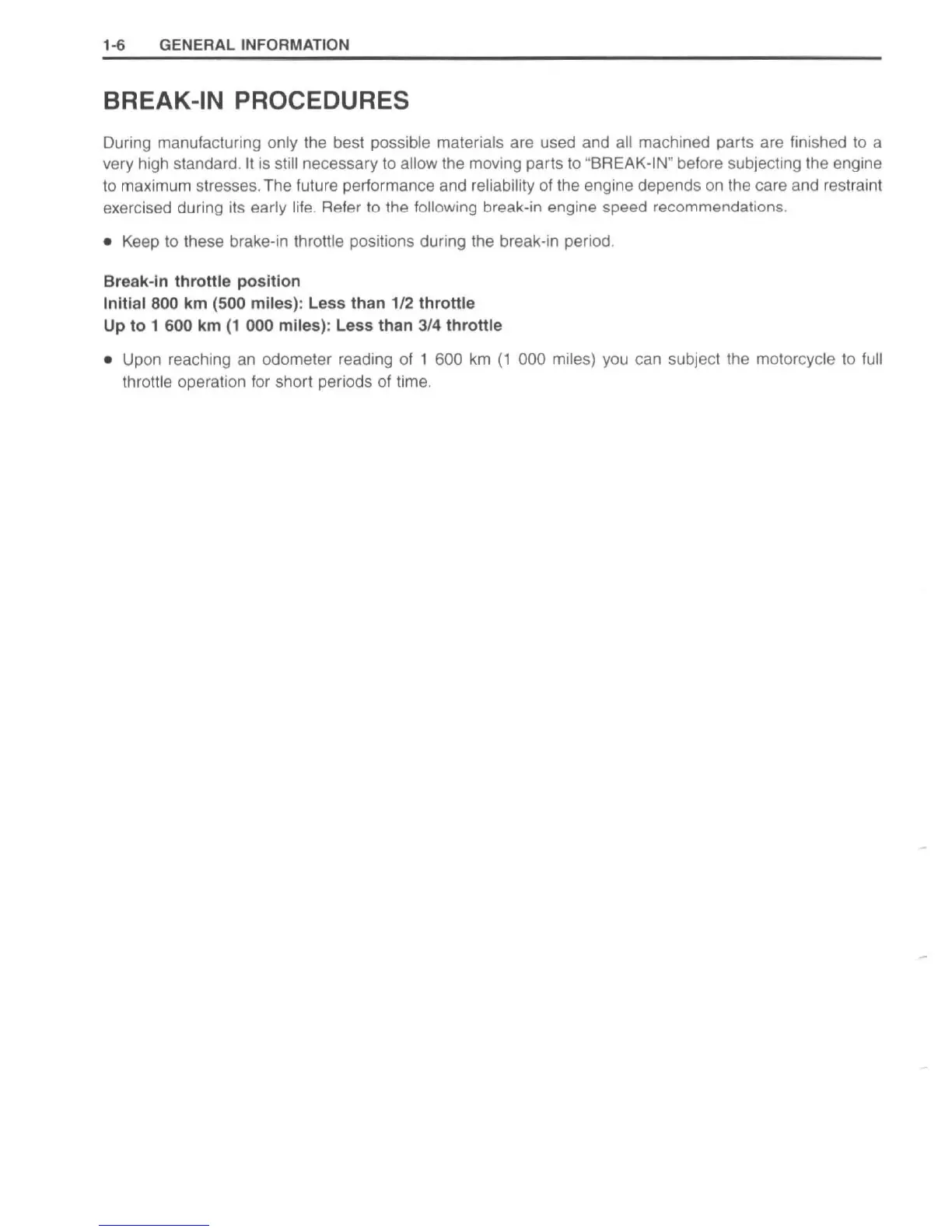

1-6 GENERAL INFORMATION
BREAK-IN PROCEDURES
During manufacturing only the best possible materials are used and all machined parts are finished to a
very high standard.
It is still necessary to allow the moving parts to "BREAK-IN" before subjecting the engine
to maximum stresses. The future periormance and reliability of the engine depends on the care and restraint
exercised during its
early life. Refer to the following break-in engine speed recommendations.
• Keep to these brake-in throttle positions during the break-in period.
Break-in
throttle position
Initial 800 km (500 miles): Less than 112 thrott le
Up
to 1 600 km (1 000 m il es ): Less than 3/4 throttle
• Upon reaching an odometer reading of 1 600 km (1 000 miles) you can subject the motorcycle to full
throttle operation for short periods of time.
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
