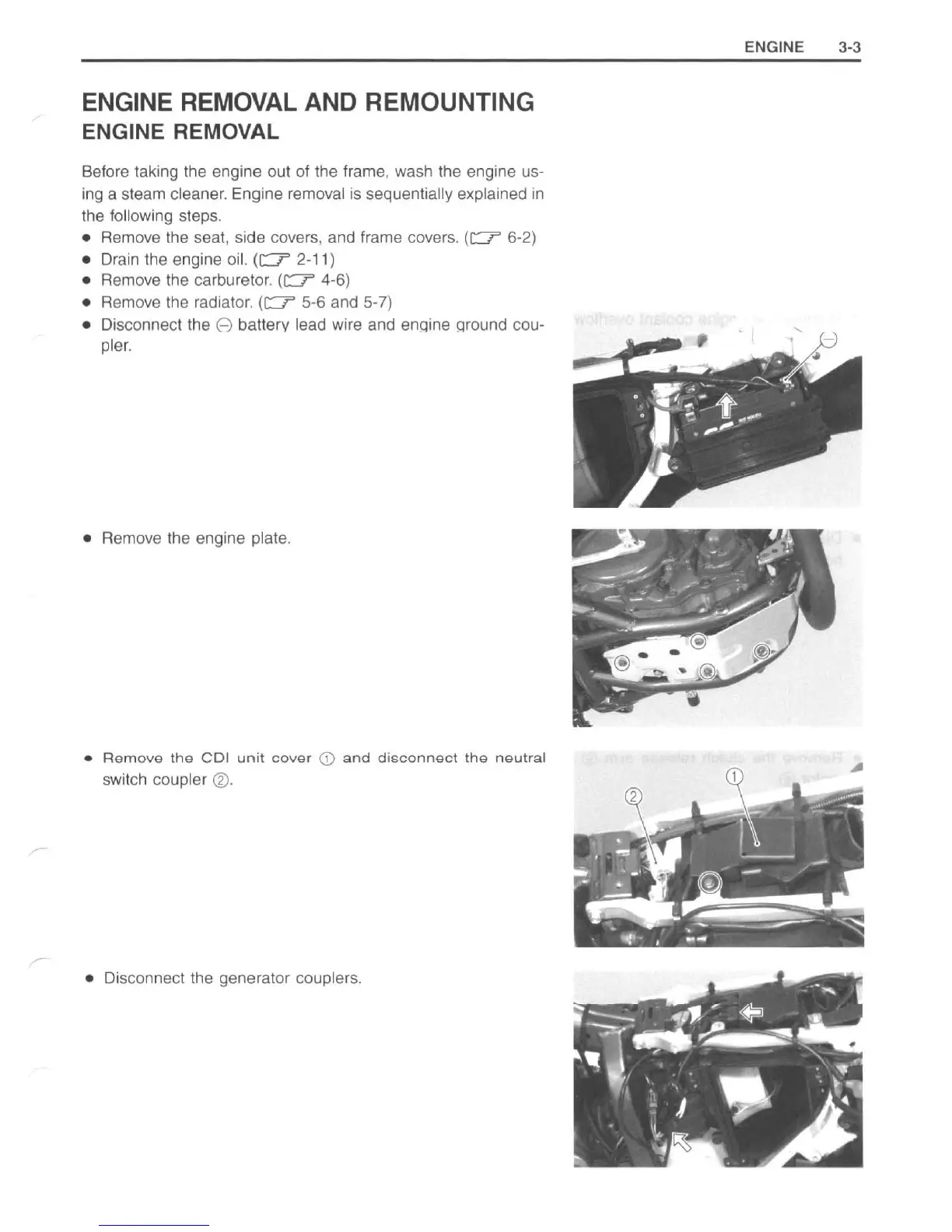

ENGINE REMOVAL AND REMOUNTING
ENGINE REMOVAL
Before laking the engine out of the frame, wash the engine us-
ing a steam cleaner. Engine removal is sequenlially explained in
the following steps.
• Remove the seat, side covers, and frame covers. (c::::r 6-2)
• Drain the engine oil. (c::::r 2-11)
• Remove the carburetor. (c::::r 4-6)
• Remove the radialor. (c::::r 5-6 and 5-7)
• Disconnecllhe 8 baltery lead wire and enqine qround cou-
pler.
•
Remove Ihe engine plate.
• Remove the COl unit cover CD and disconnect the neutral
switch coupler ®.
• Disconnecl the generator couplers.
ENGINE 3-3
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
