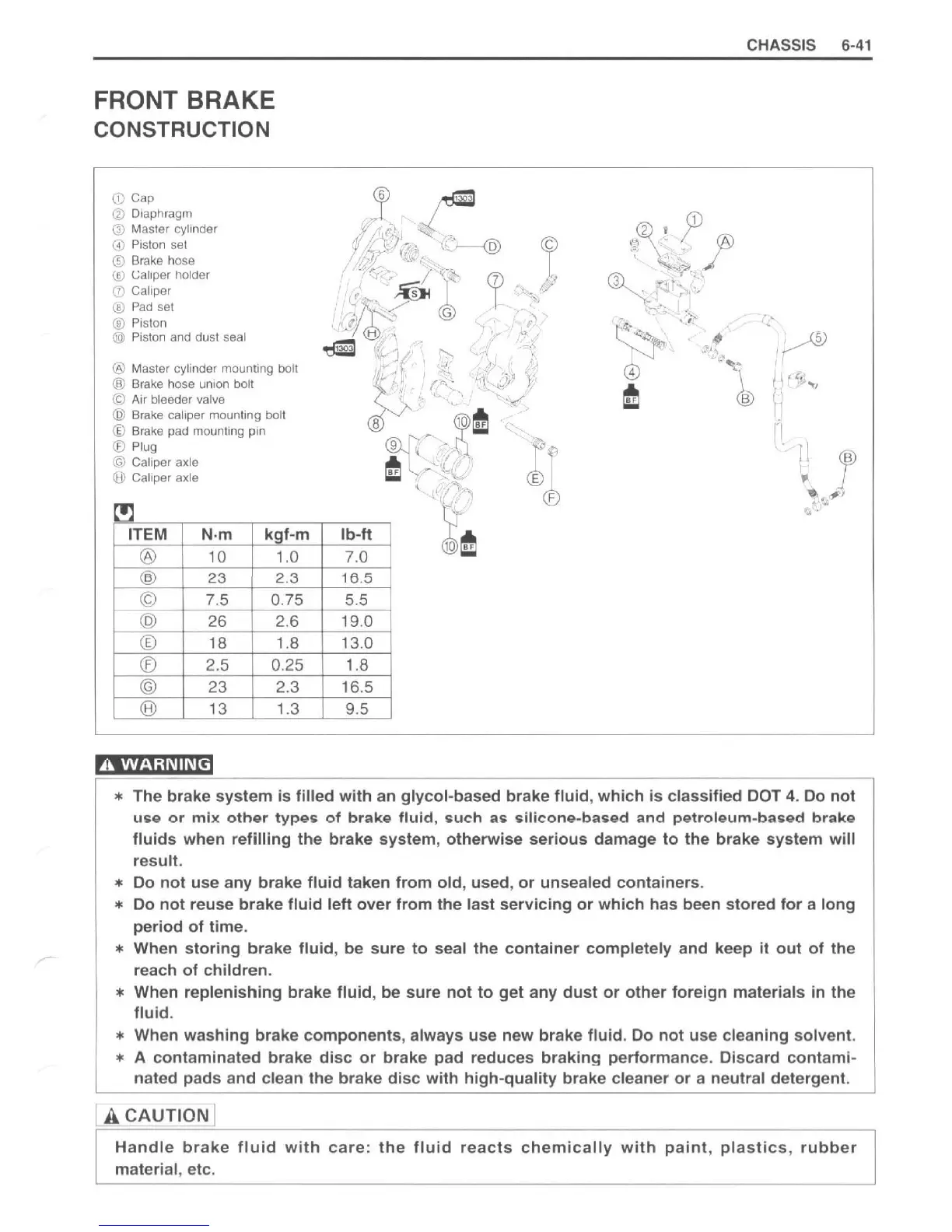

FRONT BRAKE
CONSTRUCTION
CD Cap
® Diaphragm
0) Masler cylinder
@
Pi ston sel
® Brake ho se
(§) caliper holder
CD Caliper
tID Pad se t
® Piston
@) Piston and dust seal
® Master cylinder mounting bolt
@ Brake hose union bolt
© Air bleeder valve
@ Brake caliper mounting bolt
® Brake pad mounting pin
® Plug
@ Caliper axle
® Caliper axle
C!J
ITEM
@
®
©
@
®
®
®
®
N·m
10
23
7.5
26
18
2.5
23
13
A WARNING
kgf-m
1.0
2.3
0.75
2.6
1.8
0.25
2.3
1.3
Ib-ft
7.0
16 .5
5.5
1 9. 0
13.0
1.8
16.5
9.5
CHASSIS 6-41
, ,
"
* The brake system is filled with an glycol-based brake fluid , which is classified DOT 4. Do not
use or mix other types of brake fluid , such as silicone-based and petroleum - based brake
fluids when refilling the brake system , otherwise serious damage to the brake system will
result .
* Do not use any brake fluid taken from old , used, or unsealed containers.
* Do not reuse brake fluid left over from the last servicing or which has been stored for a long
period of time.
* When storing brake fluid , be sure to seal the container completely and keep it out of the
reach
of children.
* When replenishing brake fluid , be sure not to get any dust or other foreign materials in the
fluid .
* When washing brake components , always use new brake fluid . Do not use cleaning solvent.
* A contaminated brake disc or brake pad reduces braking performance . Discard contami -
nated pads
and clean the brake disc with high-quality brake cleaner or a neutral detergent.
[A CAUTION ]
Handle brake fluid with care: the fluid reacts chemically with paint , plastics , rubber
material, etc .
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
