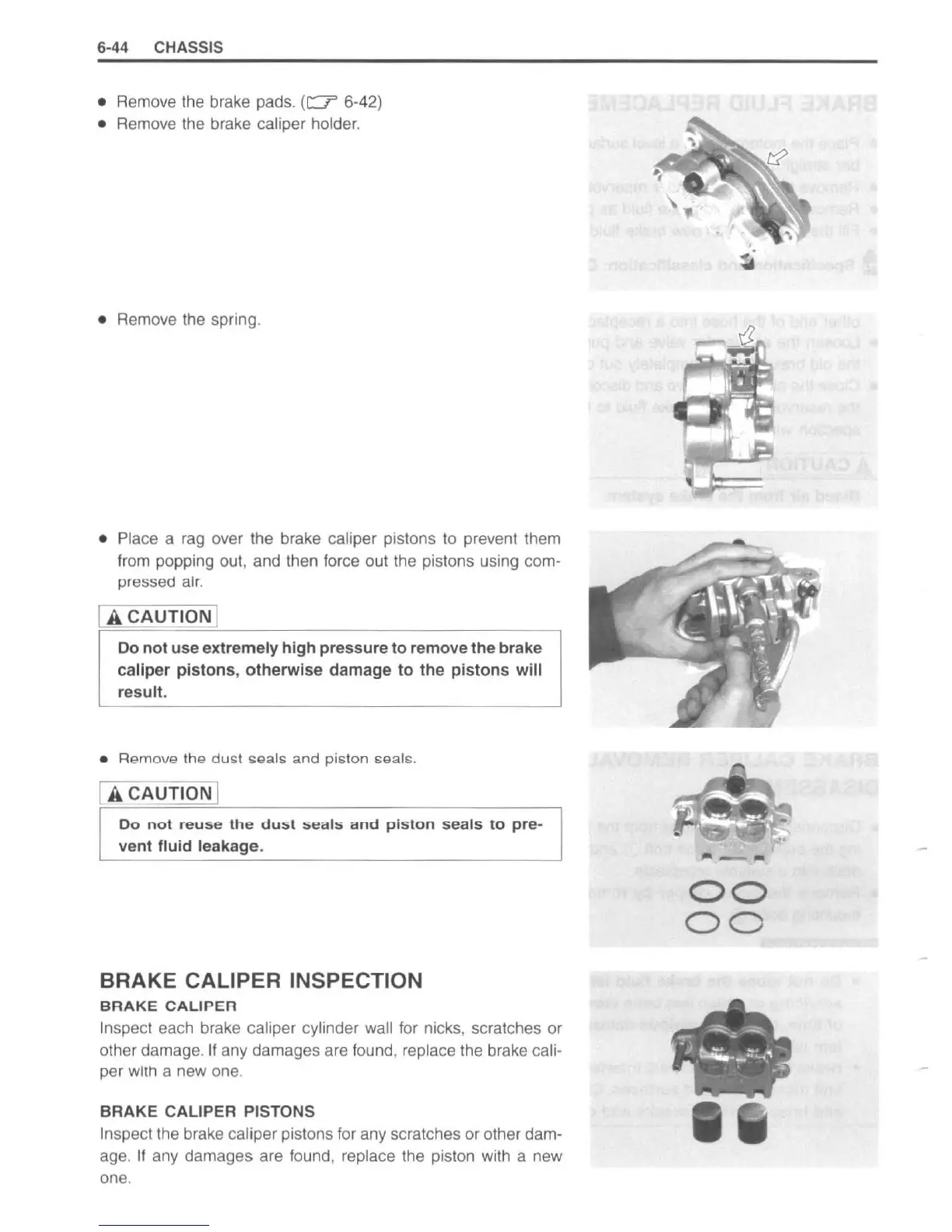

6-44 CHASSIS
• Remove the brake pads. (c::7' 6-42)
• Remove the brake caliper holder.
• Remove the spring.
• Place a rag over the brake caliper pistons to prevent them
from popping out, and then force out the pistons using
com-
pressed air.
I A CAUTION I
Do not use extremely high pressure to remove the brake
caliper pistons, otherwise damage to the pistons will
result.
• R emove the dust seals and piston ssals.
[A CAUTION I
Do not reuse the dust se .. l" and piston seals to pre-
vent fluid leakage.
BRAKE CALIPER INSPECTION
BRAKE CALI PEn
Inspect each brake caliper cylinder wall for nicks, scratches or
ot her damage. If any damages are found, replace the brake cali-
per wltn a new one.
BRAKE CALIPER PISTONS
In spect the brake caliper pistons for any scratches or other dam-
age. If any damages are found, replace the piston with a new
one.
...._ - ~
00
00
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
