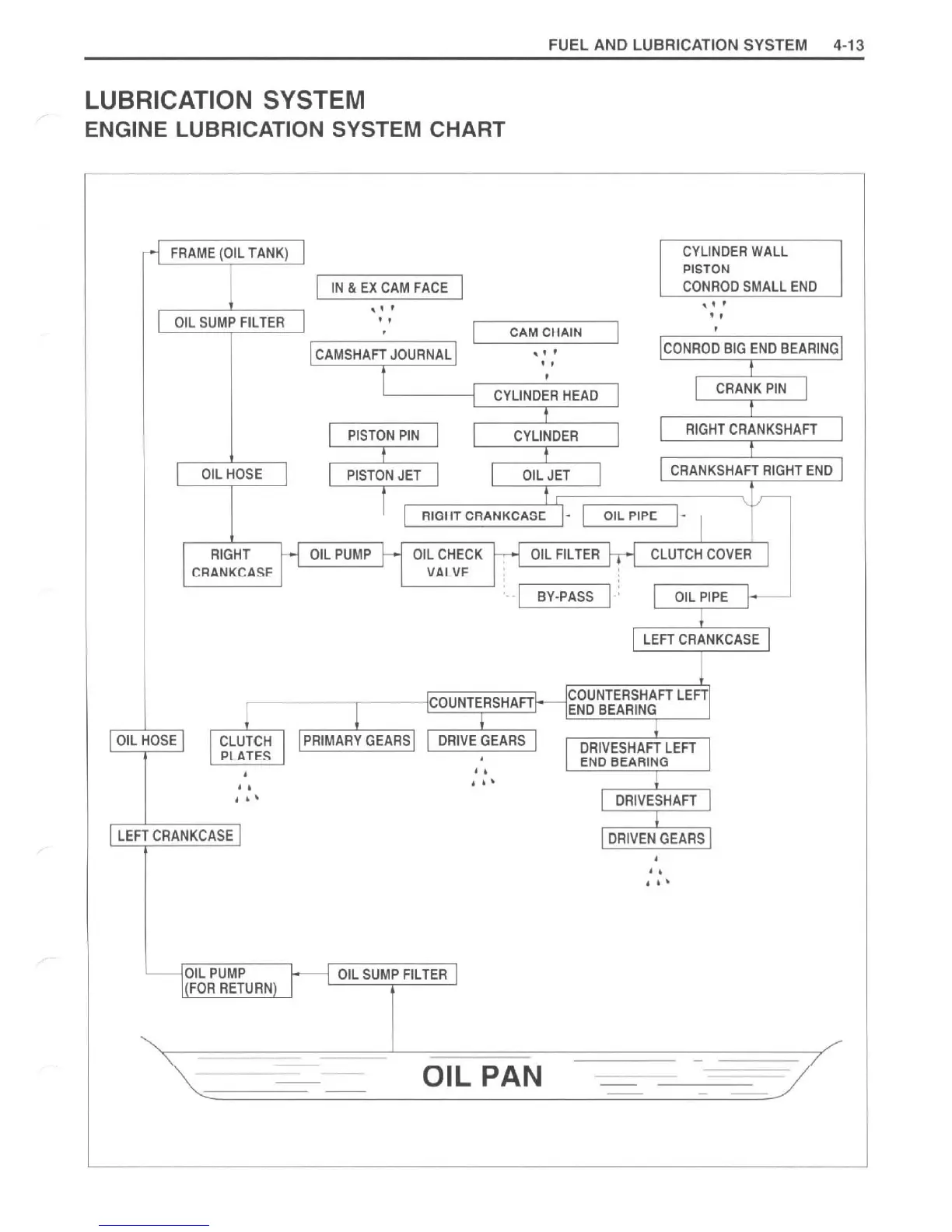

FUEL AND LUBRICATION SYSTEM 4-13
LUBRICATION SYSTEM
ENGINE LUBRICATION SYSTEM CHART
rl FRAME (OIL TANK) I
CYLINDER WALL
PISTON
I
IN & EX CAM FACE
I
CON ROD SMALL END
" .
" .
lOlL SUMP FI LTER
I
••
• •
.
I
CAM CIIAIN
I
•
I CAMSHAFT JOURNAL I
' ..
CONROD BIG END BEARING
. ,
t
1
,
CYLINDER HEAD
I
I
CRANK PIN I
t
t
I
PISTON PIN I
I
CYLINDER
I
RIGHT CRANKSHAFT
t t
!
I
OIL HOSE
I
PISTON JET I OIL JET
I
CRANKSHAFT RIGHT END
1
t
\. ~
RIG I IT CRANKCASC I-
I
OIL PIPC
1- 1
I RIGHT
H OIL PUMP f-
OIL CHECK --rl OIL FILTER CLUTCH COVER I
CRANKCASF VA L VF
: -- 1 BY-PASS I:
I OIL PIPE l-
I
I LEFT CRANKCASE I
J
COUNTERSHAFT
COUNTERSHAFT
LEFT I
I I
END BEARING
I
j
l OlL HOSE I
I CLUTCH
I PRIMARY GEARS I I DRIVE GEARS I
I DRIVESHAFT LEFT I
PIATFS
.
END BEARING
•
• •
• •
•••
j
••• I DRIVESHAFT I
j
I LEFT CRANKCASE I
I DRIVEN GEARS I
•
• •
• • •
OIL PUMP
OIL SUMP FILTER I
FOR RETURN )
"\;
OIL PAN
~
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
